Sensor, Camshaft Position: Installation: 2.4L

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Install camshaft position (CMP) sensor utilizing twisting motion. Make sure CMP sensor is fully seated. Do not drive CMP sensor into the bore with mounting screw. This may cause CMP sensor to be incorrectly seated causing a faulty signal or no signal at all.

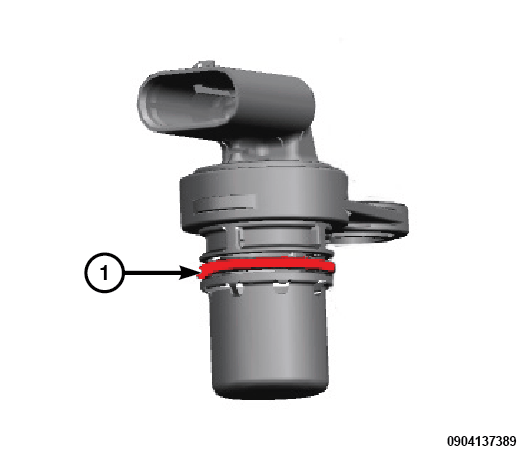

Lubricate the sensor O-ring (1) with clean engine oil.

Courtesy of CHRYSLER GROUP, LLC

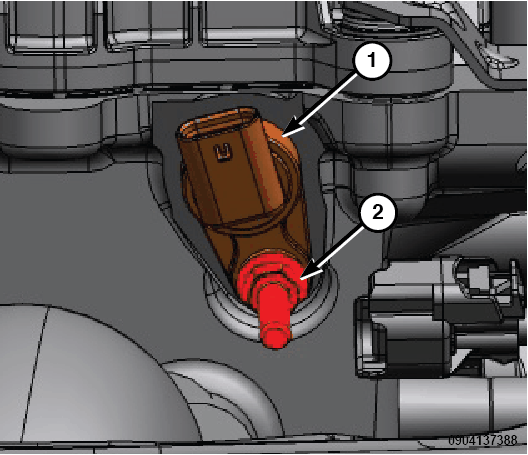

Install the CMP sensor (1) and tighten the stud bolt (2) to the proper specifications. .

Courtesy of CHRYSLER GROUP, LLC

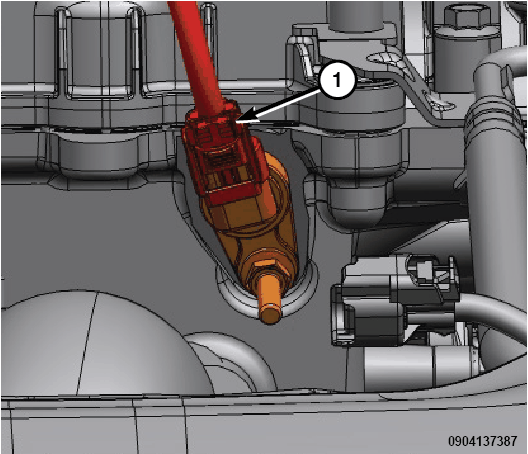

Connect the wiring harness connector (1) to the CMP sensor.

Courtesy of CHRYSLER GROUP, LLC

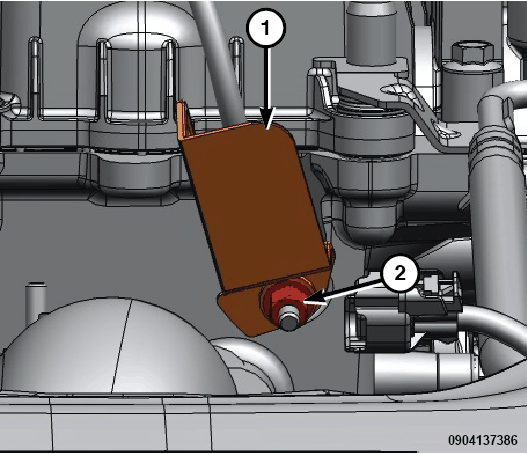

Install the CMP sensor heat shield (1) and tighten the nut (2) to the proper specifications. .
Install the engine cover.
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.

NOTE:

The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components. .
