Sensor, Coolant Temperature: Installation: 3.2L

Courtesy of CHRYSLER GROUP, LLC

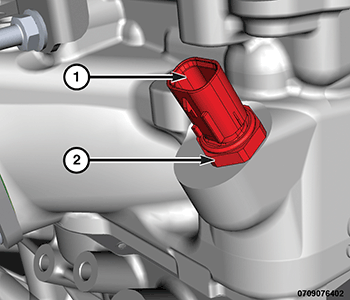

1. Install the coolant temperature sensor (2) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS - 3.2L  .
2. Connect the coolant temperature sensor wire harness connector (1).
3. Fill the cooling system. Refer to STANDARD PROCEDURE  .
4. Install the engine cover.
5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
