Radiator, Engine Cooling: Removal: 2.4L

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Drain the cooling system. Refer to COOLING/STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC

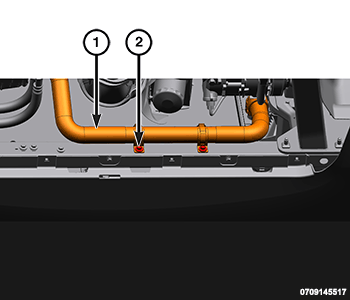

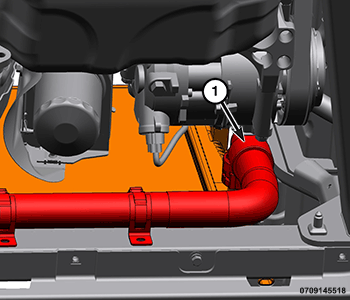

Remove the bolts (2) securing the lower radiator hose (1).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the quick-coupling and remove the lower radiator hose (1).
Remove the cooling fan. Refer to FAN, COOLING, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

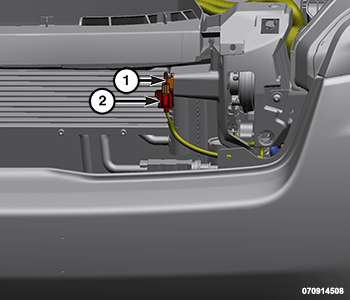

Disconnect the ambient air temperature sensor wire harness connector (2).
Remove the push-pin retainer and the ambient air temperature sensor (1).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The transmission oil cooler lines do not need to be disconnected.

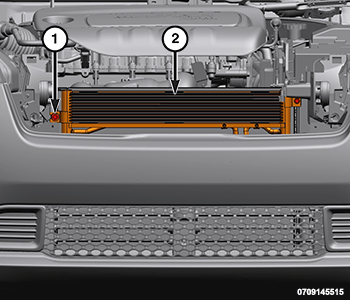

Remove the bolts (1) and position aside the transmission cooler (2).

Courtesy of CHRYSLER GROUP, LLC

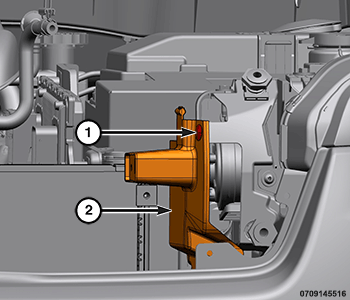

Remove the push-pin retainers (1) and the right side air deflectors (2).

Courtesy of CHRYSLER GROUP, LLC

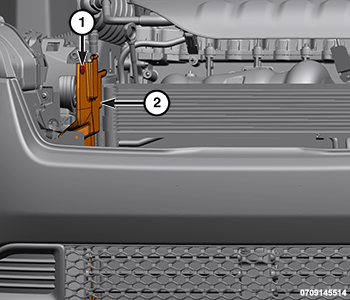

Remove the push-pin retainers (1) and the left side air deflectors (2).

Courtesy of CHRYSLER GROUP, LLC

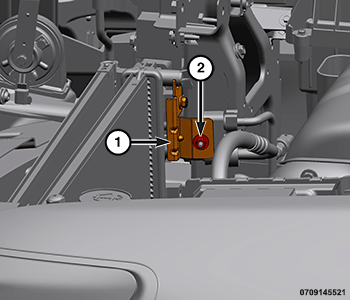

Remove the bolt (1) securing the A/C service port bracket to the condenser.

Courtesy of CHRYSLER GROUP, LLC
Remove the nut (2) securing the A/C discharge and liquid line junction block to the bracket (1).

Courtesy of CHRYSLER GROUP, LLC

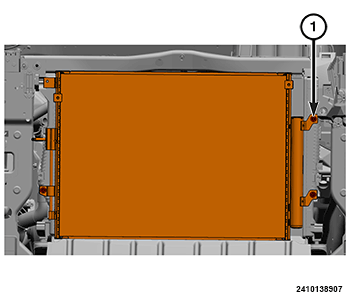

Remove the three bolts (1) securing the A/C condenser to the radiator and position aside.

Courtesy of CHRYSLER GROUP, LLC

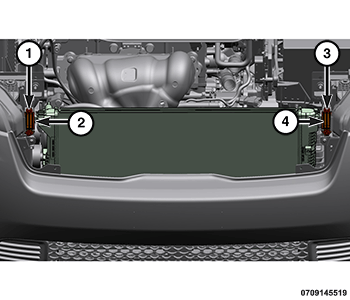

Remove the two bolts (1) and the upper left side radiator mount cover (2).
Remove the two bolts (3) and the upper right side radiator mount cover (4).

Courtesy of CHRYSLER GROUP, LLC

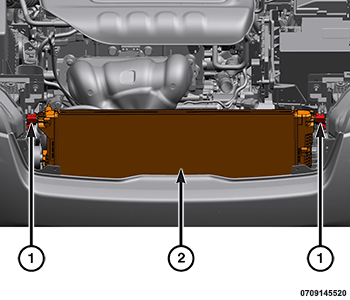

Pull the radiator forward releasing the isolators (1) from the mount and remove the radiator (2).
