Module-Steering Column Control C3 (Standard) Connector End View (D3816C)

Harness-Family: StrgWheelJumper

Color: BLACK

Gender: FEMALE

Part Number: 1318774-2

Part Description: Not Available

Connector No: D3816C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C3 Connector End View (Standard)
GCWD1079503Courtesy of CHRYSLER

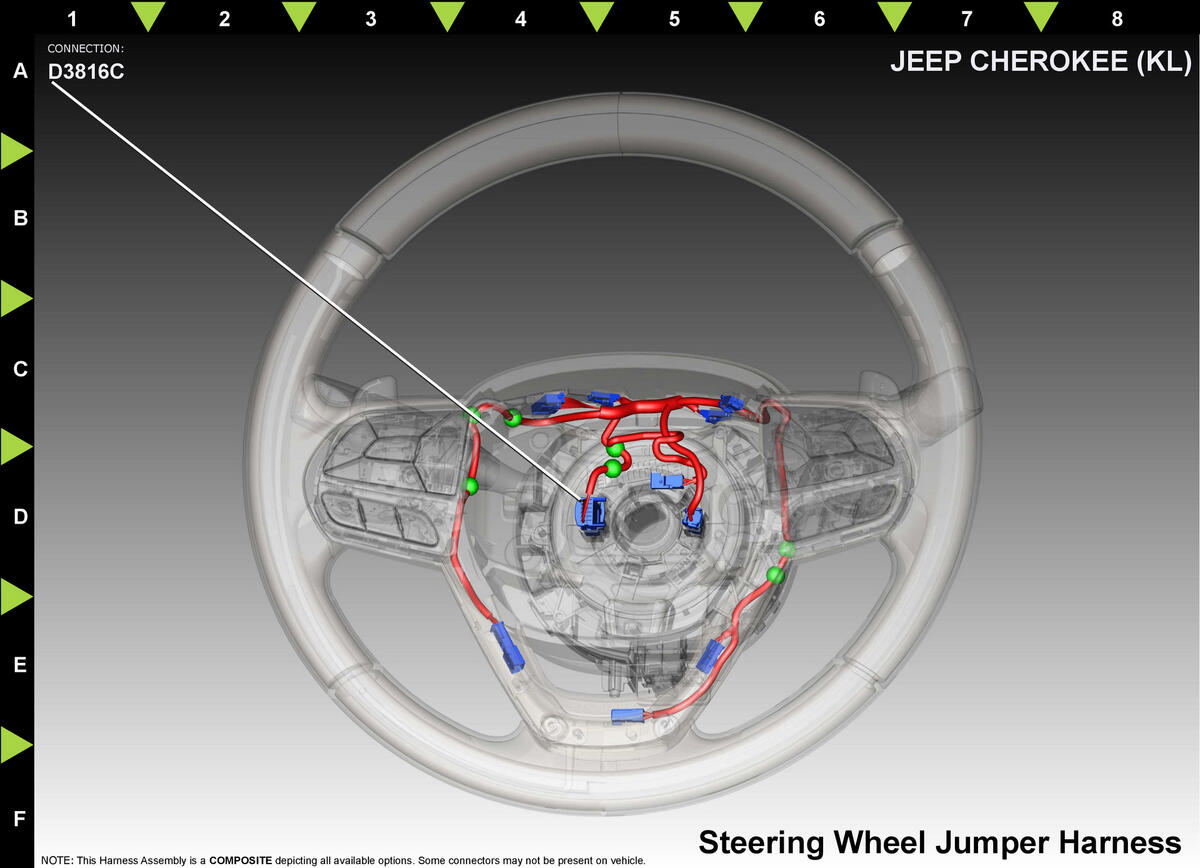

Fig 2: Module-Steering Column Control C3 Component Location (Standard)
GCWD1297820Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
7 A92 RD 0.22 FUSED B(+) N/A
8 T830 GN 0.22 PADDLE SHIFT SWITCH SIGNAL UPGRADE
9 X3 BU 0.22 HORN SWITCH SENSE N/A
10 D592 BK 0.22 LIN BUS N/A
11 Z92 BU 0.22 GROUND N/A
12 D594 BK 0.22 LIN BUS N/A
(1) Pins not listed are not used for this connector
