Module-Steering Column Control C5 (Standard) Connector End View (D3816H)

Harness-Family: Airbag

Color: NA

Gender: FEMALE

Part Number: HARDWIRED

Part Description: Not Available

Connector No: D3816H

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C5 Connector End View (Standard)

Courtesy of CHRYSLER

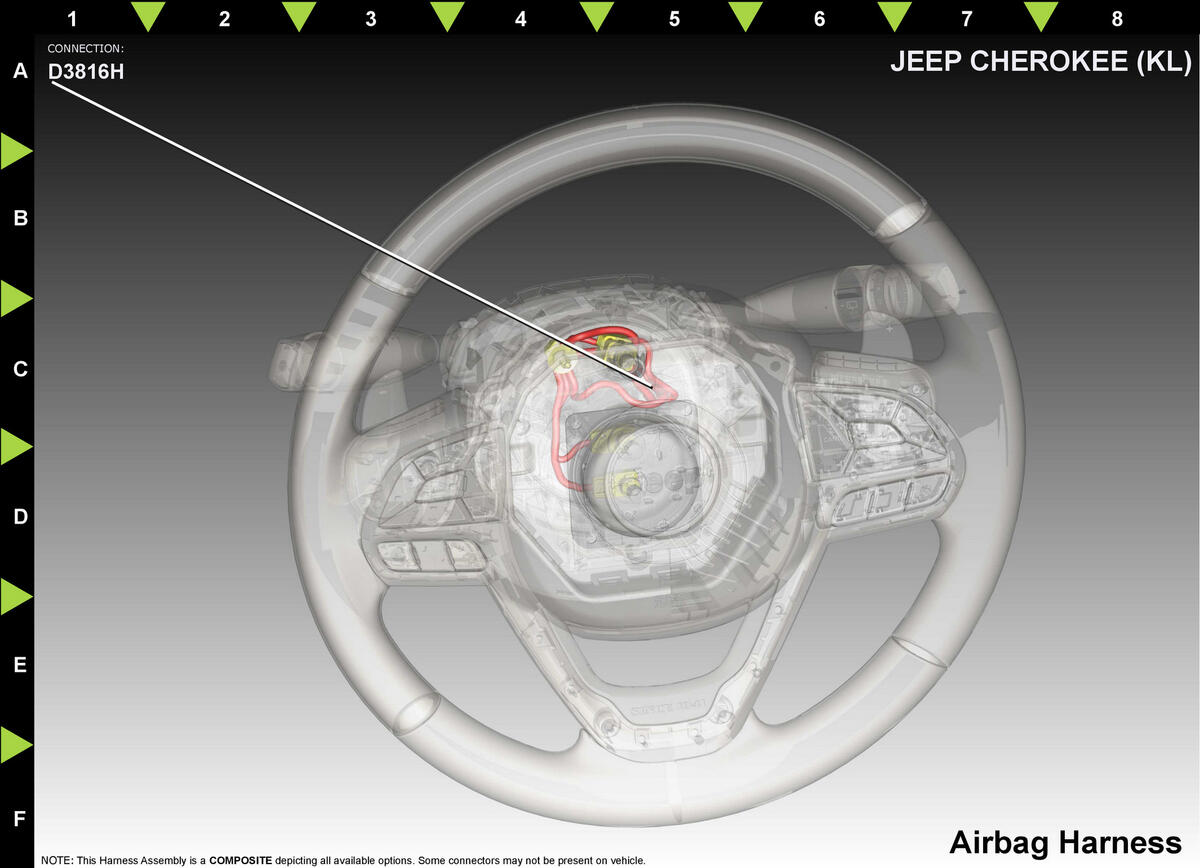

Fig 2: Module-Steering Column Control C5 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R43

GN/BK

0.50

DRIVER SQUIB 1 LINE 2

N/A

R45

GN/WH

0.50

DRIVER SQUIB 1 LINE 1

N/A

R61

GN/RD

0.50

DRIVER SQUIB 2 LINE 2

N/A

R63

GN/OG

0.50

DRIVER SQUIB 2 LINE 1

N/A

R67

DG/WH

0.50

DRIVER SQUIB 3 LINE 2

N/A

R69

0.50

DRIVER SQUIB 3 LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
