Pump-Rear Drive Module (Standard) Connector End View (D2329B)

Harness-Family: Under_Body

Color: BLACK

Gender: FEMALE

Part Number: 15326677

Part Description: Not Available

Connector No: D2329B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Pump-Rear Drive Module Connector End View (Standard)
GCWD1079469Courtesy of CHRYSLER

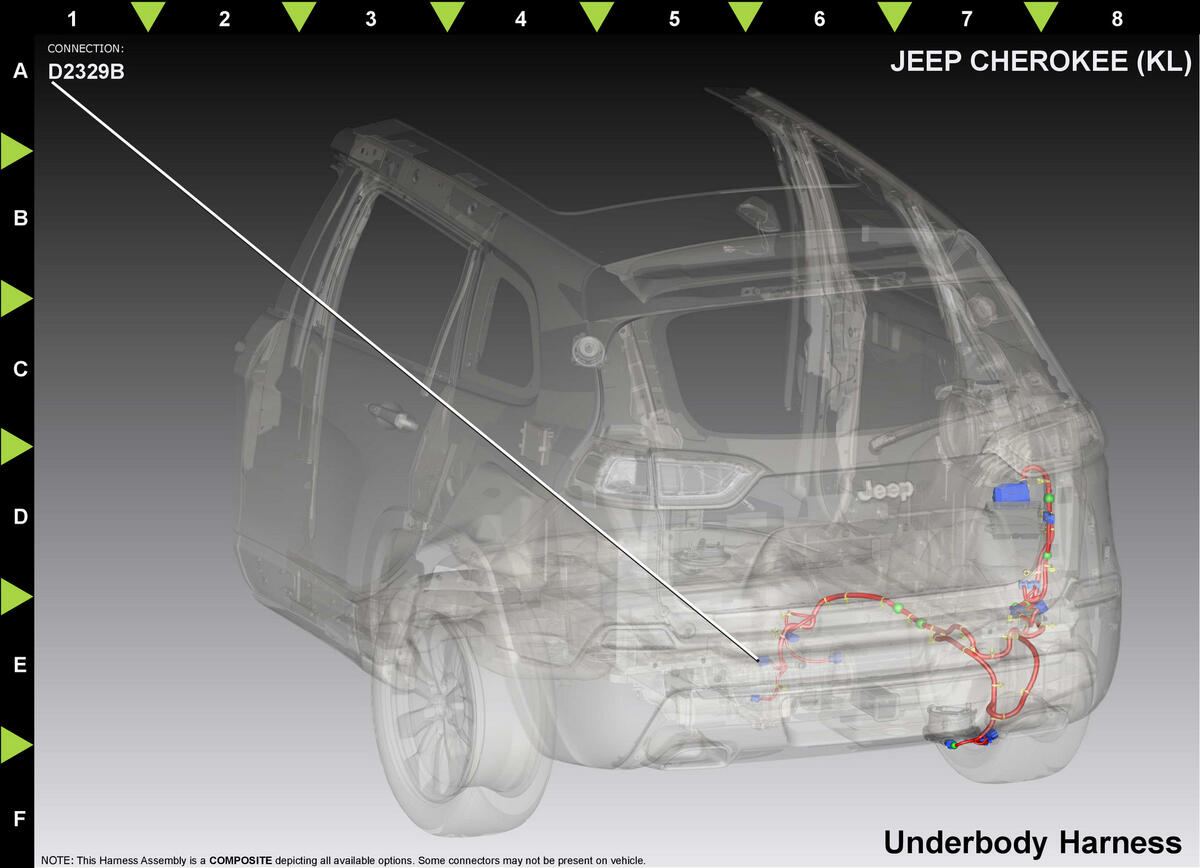

Fig 2: Pump-Rear Drive Module Component Location (Standard)
GCWD1297912Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A T315 YE/BN 12 PUMP MOTOR CONTROL A N/A
B T316 YE/GY 12 PUMP MOTOR CONTROL B N/A
(1) Pins not listed are not used for this connector
