Battery System - 2.0L
 Courtesy of CHRYSLER GROUP, LLC
|
TORQUE SPECIFICATIONS - BATTERY SYSTEM (2.0L)

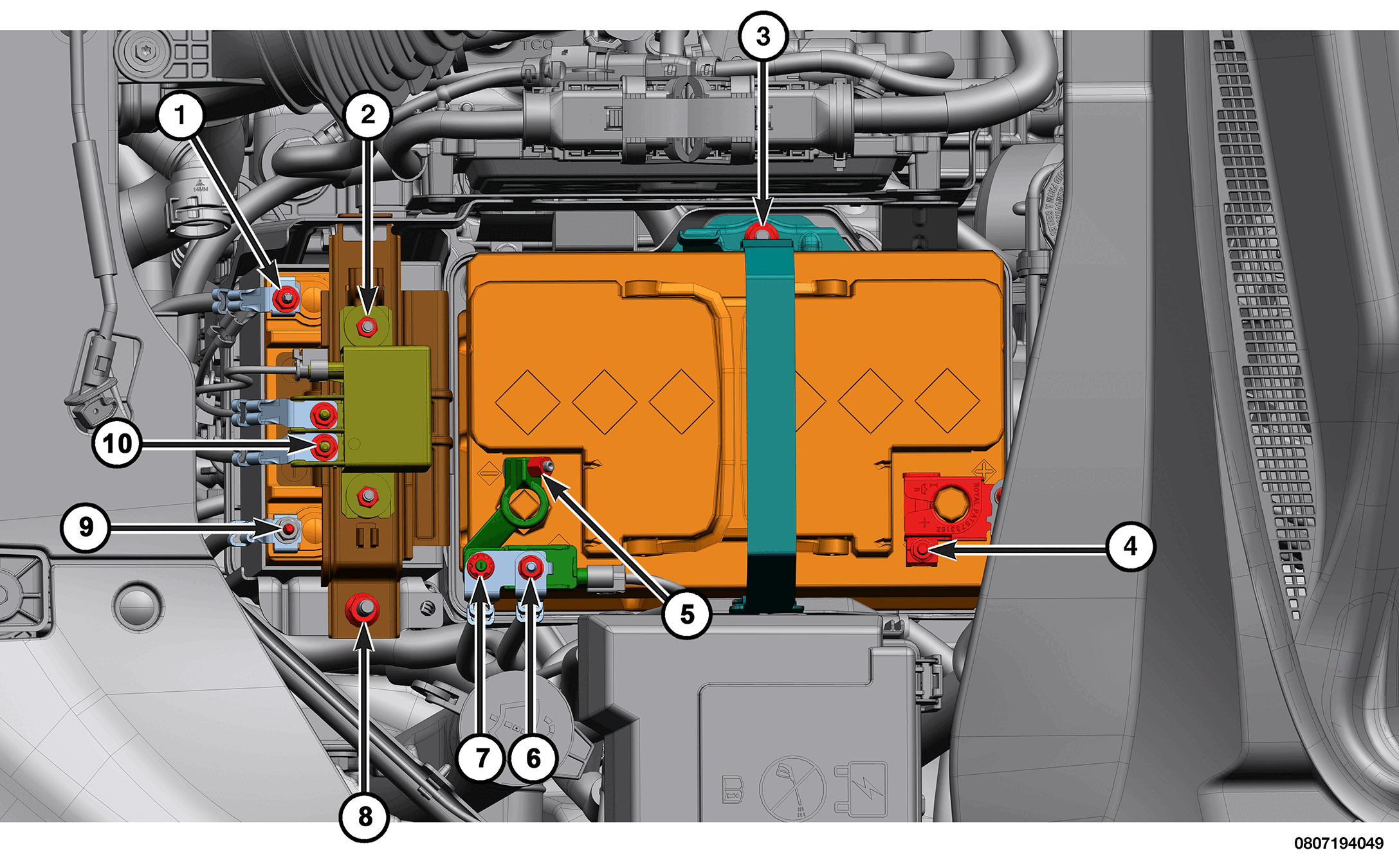

| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |
| 1 |
Auxiliary Battery Cable M6 Nut |
5 N.m (44 In. Lbs.) |
- |
| - |
Auxiliary Battery Cable M6 Bolts |
7 N.m (62 In. Lbs.) |
- |
| 2 |
PCR Relay to Bracket Nuts |
6 N.m (53 In. Lbs.) |
- |
| 3 |
Battery Hold Down Bracket Nut |
15 N.m (11 Ft. Lbs.) |
- |
| 4 |
Battery Positive Cable |
9 N.m (80 In. Lbs.) |
- |
| 5 |
Intelligent Battery Sensor (IBS) M6 Nut To Negative Battery Post |
5 N.m (44 In. Lbs.) |
- |
| 6 |
M6 Nut Negative Cable To The IBS |
11 N.m (8 Ft. Lbs.) |
- |
| 7 |
Negative Main Battery M6 Nut From Auxiliary Battery |
8 N.m (71 In. Lbs.) |
- |
| 8 |
Auxiliary Battery Hold Down Bracket Nut |
15 N.m (11 Ft. Lbs.) |
- |
| 9 |
Auxiliary Battery Double Ended Torx Stud |
6 N.m (53 In. Lbs.) |
- |
| 10 |
Power Reduction Relay (PCR) B+ Terminal Nuts |
11 N.m (8 Ft. Lbs.) |
- |
| - |
Engine Ground to Engine Block |
12 N.m (9 Ft. Lbs.) |
- |

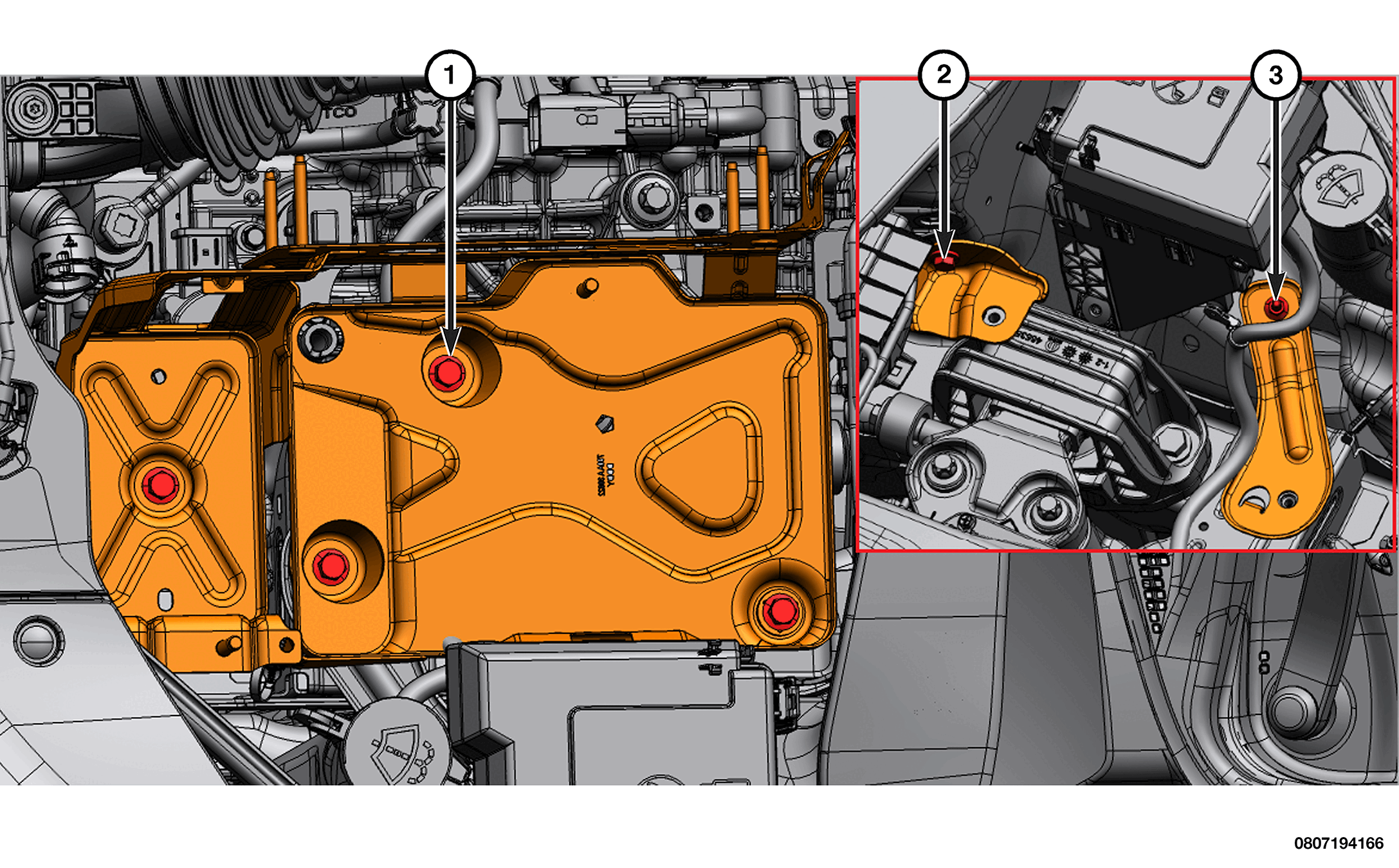

| 1 |
Battery Tray Bolts |
7 N.m (62 In. Lbs.) |
Do not reuse these fasteners. If removed, a NEW
fastener must be installed and tightened to specifications. |
| 2 |
Battery Tray Bracket Bolt |
5 N.m (44 In. Lbs.) |
Do not reuse these fasteners. If removed, a NEW
fastener must be installed and tightened to specifications. |
| 3 |
Battery Tray Bracket Nuts |
5 N.m (44 In. Lbs.) |
Do not reuse these fasteners. If removed, a NEW
fastener must be installed and tightened to specifications. |
| - |
PCR To Ground |
11 N.m (8 Ft. Lbs.) |
- |
| - |
For RHD only: Ground To PCR Bracket |
11 N.m (8 Ft. Lbs.) |
- |
| - |
Battery Ground To Body |
8 N.m (71 In. Lbs.) |
- |
| - |
Battery Ground To Frame |
8 N.m (71 In. Lbs.) |
- |
| - |
Battery Negative Cable |
6 N.m (53 In. Lbs.) |
- |
| - |
Battery Bracket Bolt |
5 N.m (44 In. Lbs.) |
- |
| - |
Power Distribution Center (PDC) To Wiring Connector |
8 N.m (71 In. Lbs.) |
- |
