Charging - 2.0L

Courtesy of CHRYSLER GROUP, LLC

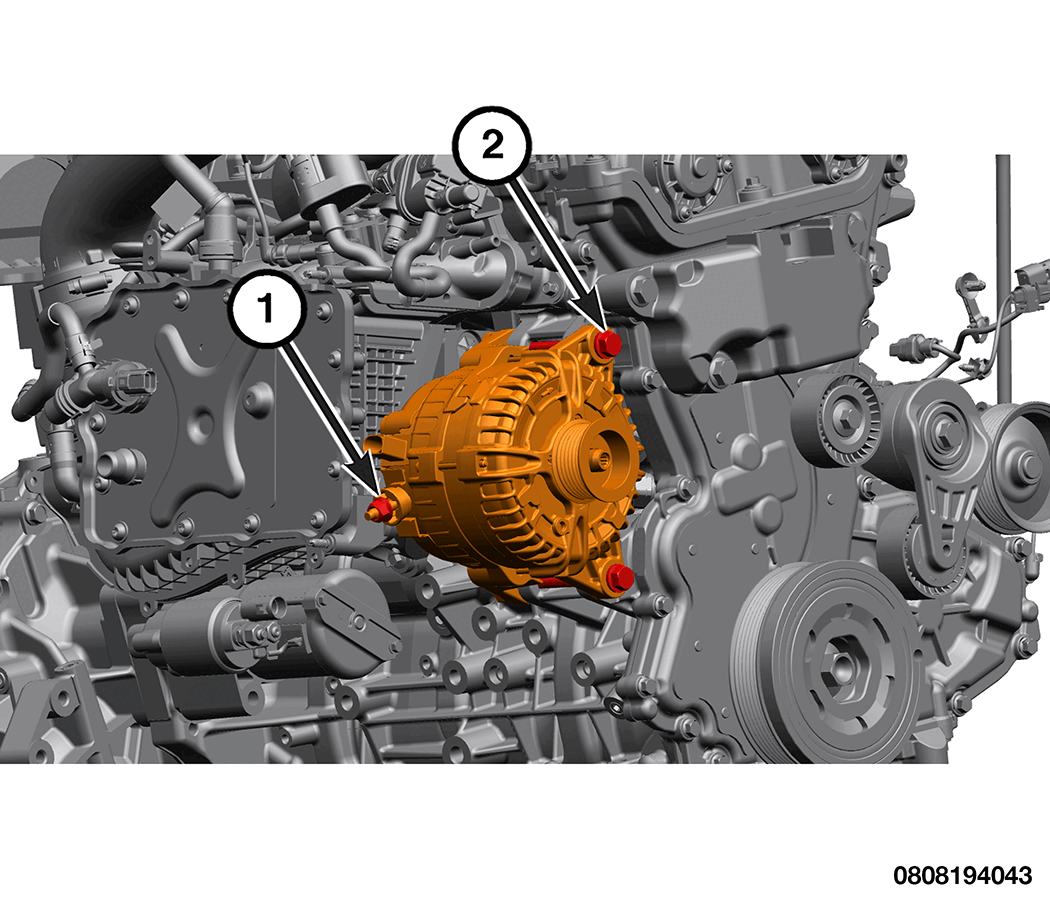

TORQUE SPECIFICATIONS - CHARGING (2.0L)

CALLOUT	DESCRIPTION	SPECIFICATIONS	COMMENT
1	Generator B+ Cable Nut	15 N.m (11 Ft. Lbs.)	-
2	Generator Bolts	48 N.m (35 Ft. Lbs.)	-
