Removal And Installation: Installation
NOTE:

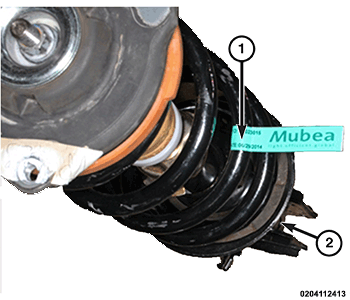

When installing the coil spring on to the strut, align the coil spring tag (1) to the clevis (2).
NOTE:

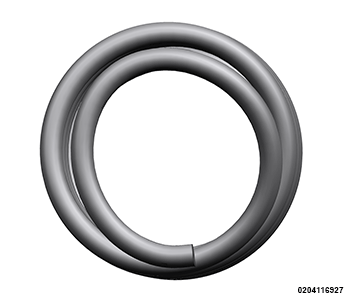

Some springs will have a banana shape to them and it is imperative that the lower end coil butts up against the lower rubber isolator seat.

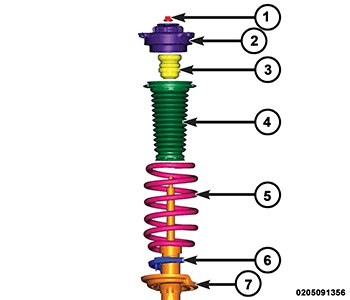

- Using a Brannick 7600 spring compressor or equivalent compress the spring (5).
- Install the lower spring isolator (6) on the strut (7).
- Position the strut (7) into the compressed spring (5).
- Install the boot (4).
- Install the jounce bumper (3).
- Install the strut upper mount (2).
- Install the strut rod nut (1).
- Use (special tool #2027800020, Kit, Remover - Installer Shock / Strut) to tighten the strut rod nut (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install the front strut. Refer to STRUT, SUSPENSION, ASSEMBLY, REMOVAL AND INSTALLATION .
- Check for proper vehicle curb height. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
- Perform the wheel alignment procedure. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
