Assembly-Power Distribution Center-Rear C2 (Standard) Connector End View (D6631B)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: 0300390/10

Part Description: Not Available

Connector No: D6631B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

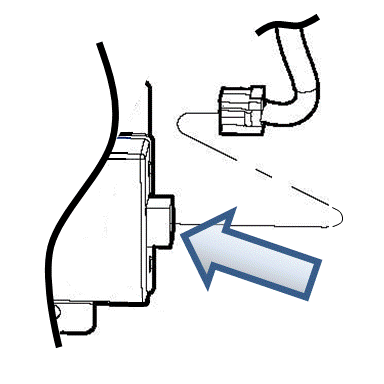

Fig 1: Assembly-Power Distribution Center-Rear C2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Assembly-Power Distribution Center-Rear C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A906

RD/GY

4.0

FUSED B(+)

N/A

A111

DG/RD

2.0

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
