Starting - 2.0L
 Courtesy of CHRYSLER GROUP, LLC
|

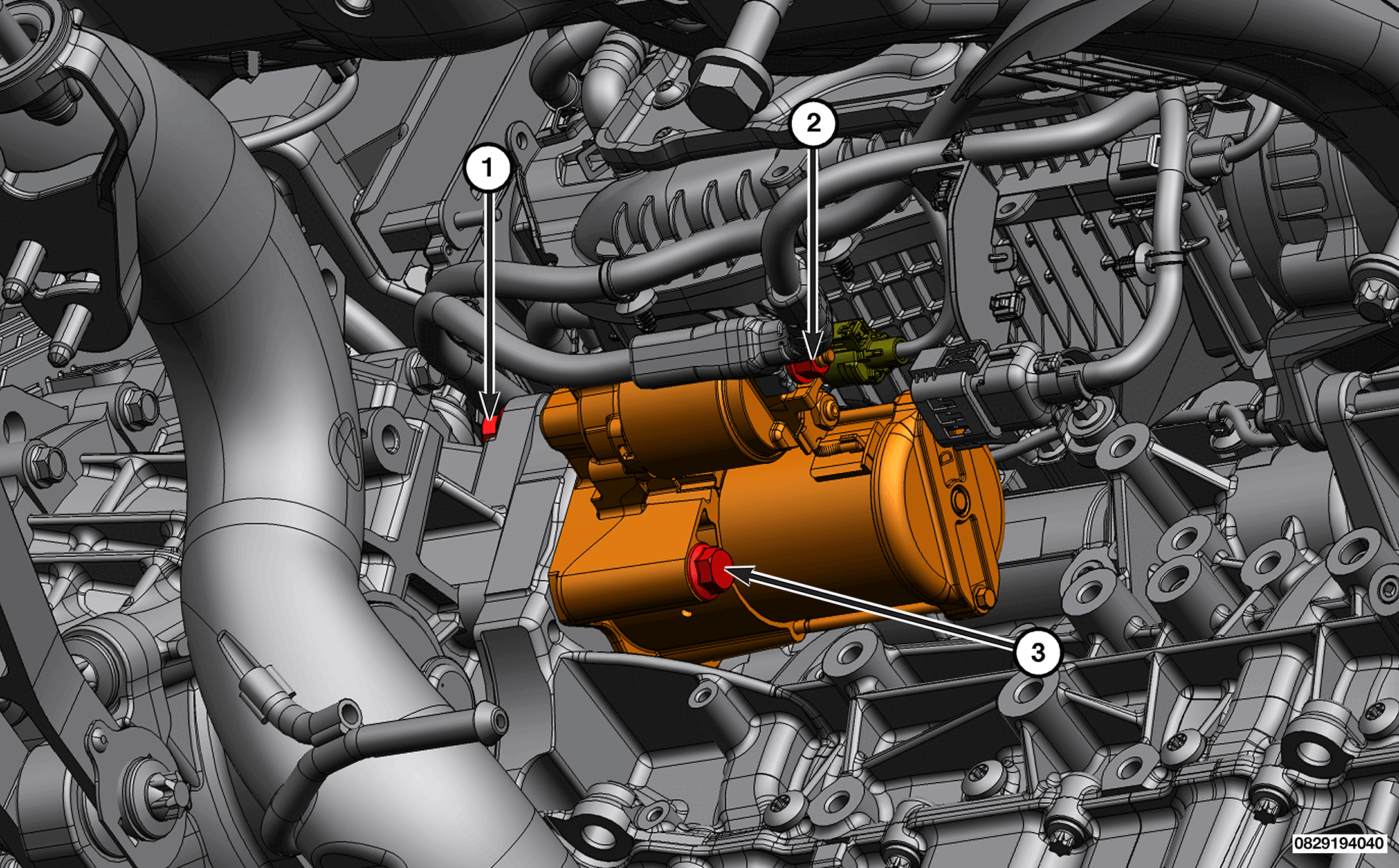

TORQUE SPECIFICATIONS - STARTING (2.0L)
| CALLOUT |
DESCRIPTION |
SPECIFICATIONS |
COMMENT |
| 1 |
Transmission to Starter Bolt |
51 N.m (38 Ft. Lbs.) |
- |
| 2 |
Starter B+ Cable Nut |
11 N.m (8 Ft. Lbs.) |
- |
| 3 |
Starter to Engine Block Bolts |
26 N.m (19 Ft. Lbs.) |
- |
