Module-Driver Detection (Standard) Connector End View (D3288A)

Harness-Family: Steering_Wheel

Color: NATURAL

Gender: FEMALE

Part Number: PARP-04V

Part Description: Not Available

Connector No: D3288A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

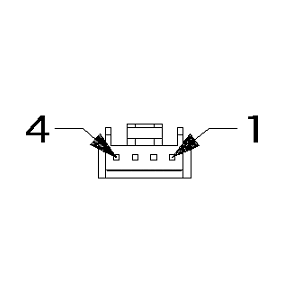

Fig 1: Module-Driver Detection Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Driver Detection Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D404

WH/BN

0.35

LIN BUS

N/A

⁽¹⁾	Pins not listed are not used for this connector
