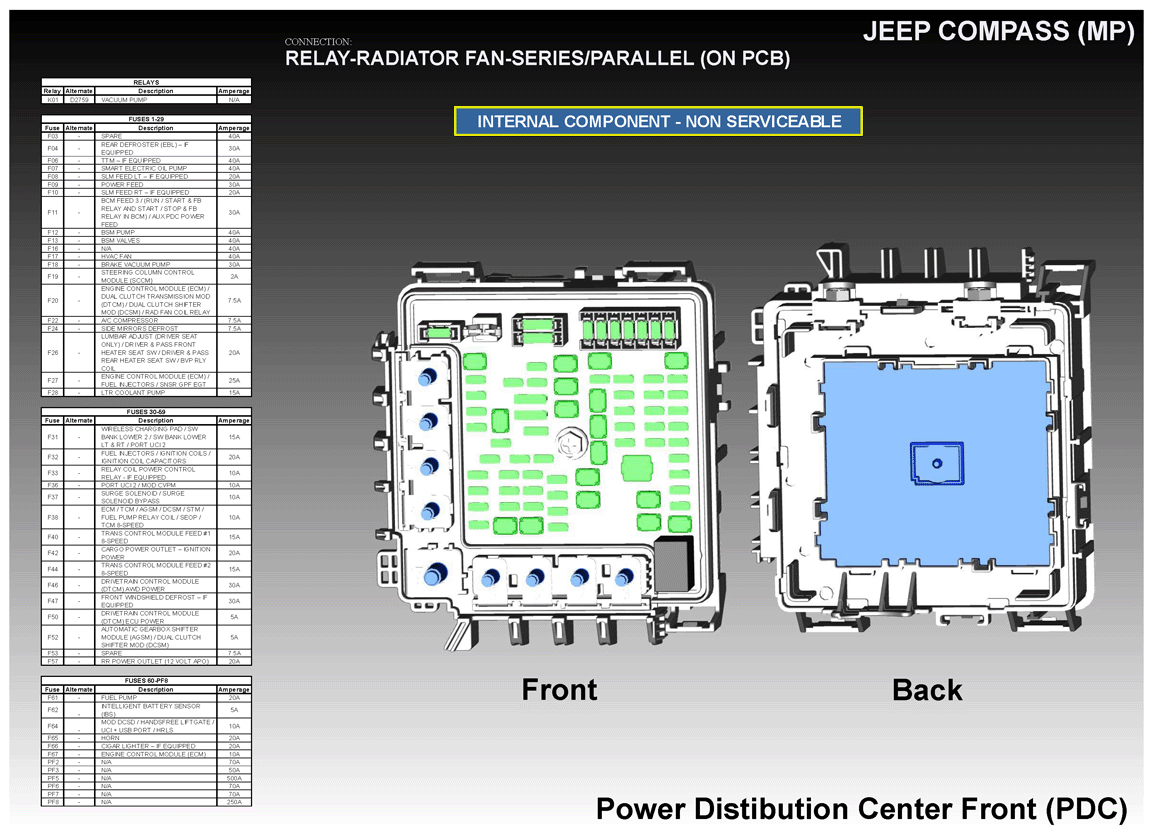

Relay-Radiator Fan-Series/Parallel (On PCB) (Standard) Connector End View (D838A)
Harness-Family: PDC_Front
Color: NA
Gender: MALE
Part Number: Relay_Micro
Part Description: Not Available
Connector No: D838A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 30 | A908 | INTERNAL | NA | FUSED B(+) | N/A | ||
| 86 | K175 | INTERNAL | NA | RAD FAN CONTROL | N/A | ||
| 87 | N29 | INTERNAL | NA | RADIATOR FAN ENABLE SIGNAL | N/A | ||
|
|||||||
