P0929-00-Gear Shift Lock Solenoid-Actuator Control Circuit A Range-Performance
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

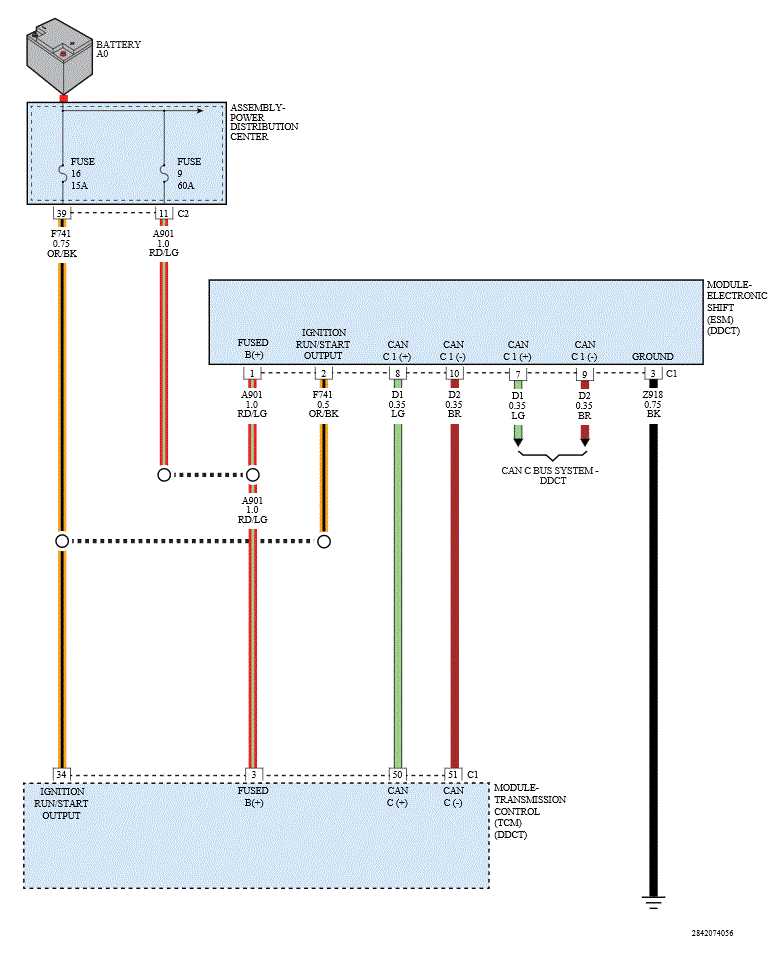

P0929-00-Gear Shift Lock Solenoid-Actuator Control Circuit A Range-Performance: Notes
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
