Long Term Evolution 2 (LTE2) Antenna

Courtesy of CHRYSLER GROUP, LLC

The second cellular telephone antenna is the LTE2 antenna and is used for sending and receiving cellular telephone signals and data. The signals and data are supplied to the radio and telematics modules.

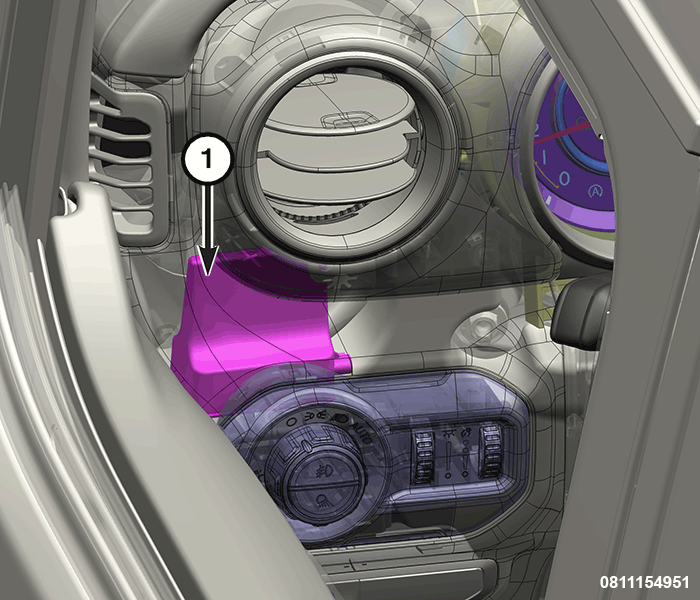

The LTE2 antenna is mounted in the instrument panel, behind the headlamp switch. The use of two LTE antennas is for the purpose of increasing data upload and download speeds.

The LTE2 antenna has an internal 10 kilohm resistor to set a Diagnostic Trouble Code (DTC) in the module to which it is connected if the antenna cable or LTE2 antenna is disconnected from that module.
