Front Heat Shield
WARNING: This page is about a different variant/trim than selected.
REMOVAL
- Remove the Diesel Particulate Filter (DPF). Refer to FILTER, DIESEL PARTICULATE, REMOVAL AND INSTALLATION .

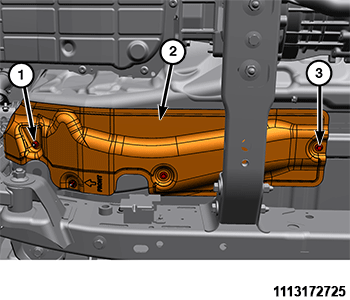

1 - Front Heat Shield Nut 2 - Front Heat Shield 3 - Front Heat Shield Nut - Remove the front heat shield nuts and the front heat shield.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
- Install the front heat shield and securely tighten the front heat shield nuts.
