Removal And Installation: Installation
- Install a new seal on the tank.
- Install the fuel pump assembly, taking care to match the references (1a), (1b) and (1c) indicated in the figure.
- Tighten the fuel pump assembly lock nut.
- Using the hydraulic lift, put the fuel tank into position.
- Engage the fuel delivery pipe with the retaining clips.
- Connect the quick coupling of the vapor hose from the fuel tank to the canister.

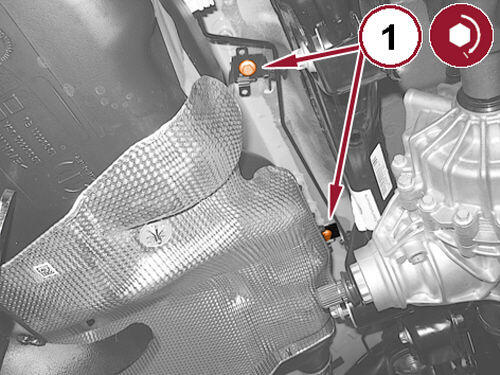

- Install the rear support bracket bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.

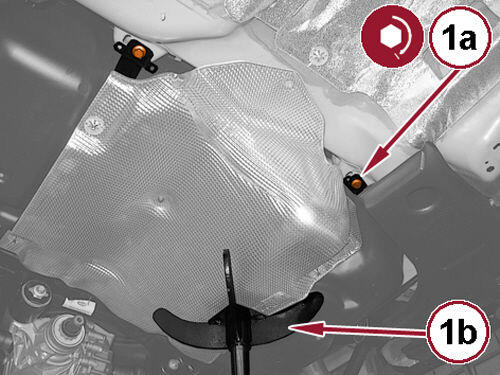

- Install the front support bracket bolts (1a) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Remove the hydraulic lift (1b).
- Engage the right rear brake lines and close the retaining clips.
- Engage the rear brake lines and close the retaining clips.
- Install the toothed washer securing the heat shield to the body.
- Engage the fuel vapor hose with the retaining clips.
- Connect the hose to the fuel fill tube and tighten the clamp.
- Connect the quick coupling of the vapor pipe.
- Connect the quick coupling of the fuel delivery pipe.
- Connect the wire harness connector to the electric fuel pump.
- Install the access covers for the fuel pump and securely tighten the screws.
- Install the rear seat cushion. Refer to SEAT CUSHION, REMOVAL AND INSTALLATION .
- Install the right side belly pan. Refer to BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
- Install the propeller shaft assembly. Refer to DRIVESHAFT, REMOVAL AND INSTALLATION .
- Install the muffler assembly. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
