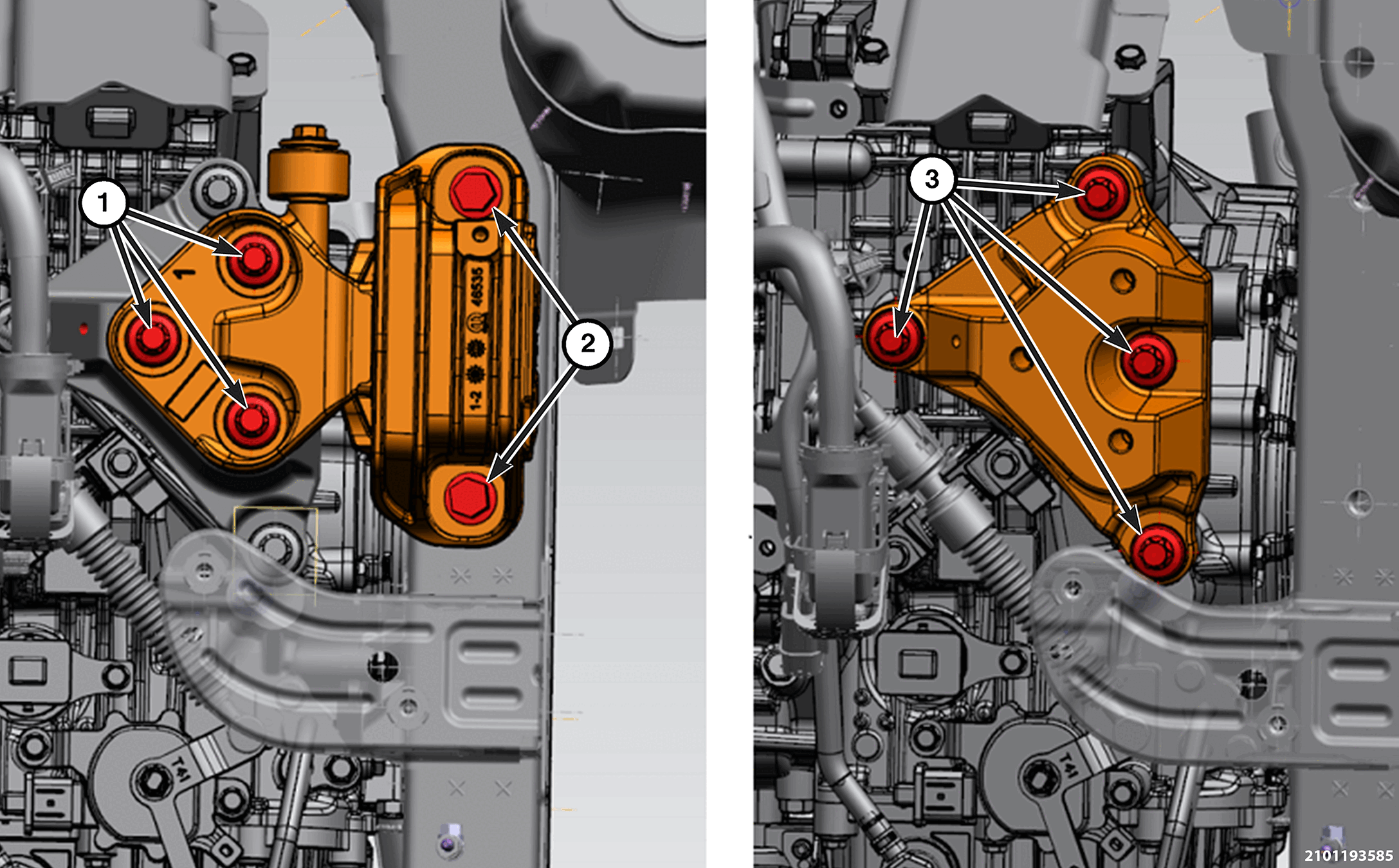

Transmission Mount

Courtesy of CHRYSLER GROUP, LLC

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Transmission Isolator to Transmission Adaptor Bolts	40 N.m + 52° (30 Ft. Lbs. + 52°)	-
2	Transmission Isolator to Frame Bolts	100 N.m (74 Ft. Lbs.)	-
3	Transmission Adaptor To Transmission Bolts	40 N.m + 52° (30 Ft. Lbs. + 52°)	-
