Diagnostic Test

TESTING CAN BUS USING THE MOPAR SCOPE

For a complete CAN IHS BUS SYSTEM (if equipped) wiring diagram, refer to the appropriate System Wiring Diagram  .

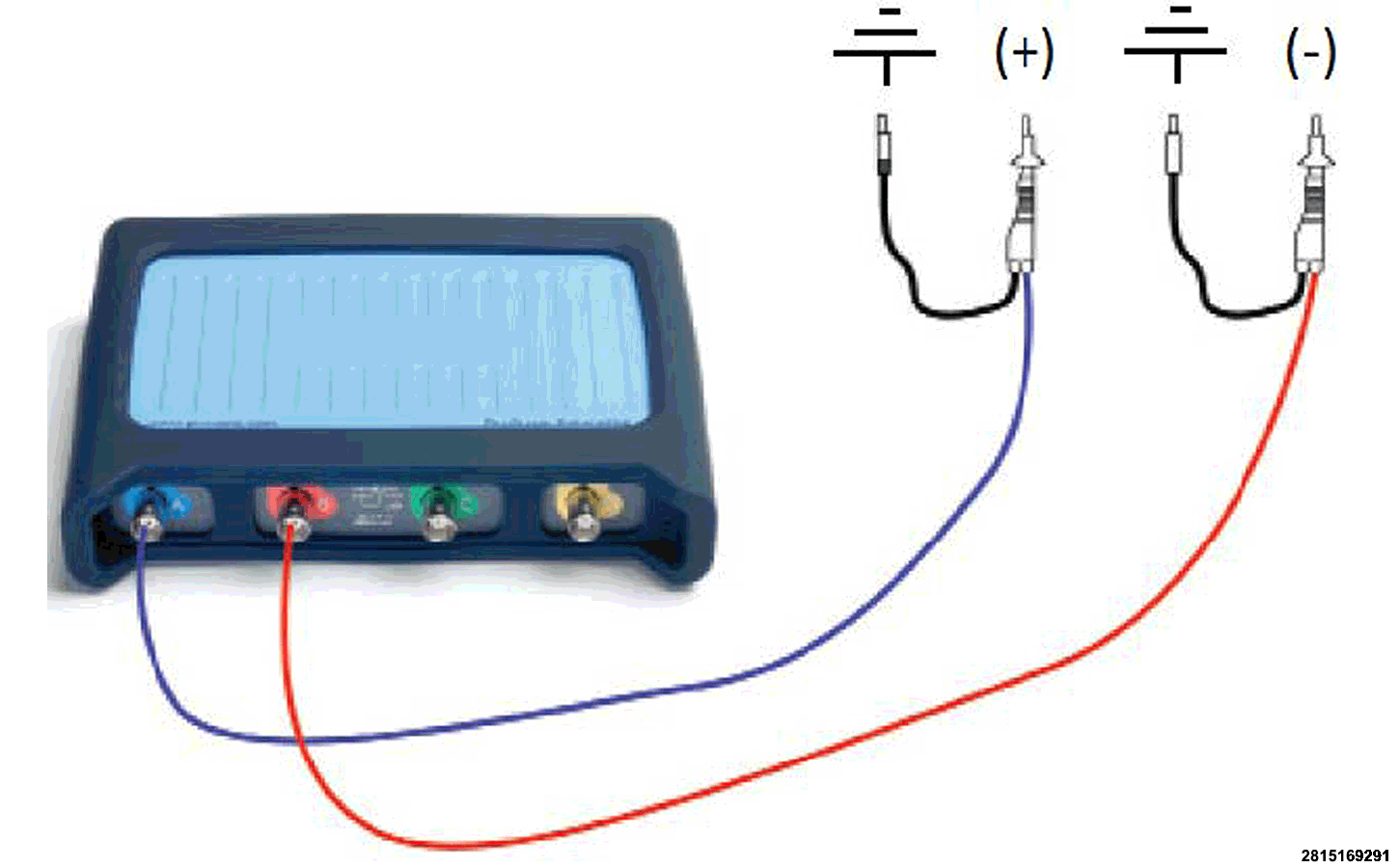

1. Connect the black pin for each test lead to Chassis ground. Connect the blue lead to CAN (+) and the red lead to CAN (-) for the circuits to be tested.

   Courtesy of CHRYSLER GROUP, LLC

2. Start the Mopar Scope.
3. Turn the ignition on.
   NOTE:

   When connected to the vehicle harness correctly, the LEDs on the breakout box will light up to indicate that there is activity on the bus.

4. A waveform should appear.

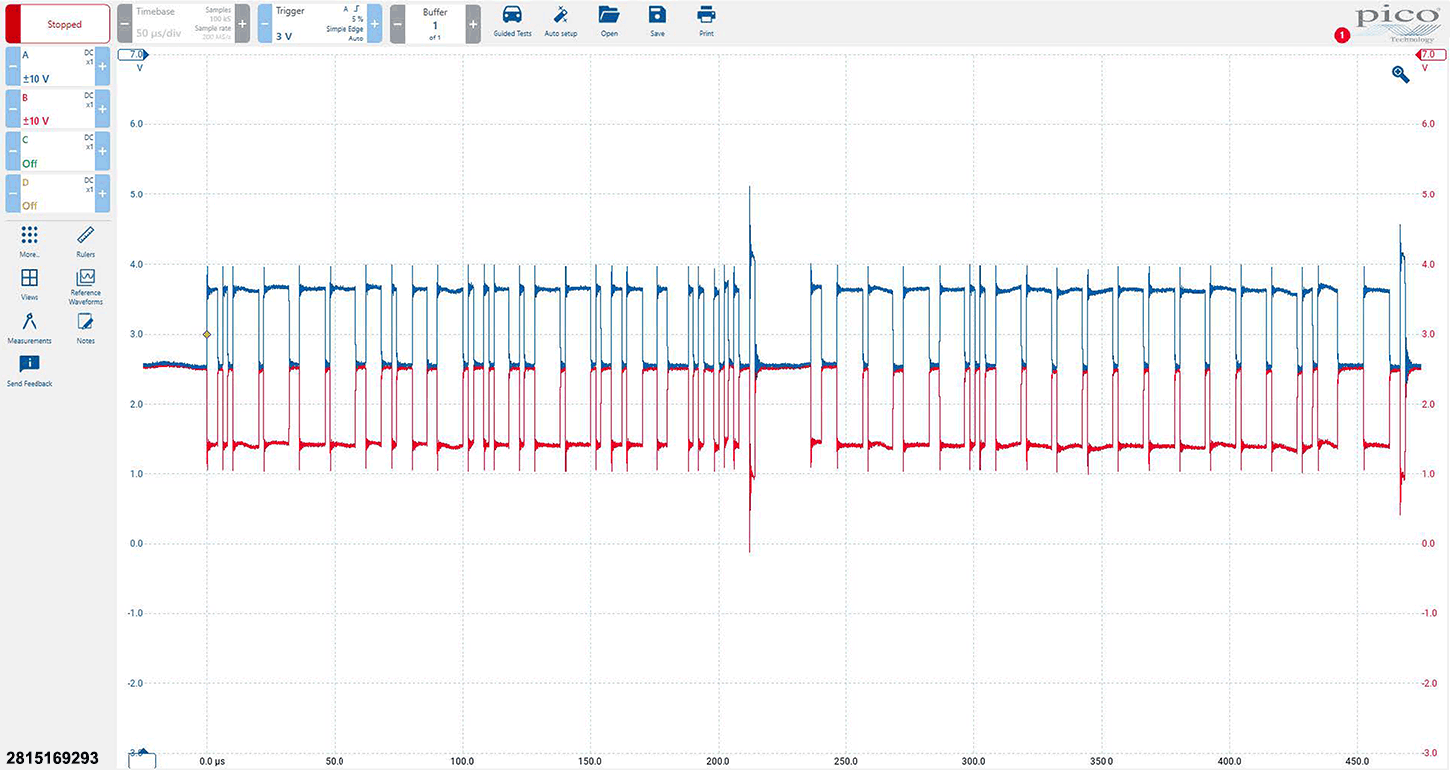

   The image below is of a normal CAN bus waveform using the Mopar Scope.

   DESCRIPTION	MEASUREMENT
   CHANNEL A	10 volts
   CHANNEL B	10 volts
   TIME BASE	50 μ s/div [microseconds / division control]
   ZOOM / VIEW	X1 - HORIZONTAL & VERTICAL

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   The waveform should reveal that data is being exchanged continuously along the CAN bus and the peak voltages are correct.

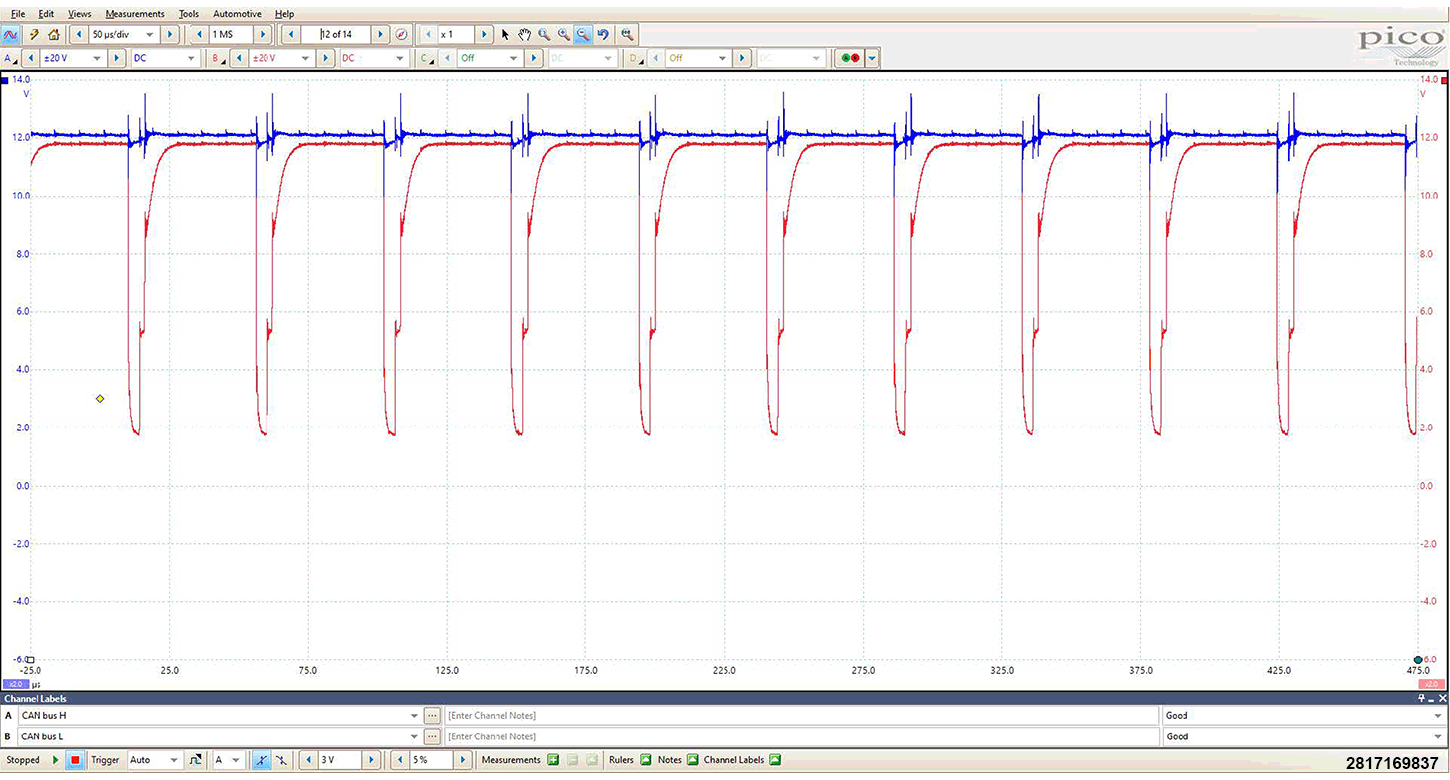

5. Determine the type of CAN IHS waveform fault the vehicle presently has from below:

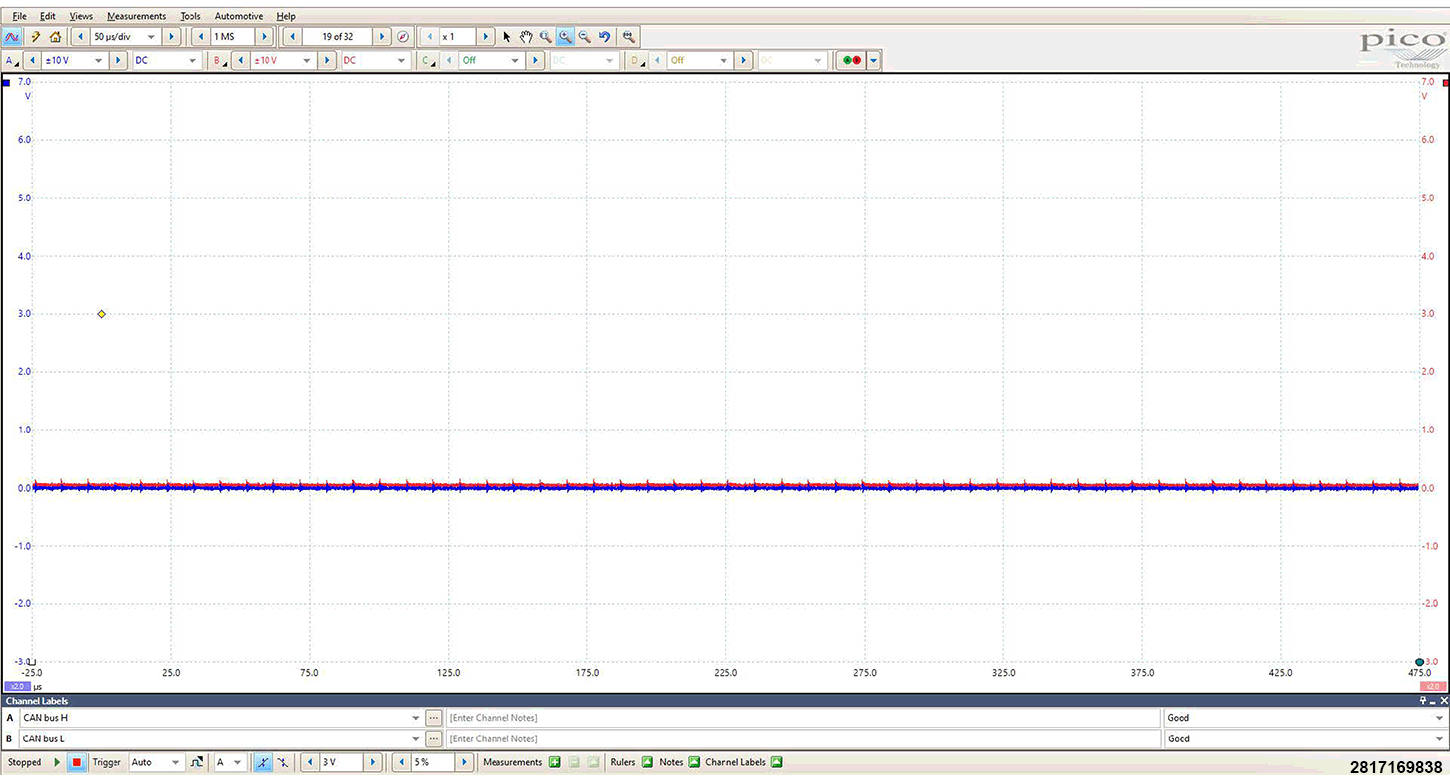

   • (+) Short To Ground

     Courtesy of CHRYSLER GROUP, LLC

   • (-) Short To Ground

     Courtesy of CHRYSLER GROUP, LLC

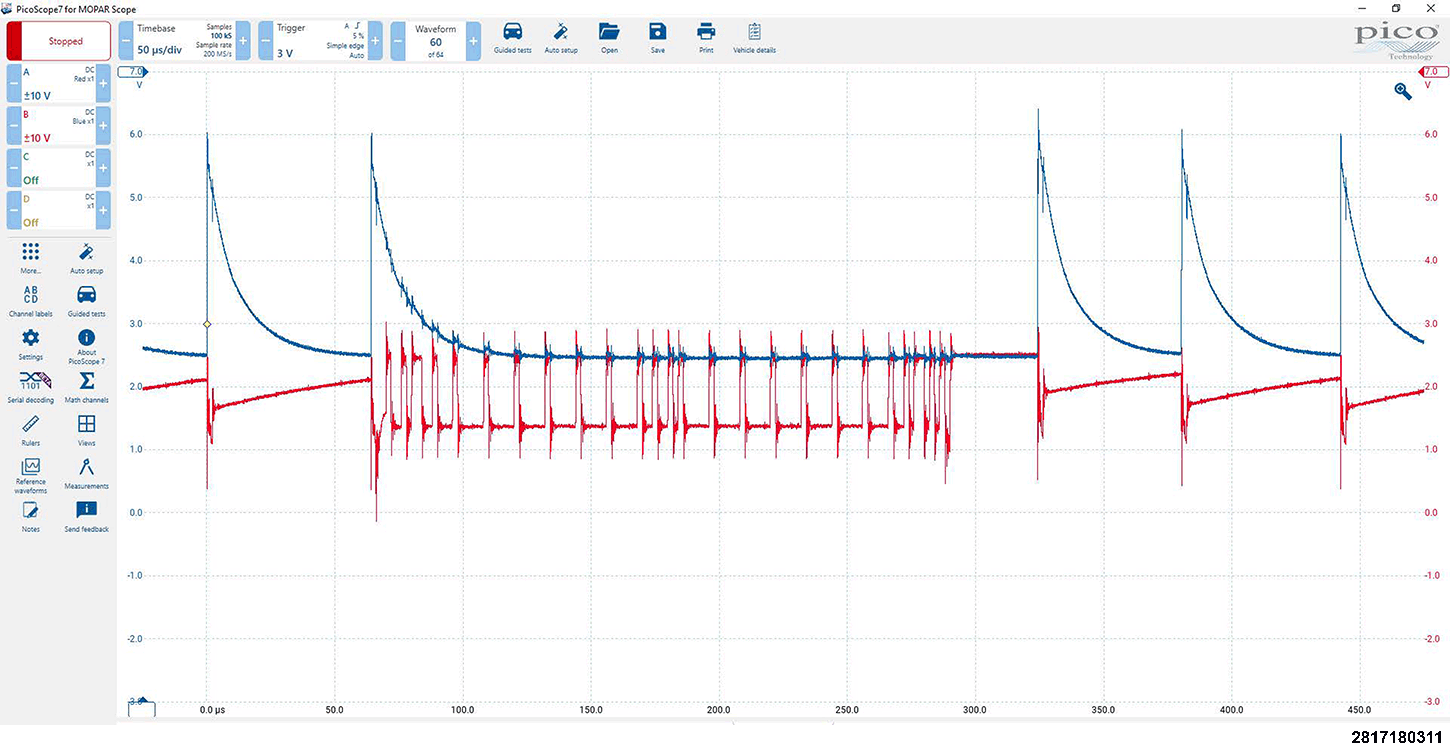

   • (+) Short To Voltage
     NOTE:

     Channel A and B voltage measurements taken at the 20 V range, measurements taken at 10 V range would display a Channel overrange  message.

     Courtesy of CHRYSLER GROUP, LLC

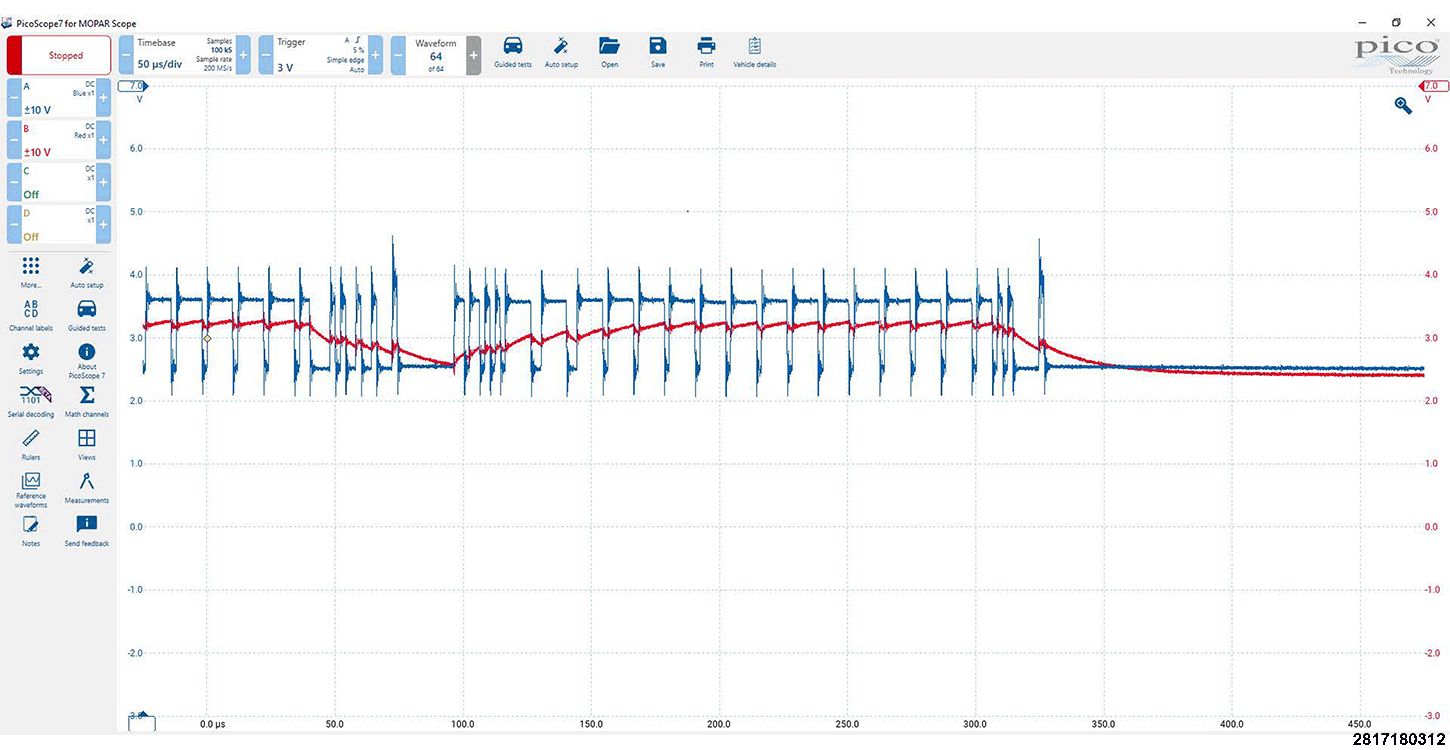

   • (-) Short To Voltage
     NOTE:

     Channel A and B voltage measurements taken at the 20 V range, measurements taken at 10 V range would display a Channel overrange  message.

     Courtesy of CHRYSLER GROUP, LLC

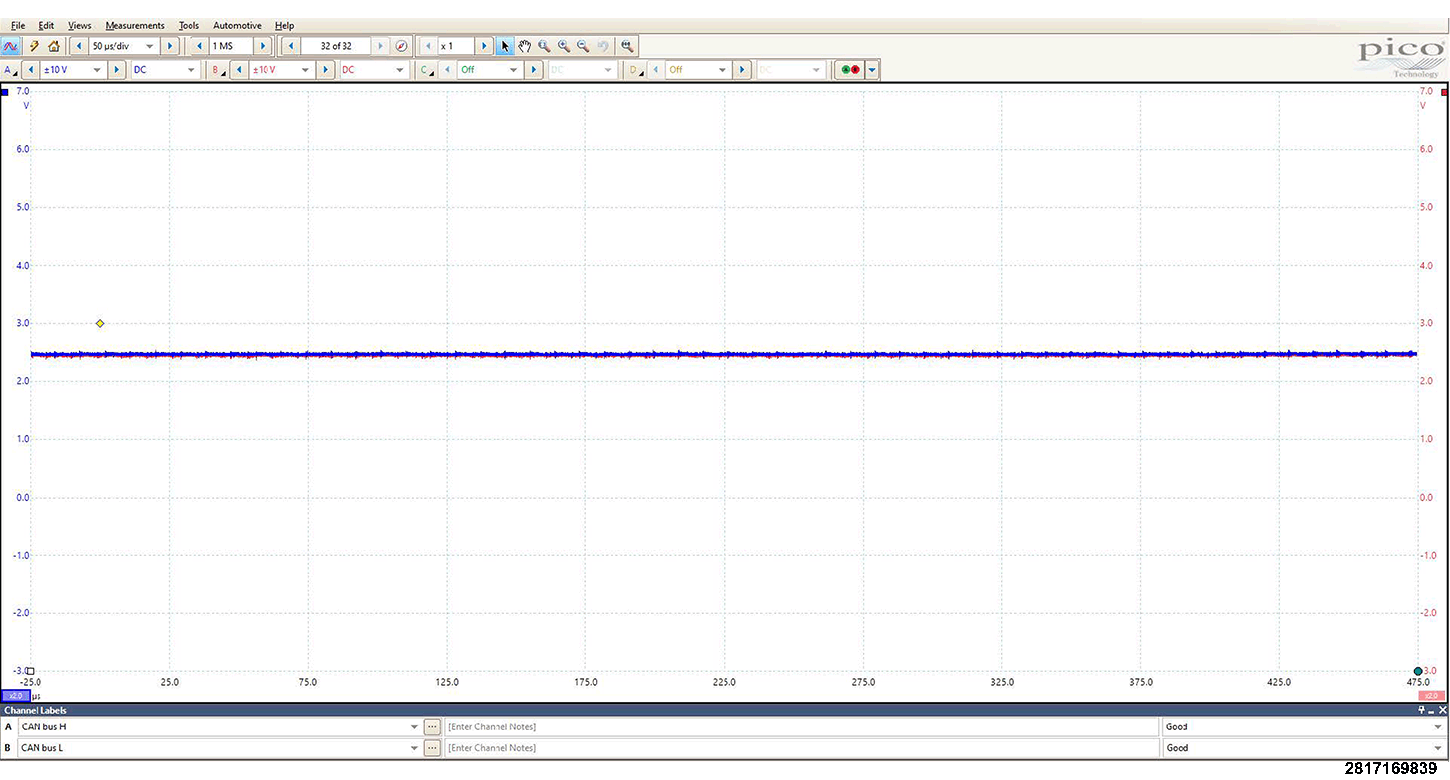

   • Short Together

     Courtesy of CHRYSLER GROUP, LLC

   • (+) Circuit Open
     NOTE:

     The scope pattern shown in the illustration is from the ECU side missing the HIGH side connection to the CAN bus harness. When checking the CAN bus is checked from the harness side a normal CAN bus scope pattern will appear.

     Courtesy of CHRYSLER GROUP, LLC

   • (-) Circuit Open
     NOTE:

     The scope pattern shown in the illustration is from the ECU side missing the LOW side connection to the CAN bus harness. When checking the CAN bus is checked from the harness side a normal CAN bus scope pattern will appear.

     Courtesy of CHRYSLER GROUP, LLC

     Courtesy of CHRYSLER GROUP, LLC

   Did the Mopar Scope show the CAN IHS bus waveform fault?

   • Use the wiring diagrams as a guide to follow the path of the circuit(s) to isolate the fault further and then repair / replace as needed.
   • The condition that originally caused the concern may not be present at this time.
   • Continue to use the Mopar Scope and wiring diagrams as a guide to trace the circuits and look for any in-line connectors where the fault could occur intermittently by wiggling the wire harness and connectors.
   • Look for any chafed, pierced, pinched, or partially broken wires.
   • Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the related wire harness connectors.
   • Perform any Technical Service Bulletins (TSBs) that may apply.
