Torque Specifications - Driveshafts

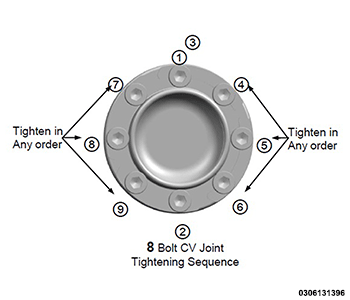

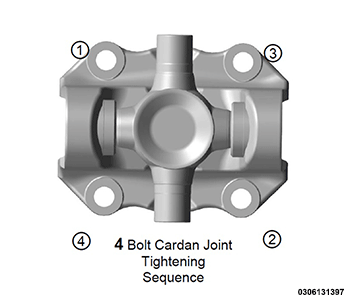

Identify the proper CV joint bolt configuration, four or eight bolts, and begin with the first bolt referred to as "1", follow the torque sequence as indicated. In the case where there are two numbers shown for a given bolt it indicates the bolt is to be torqued again within the sequence.
| DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|
| Front Driveshaft to Front Axle Flange Bolts, Cardan Joint | 121 N.m (89 Ft. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. Torque and secure in a crisscross pattern. |
| Front Driveshaft to Front Axle Flange Bolts, Constant Velocity (CV) Joint | 37 N.m (27 Ft. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. Torque and secure in a crisscross pattern. |
| Front Driveshaft to Transfer-Case Flange Bolts | 37 N.m (27 Ft. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. Torque and secure in a crisscross pattern. |
| Rear Driveshaft to Transfer-Case Flange Bolts | 37 N.m (27 Ft. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. Torque and secure in a crisscross pattern. |
| Rear Driveshaft to Rear Axle Flange Bolts | 37 N.m (27 Ft. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. Torque and secure in a crisscross pattern. |
| Rear Driveshaft Carrier Bearing to Frame | 62 N.m (46 Ft. Lbs.) | - |
