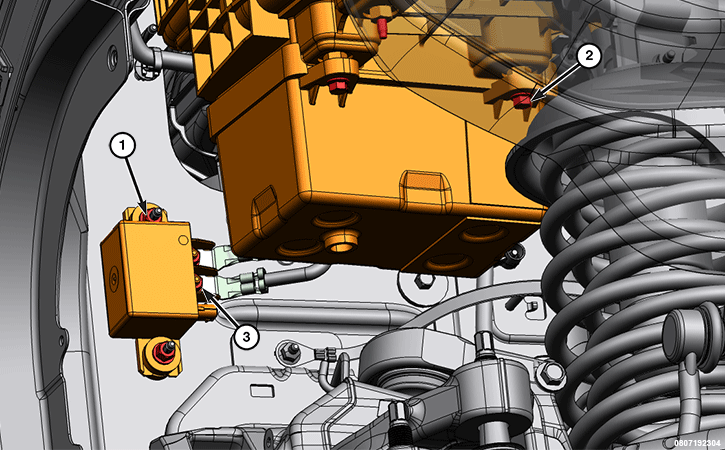

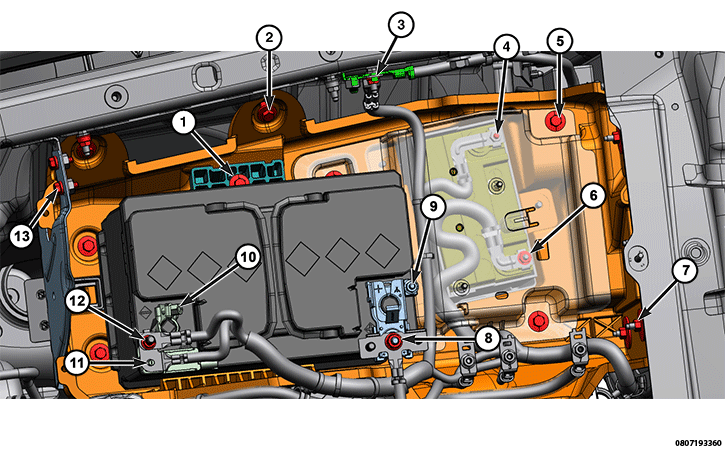

| 1 |
Battery Hold Down Bolt |
6 N.m (53 In. Lbs.) |
- |
| 2 |
Battery Tray Bolts |
6 N.m (53 In. Lbs.) |
Do not reuse these fasteners. If removed, a NEW
fastener must be installed and tightened to specifications. |
| 3 |
Negative Battery Cable to Body M6 |
12 N.m (9 Ft. Lbs.) |
- |
| 4 |
Auxiliary Battery - M6 Double Ended Torx Stud |
6 N.m (53 In. Lbs.) |
- |
| 5 |
Auxiliary Battery Cover to Battery Tray |
4 N.m (35 In. Lbs.) |
- |
| 6 |
Auxiliary Battery M6 Nut |
5 N.m (44 In. Lbs.) |
- |
| 7 |
Battery Tray Nuts |
4 N.m (35 In. Lbs.) |
Do not reuse these fasteners. If removed, a NEW
fastener must be installed and tightened to specifications. |
| 8 |
Battery Positive Cable M6 |
9 N.m (80 In. Lbs.) |
- |
| 9 |
Battery Positive Cable M5 |
9 N.m (80 In. Lbs.) |
- |
| 10 |
Intelligent Battery Sensor (IBS) To Negative Post |
7 N.m (62 In. Lbs.) |
- |
| 11 |
Auxiliary Negative Cable to Negative Cable at Battery |
5 N.m (44 In. Lbs.) |
- |
| 12 |
Negative Cable To Intelligent Battery Sensor (IBS) |
12 N.m (9 Ft. Lbs.) |
- |
| 13 |
Battery Tray To Front Bracket Support |
5 N.m (44 In. Lbs.) |
Do not reuse these fasteners. If removed, a NEW
fastener must be installed and tightened to specifications. |
| - |
Negative Battery Cable to Body M8 |
8 N.m (71 In. Lbs.) |
- |
