Range Position Switch

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect the transmission range position switch wire harness connector.
3. Remove the bolts from the transmission range position switch and remove the switch.

   Courtesy of CHRYSLER GROUP, LLC

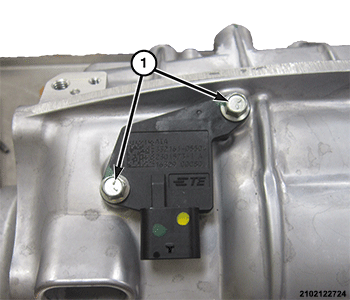

   1 - Transmission Range Position Switch Bolts

INSTALLATION

1. Position the transmission range position switch, then install the transmission range position switch bolts and tighten to the proper torque specifications.
   CAUTION:

   Do not overtighten switch.

2. Connect the transmission range position switch wire harness connector.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Transmission Range Position Switch Bolts

3. Remove the support and lower the vehicle.
4. Verify Reverse lamp operation.
5. If the transmission range position switch was replaced with a NEW  switch, the LEARN GEAR SHIFT SENSOR  routine must be performed using a scan tool.
