General Specifications

GEAR RATIOS

GEAR	RATIO
FIRST	5.133
SECOND	2.631
THIRD	1.536
FOURTH	1.00
FIFTH	0.811
SIXTH	0.719
REVERSE	4.491

INSTALLATION DEPTHS

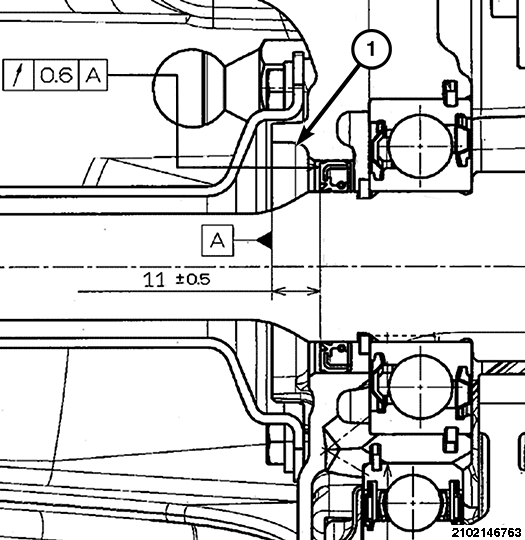

GC0182308

Courtesy of CHRYSLER GROUP, LLC

FRONT INPUT SEAL

ITEM	DEPTH
1.	11mm (0.43in)

GC0182937

Courtesy of CHRYSLER GROUP, LLC

REAR OUTPUT SEAL

ITEM	DEPTH
1.	1mm (0.04in)

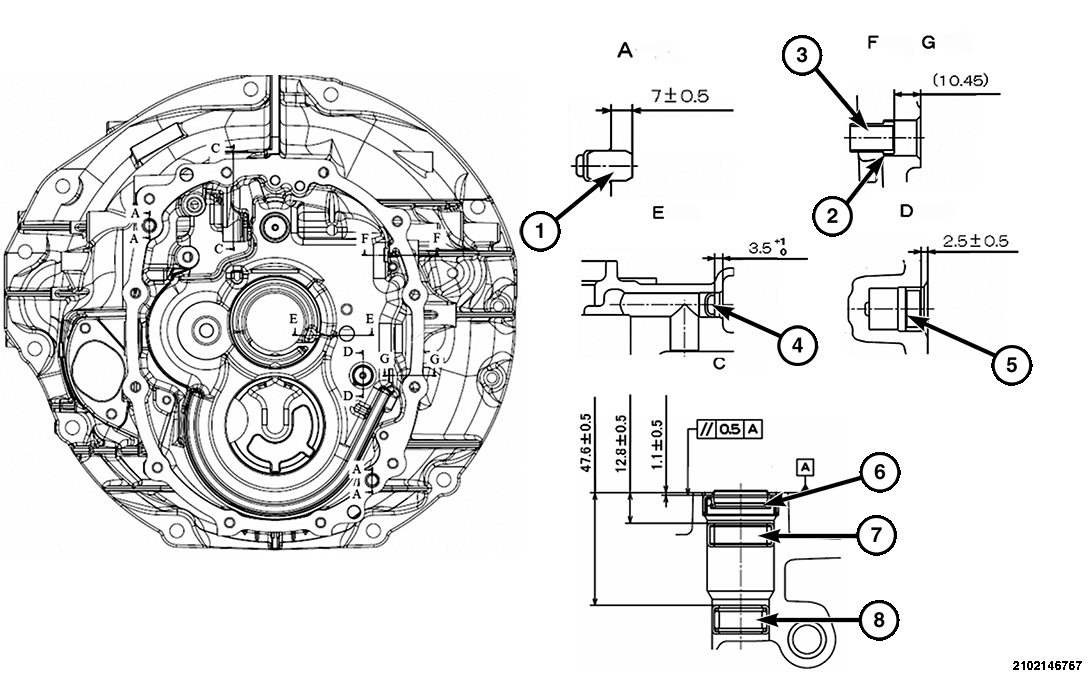

GC0182136

Courtesy of CHRYSLER GROUP, LLC

FRONT CASE

ITEM	DEPTH
1.	7mm (0.28in)
2.	10.45mm (0.41in)
3.	-
4.	3.5mm (0.14in)
5.	2.5mm (0.09in)
6.	1.1mm (0.04in)
7.	12.8mm (0.50in)
8.	47.6mm (1.87in)

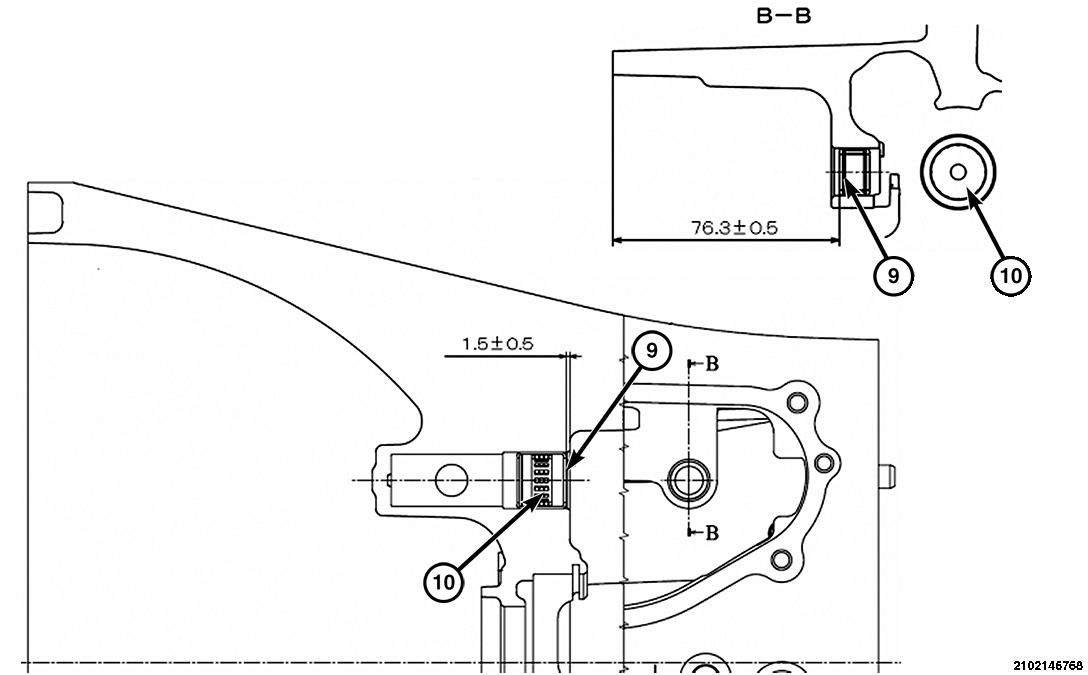

GC0181416

Courtesy of CHRYSLER GROUP, LLC

FRONT CASE

ITEM	DEPTH
9.	76.3mm (3.00in)
10.	1.5mm (0.05in)

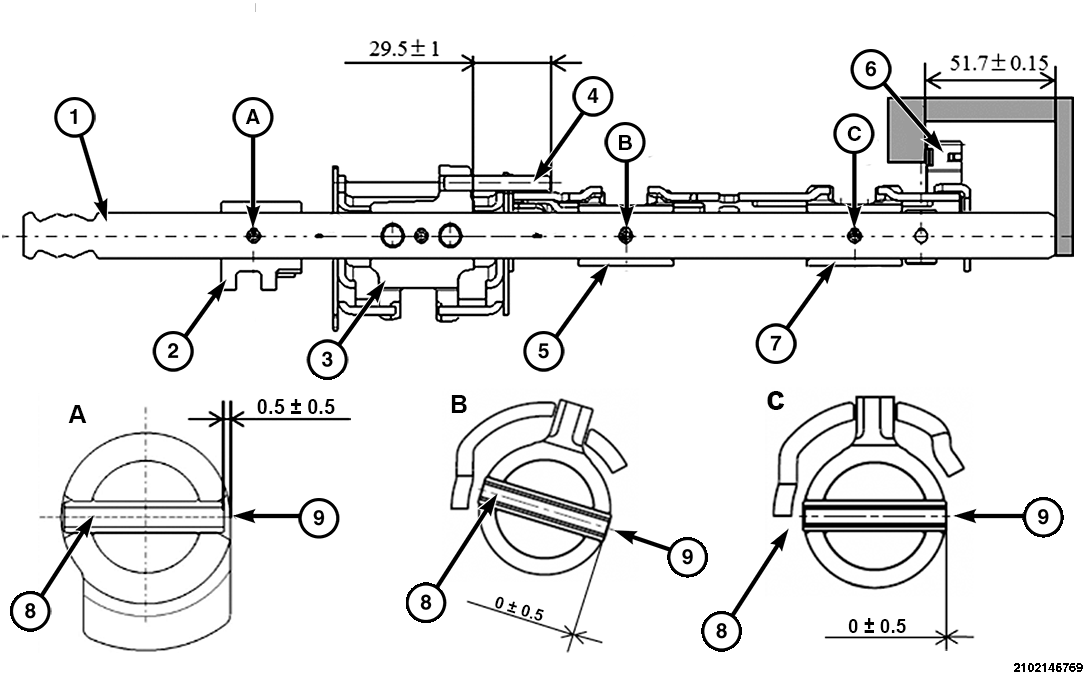

GC0182975

Courtesy of CHRYSLER GROUP, LLC

ROLL PINS

INDEX	DEPTH
1. Shift Select Shaft	11mm (0.43in)
2. Reverse Lever	11mm (0.43in)
3. 1st/2nd Lever	11mm (0.43in)
4. Pin	11mm (0.43in)
5. 5th/6th Lever	11mm (0.43in)
6. Magnet	11mm (0.43in)
7. 3rd/4th Lever	11mm (0.43in)
8 A. Pin	0.5mm (0.01in)
8 B. Pin	0mm (0in)
8 C. Pin	0mm (0in)
9. Installation Direction	-

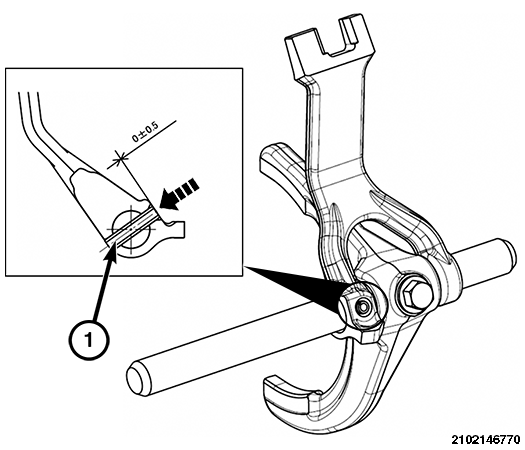

GC0183249

Courtesy of CHRYSLER GROUP, LLC

REVERSE FORK PIN

INDEX	DEPTH
1. Shift Select Shaft	0mm (0in)

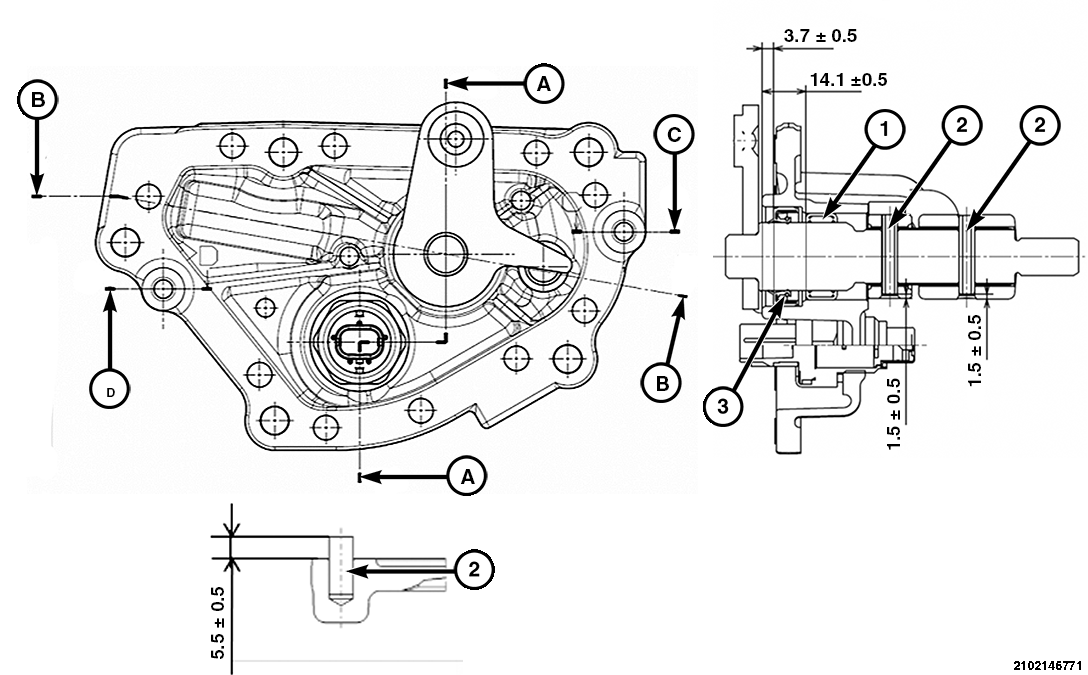

GC0182031

Courtesy of CHRYSLER GROUP, LLC

CONTROL COVER

INDEX	DEPTH
1. Bearing	11mm (0.43in)
2. Pin	14.1mm (0.55in)
3. Seal	1.5mm (0.05in)

GC0181638

Courtesy of CHRYSLER GROUP, LLC

GUIDE PLATE PIN

INDEX	DEPTH
1. Pin	4mm (0.15in)
2. Guide Plate	-

GC0182662

Courtesy of CHRYSLER GROUP, LLC

REAR CASE

INDEX	DEPTH
1. Holder	-
2. Contact Point	-
3. Bushing	2.5mm (0.09in)
4. Bearing	1.5mm (0.05in)
