Disassembly And Assembly: Select-TRAC: Notes

DISASSEMBLY

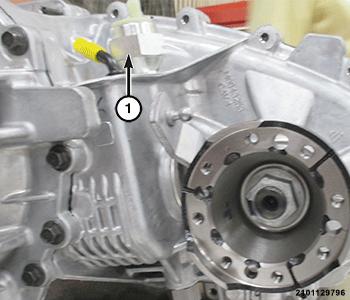

1. Remove the transfer case position sensor.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Transfer Case Position Sensor

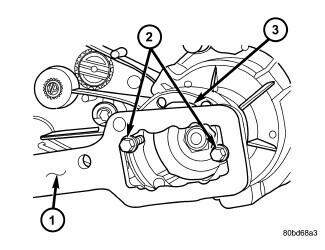

2. Remove both output flanges. Install two bolts partially into the propeller shaft companion flange, 180° from each other.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Flange Holder Tool

   2 - Bolts

   3 - Flange

3. Install the rectangular end of the Special Tool # C-3281, (Flange Holder) over the bolts to hold the companion flange stationary and remove the nut holding the companion flange to the output shaft.

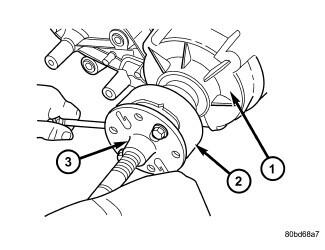

4. Use Special Tool # C-452, (Companion Flange Puller) to remove the companion flange.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Transfer Case

   2 - Flange

   3 - Flange Puller

5. Remove the seal washer from the front output shaft. Discard the washer as it must not be reused.

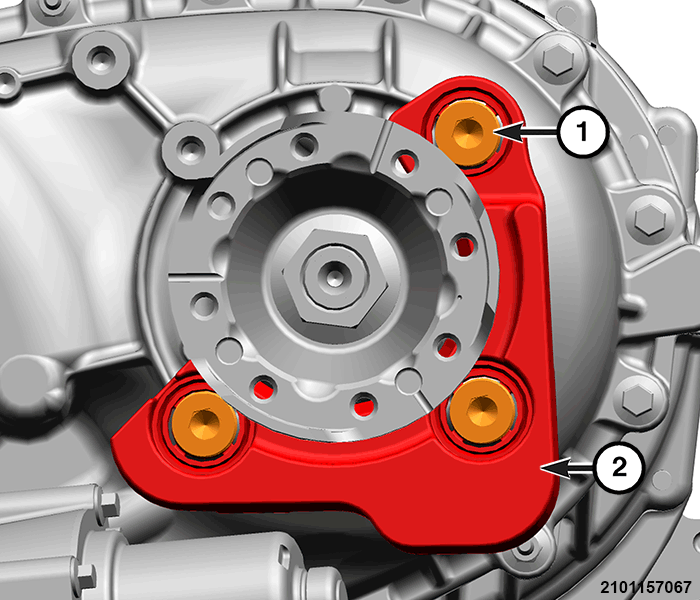

6. If equipped, remove the harmonics damper fasteners and remove the harmonics damper.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Harmonics Damper Bolts

   2 - Harmonics Damper

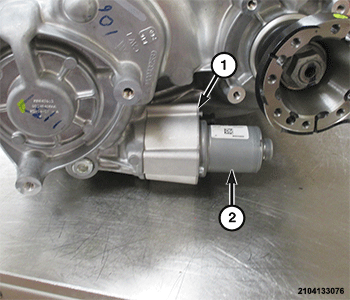

7. Remove the three shift motor bolts from the shift motor.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Shift Motor Bolts

   2 - Shift Motor

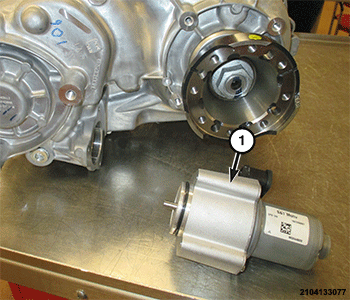

8. Remove the shift motor.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Shift Motor

9. Remove the bolt that attaches the range lever to the sector shaft. Then move the sector shaft to the neutral position and remove the range lever from the shaft.
   NOTE:

   Be sure to note the orientation of the range lever (lever up or down) so that it may be re-installed in the same direction.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Range Lever Bolt

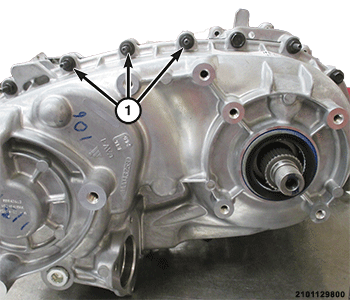

10. Remove the case bolts.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Transfer Case Bolts

11. Loosen the case halves with pry tool to break the sealer bead. Insert tool in slot at each end of case.

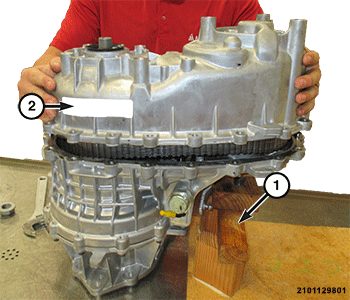

12. Unseat the rear case from the alignment dowels and remove the case.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Wood Block

    2 - Rear Transfer Case Half

13. Remove the oil pump with the oil pump pick-up tube.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Oil Pump

    2 - Oil Pump Pick-up Tube

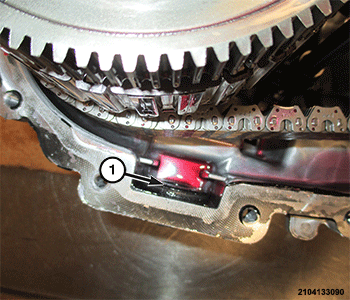

14. Remove the magnet from the pocket that the oil pump pickup tube is seated in and thoroughly clean the magnet.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Magnet

15. Remove the oil sump from the case.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Oil Sump

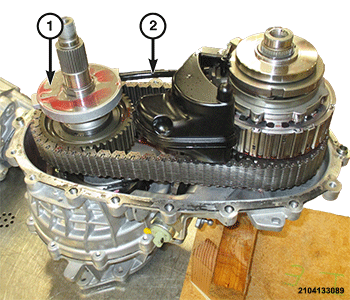

16. Remove the chain and the main shaft sprocket assembly from the case.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Chain

    2 - Main Shaft Sprocket Assembly

17. Remove the output shaft assembly from the case.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Output Shaft Assembly

18. Remove the range fork assembly with the input gear.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Input Gear

    2 - Range Fork

    3 - Range Fork Located in Selector Plate

19. Remove the input shaft seal to access the planetary gear assembly snap ring
20. Remove the snap ring retaining the planetary gear assembly.

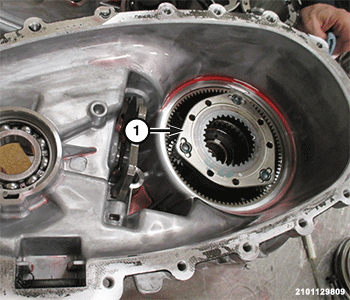

21. Remove the planetary gear set.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Ball Joint Remover/Installer Tool

    2 - Output Shaft Assembly

    3 - Snap Ring

    Courtesy of CHRYSLER GROUP, LLC

    1 - Planetary Gear Set

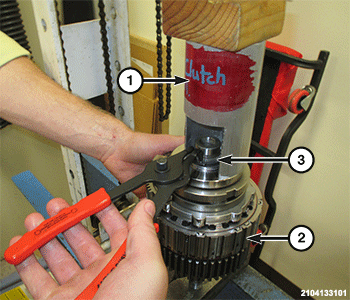

22. With the output shaft assembly supported in a press, compress the clutch assembly enough using special tool # 9964, (Ball Joint Remover/Installer) to remove the output snap ring.

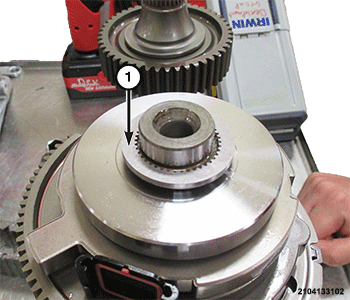

23. Remove the transfer case shim from the output thrust washer.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Shim

24. Remove the thrust washer from the upper apply cam.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Thrust Washer

25. Remove the thrust bearing from the upper apply cam.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Thrust Bearing

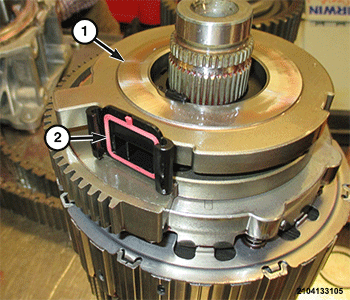

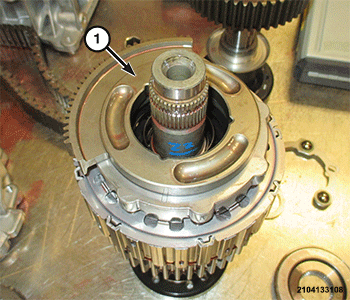

26. Remove the upper apply cam, with the transfer case oil sump receiving plate, from the output shaft.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Upper Apply Cam

    2 - Transfer Case Oil Sump Receiving Plate

27. Remove the ball bearings with the retaining ring from the apply cam.
    NOTE:

    Note the orientation of the opening on the retaining ring for reassembly.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Ball Bearings

    2 - Retaining Ring

28. Remove the lower apply cam from the output shaft.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Lower Apply Cam

29. Remove the apply plate from the output shaft.

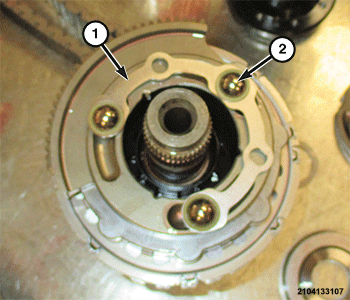

    Courtesy of CHRYSLER GROUP, LLC

    1 - Apply Plate

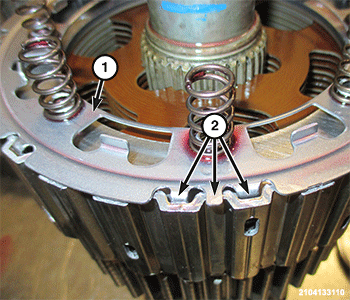

30. Remove the spring plate from the output shaft.
    NOTE:

    Note the orientation of the tabs when removing the spring plate.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Spring Plate

    2 - Tab Orientation

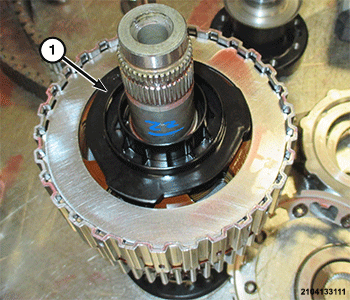

31. Remove the oil deflector from the output shaft.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Oil Deflector

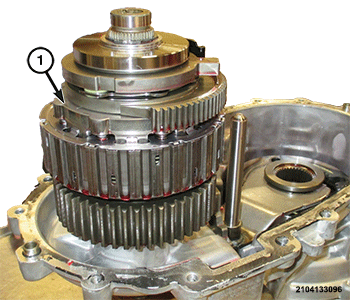

32. Remove the clutch drum assembly from the output shaft.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Clutch Drum Assembly

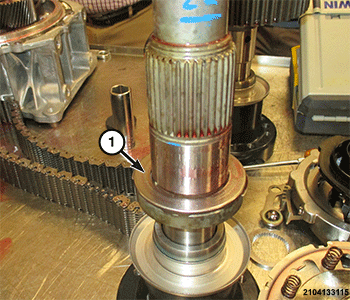

33. Remove the clutch drum spacer from the output shaft.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Clutch Drum Spacer

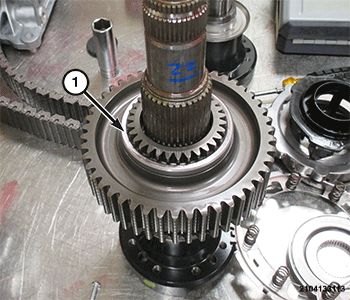

34. Remove the driven sprocket from the output shaft.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Driven Sprocket

35. Remove the thrust bearing from the output shaft.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Thrust Bearing

ASSEMBLY

1. Thoroughly clean both case halves and the mating surfaces.
2. Replace any bearings in the case halves that are spalled, damaged, or have been subjected to highly contaminated fluid (metal contamination from catastrophic failure).

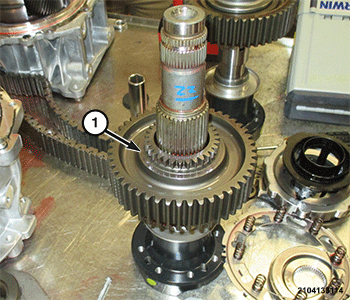

3. Install the thrust bearing to the output shaft.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Thrust Bearing

4. Install the driven sprocket to the output shaft.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Driven Sprocket

5. Install the clutch drum spacer to the output shaft.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Clutch Drum Spacer

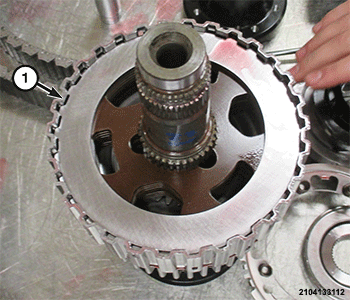

6. Install the clutch drum assembly to the output shaft.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Clutch Drum Assembly

7. Install the oil deflector to the output shaft.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Oil Deflector

8. Install the spring plate to the output shaft.
   NOTE:

   Note the orientation of the tabs when installing the spring plate.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Spring Plate

   2 - Tab Orientation

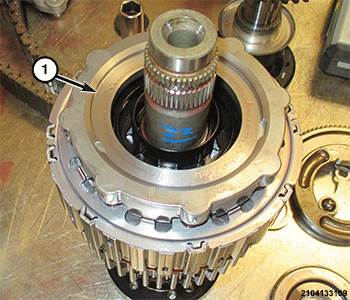

9. Install the apply plate to the output shaft.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Apply Plate

10. Install the lower apply cam to the output shaft.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Lower Apply Cam

11. Install the ball bearings with the retaining ring into the lower apply cam.
    NOTE:

    Verify the orientation of the retaining ring to the gear teeth on the apply cam before reassembly. The figure shown is the correct orientation.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Ball Bearings

    2 - Retaining Ring

12. Install the upper apply cam with the transfer case oil sump receiving plate to the output shaft.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Upper Apply Cam

    2 - Transfer Case Oil Sump Receiving Plate

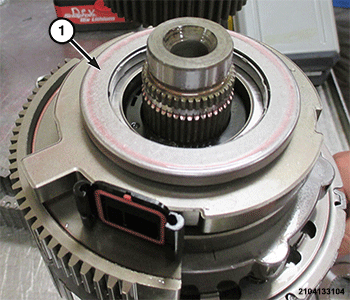

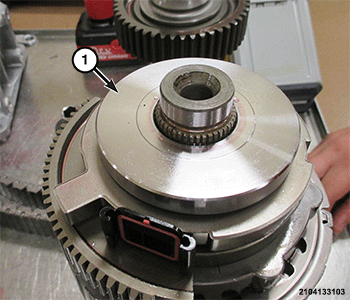

13. Install the thrust bearing to the upper apply cam.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Thrust Bearing

14. Install the thrust washer to the upper apply cam.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Shim

    Courtesy of CHRYSLER GROUP, LLC

    1 - Thrust Washer

15. Install the transfer case shim to the output thrust washer.
16. With the output shaft assembly supported in a press, compress the clutch assembly enough using special tool # 9964, (Ball Joint Remover/Installer) to install the output snap ring on the output shaft.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Ball Joint Remover/Installer Tool

    2 - Output Shaft Assembly

    3 - Snap Ring

17. Install the planetary gear set into the annulus gear.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Planetary Gear Set

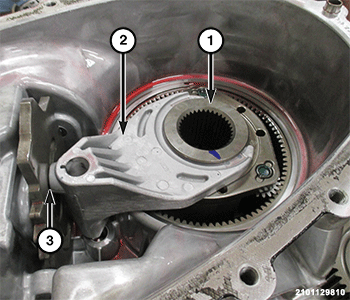

18. Assemble the input gear assembly together with the range fork and install them into the planetary carrier.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Input Gear

    2 - Range Fork

    3 - Range Fork Located in Selector Plate

19. Make sure the tang on the range fork is seated in the notch on the selector plate.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Range Fork Located in Selector Plate

20. Install the output shaft assembly into the case.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Output Shaft Assembly

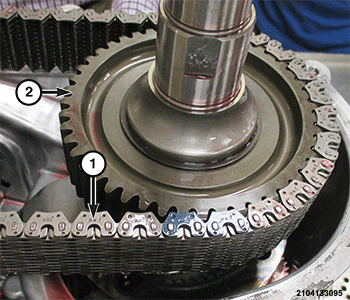

21. Assemble the chain on the main shaft sprocket with the blue link facing up. Install the chain with the main shaft around the output driven sprocket and into the case.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Chain

    2 - Main Shaft Sprocket Assembly

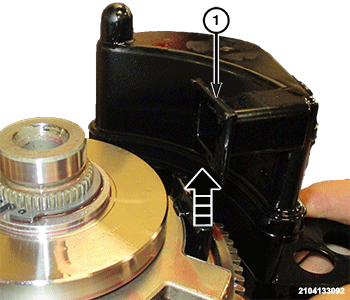

22. Install the oil sump into the receiving plate.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Oil Sump

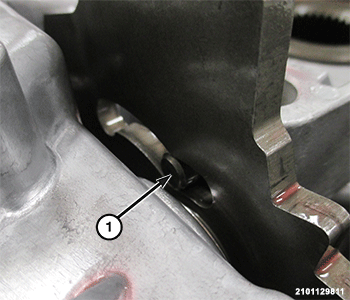

23. Install the magnet into the case pocket.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Magnet

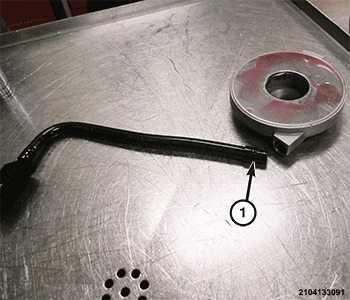

24. Inspect the oil pump pickup tube O-ring for damage, if damaged, replace the O-ring before installing the oil pump.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Oil Pump Pick-up Tube O-ring

25. Install the oil pump with the oil pump pickup tube on the output shaft.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Oil Pump

    2 - Oil Pump Pick-up Tube

26. Clean both case half mating surfaces using brake cleaner or similar. Make sure all of the old sealer is removed and the surface is free of any oils or debris. Place a 1/4 inch bead of Mopar® sealer on one case half.
27. Install the rear case half making sure it is fully seated in the locating pins.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Wood Block

    2 - Rear Transfer Case Half

28. Tighten the case bolts in a criss-cross pattern to the proper torque specification.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Transfer Case Bolts

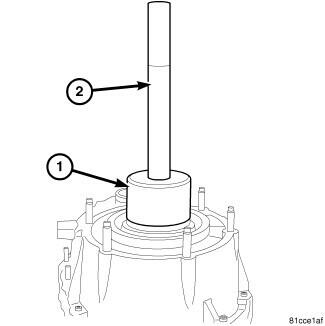

29. Using Special Tool # 2053900210, (Seal Input Shaft Installer) and Special Tool # C-4171, (Universal Driver Handle), install the NEW  front input shaft seal.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Seal Installer Tool

    2 - Driver Handle

30. Install the front and rear output flanges with NEW  flange nuts. Tighten the nuts to the proper torque specification.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Rear Output Flange Nut

    2 - Rear Output Flange

31. Install the transfer case position sensor.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Transfer Case Position Sensor

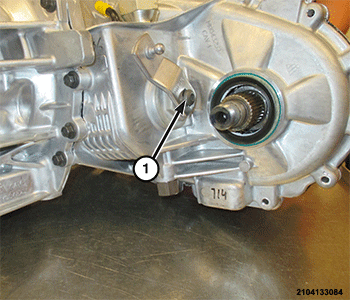

32. Install the range lever bolt into the sector shaft.
    NOTE:

    Be sure to note the orientation of the range lever (lever up or down) so that it may be re-installed in the same direction as it was removed.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Range Lever Bolt

33. Install the shift motor.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Shift Motor

34. Install the three shift motor bolts.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Shift Motor

    2 - Shift Motor Bolts

35. If equipped, position the harmonics damper.

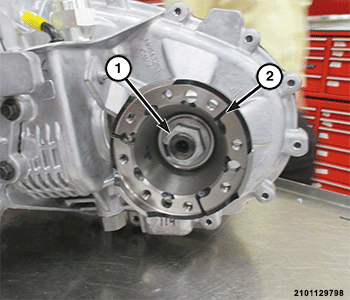

    Courtesy of CHRYSLER GROUP, LLC

    1 - Harmonics Damper Bolts

    2 - Harmonics Damper
