| Hydraulic Impulse Solenoid Bolts |
8 N.m (71 In. Lbs.) |
- |
| Output Speed Sensor Bolt |
8 N.m (71 In. Lbs.) |
- |
| Park Lock Solenoid Screw |
6 N.m (53 In. Lbs.) |
- |
| Park Pawl Lock Rod Guide Plate Bolt |
13 N.m (10 Ft. Lbs.) |
- |
| Park Pawl Shaft Plug |
35 N.m (26 Ft. Lbs.) |
- |

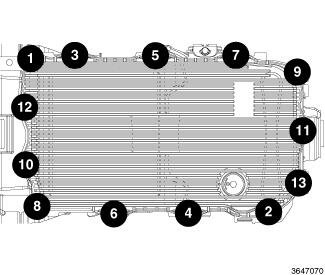

| Transmission Oil Pan Bolt |
11 N.m (8 Ft. Lbs.) |
Tightening Sequence
 Courtesy of CHRYSLER GROUP, LLC
|
| Transmission Oil Pan Drain Plug |
9 N.m (80 In. Lbs.) |
- |
| Transmission Oil fill Plug |
35 N.m (26 Ft. Lbs.) |
- |
| Transmission Oil Filter to Transmission Oil Pan |
6 N.m (53 In. Lbs.) |
- |

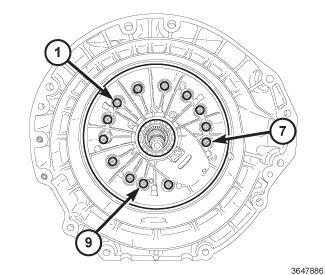

| Transmission Oil Pump Assembly To Case Bolts |
Torque Procedure:
- Firmly press the oil pump in place by hand before drawing it in with bolts.
- In order to seat the oil pump cover properly, pre tighten bolts one, seven and nine to 6 N.m (53 in. lb.)
- Tighten bolts to 10 N.m (89 in. lb.) starting at number one working clockwise
- Rotate additional 90° in sequence starting at bolt 1
|
Tightening Sequence
 Courtesy of CHRYSLER GROUP, LLC
|
| Transmission Oil Pump Housing To Cover Bolt |
Torque Procedure:
- Tighten to 5 N.m (44 In. Lbs.)
- Rotate additional 45°
|
- |

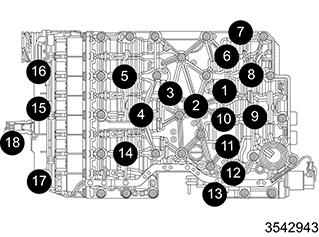

| Valve Body Bolt |
Torque Procedure:
- Install bolts except for the spots where the locating pins are installed and hand tighten
- Remove the pins and install the remaining bolts
- Tighten bolts to 6 N.m (53 In. Lbs.)
|
Tightening Sequence
  Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC
|
