Torque Specifications - Vacuum Pump

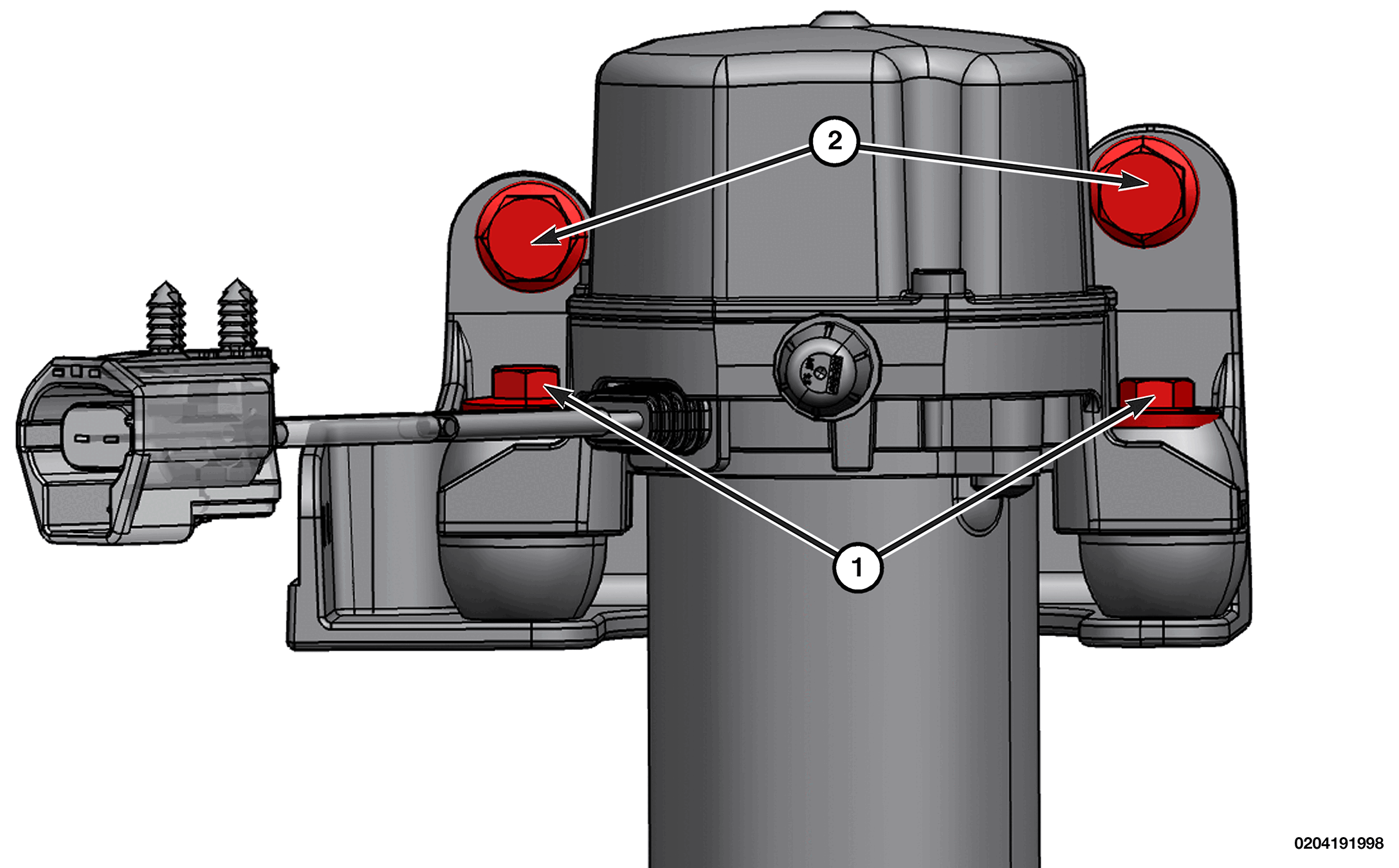

GC0205942Courtesy of CHRYSLER GROUP, LLC
CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Vacuum Pump Bolts 8 N. m (71 In. Lbs.) -
2 Vacuum Pump Bracket Bolts 25 N. m (18 Ft. Lbs.) -
