Z-Case Fuse Array

Courtesy of CHRYSLER GROUP, LLC

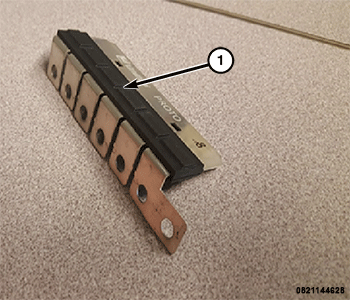

The Z-case fuse array is connected to the Power Distribution Center (PDC) and is a serviced component. The following procedure details how to remove this component from the PDC.

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to: BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM .
2. Remove the PDC cover by pressing inward on both latches located on the sides of the PDC.

   Courtesy of CHRYSLER GROUP, LLC

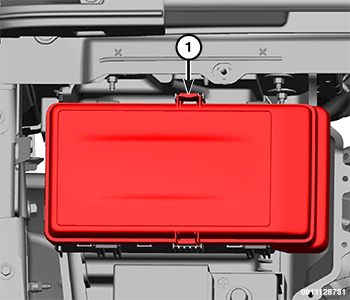

   1 - Latch

3. Disconnect and isolate the positive battery cable.

   Courtesy of CHRYSLER GROUP, LLC

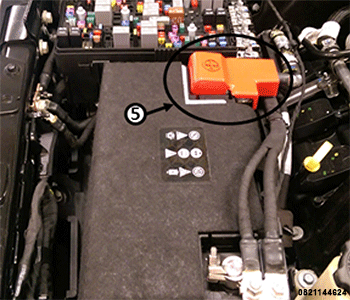

   5 - Positive Battery Cable

4. Remove the remainder of the wire harness connection terminals on the PDC.

   Courtesy of CHRYSLER GROUP, LLC

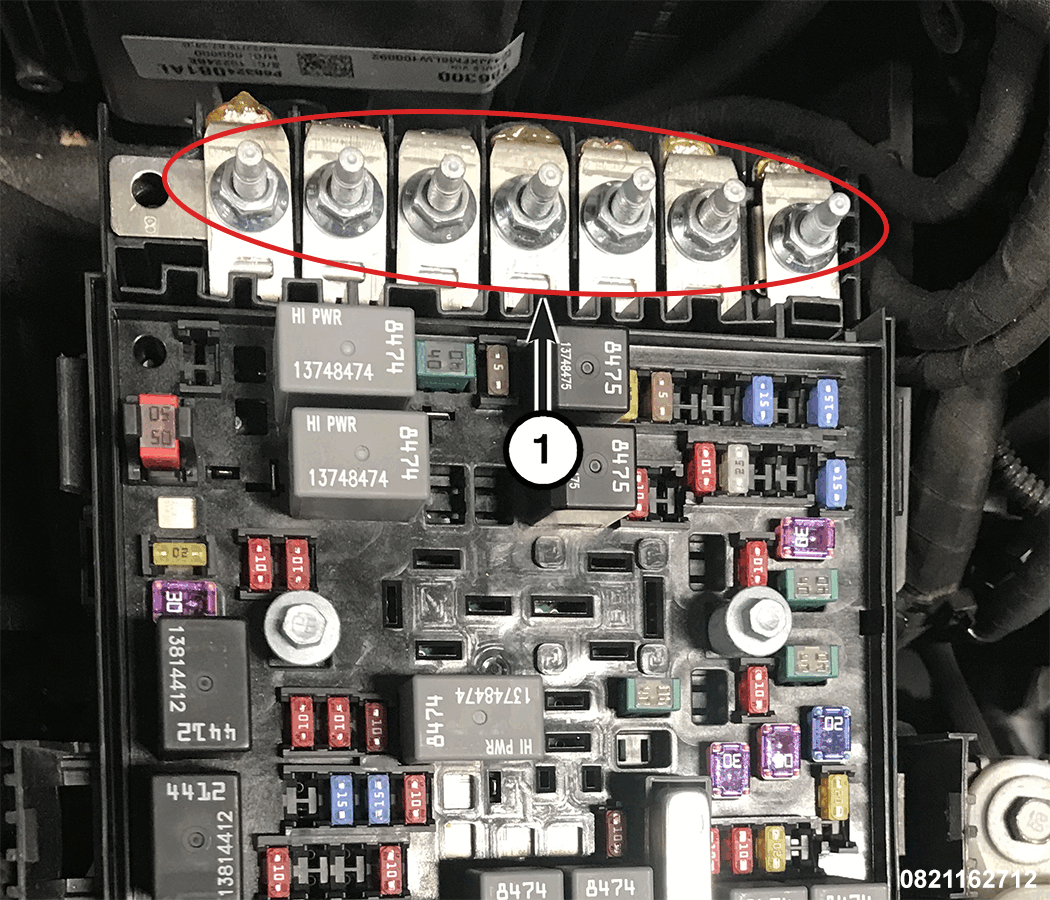

   1 - Wire Harness Connection Terminals

5. If the Z-case fuse array will not lift out of the PDC then it is necessary to remove the PDC. Refer to CENTER, POWER DISTRIBUTION (PDC), REMOVAL AND INSTALLATION .
6. Using a small flat blade flathead screwdriver, unlatch the Z-case fuse array from the PDC housing through the small slots on the bottom of the PDC housing and remove the Z-case fuse array.

   Courtesy of CHRYSLER GROUP, LLC

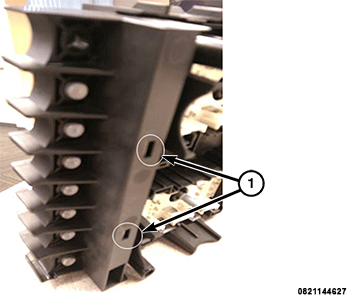

   1 - Slots

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• If the PDC was removed, snap to fit the Z-case fuse array to the PDC housing.
• Tighten the wire harness terminals securely.
