Integrated Trailer Brake Switch

REMOVAL

1. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

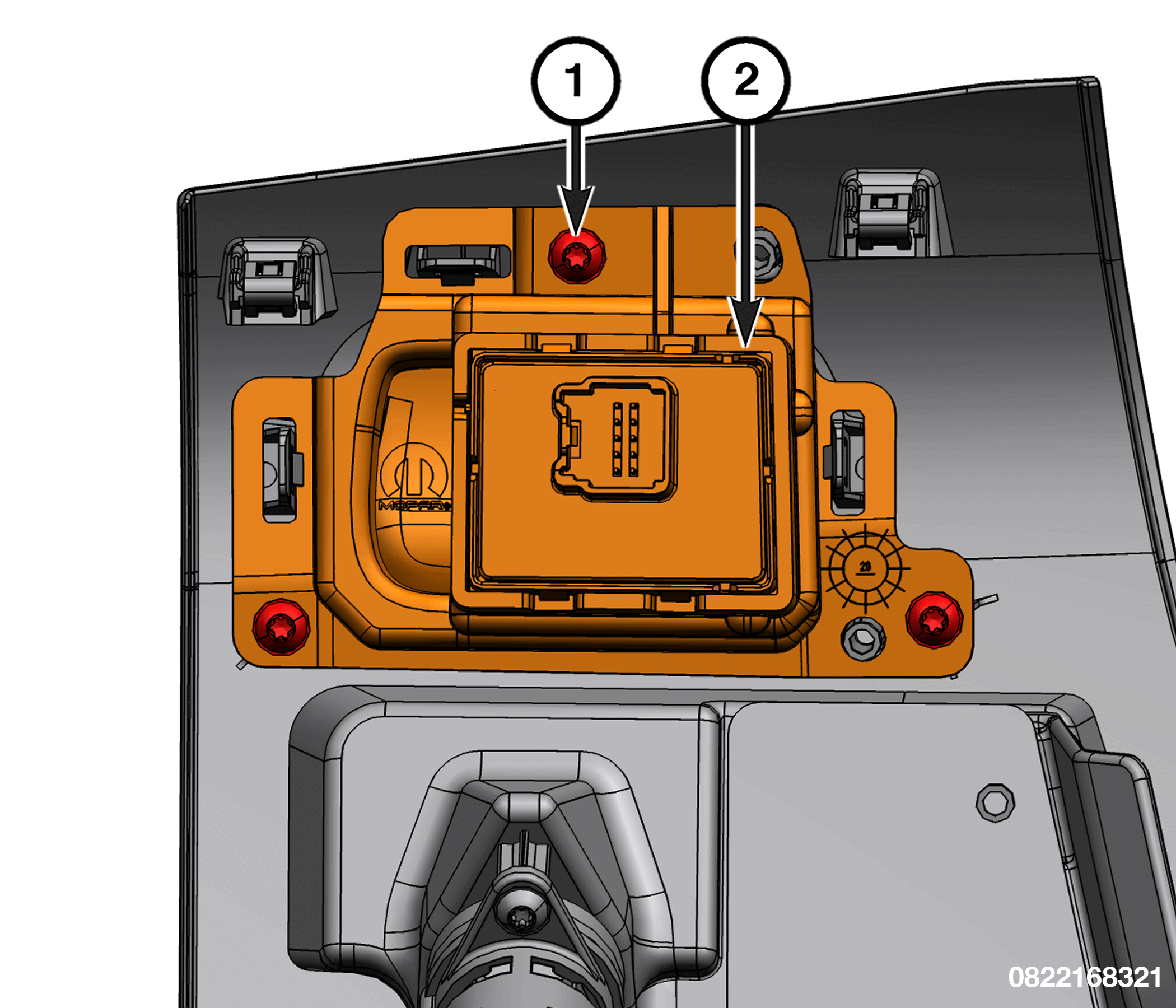

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - ITBS

2. Remove the fasteners that secure the Integrated Trailer Brake Switch (ITBS) to the steering column opening cover and remove the module.

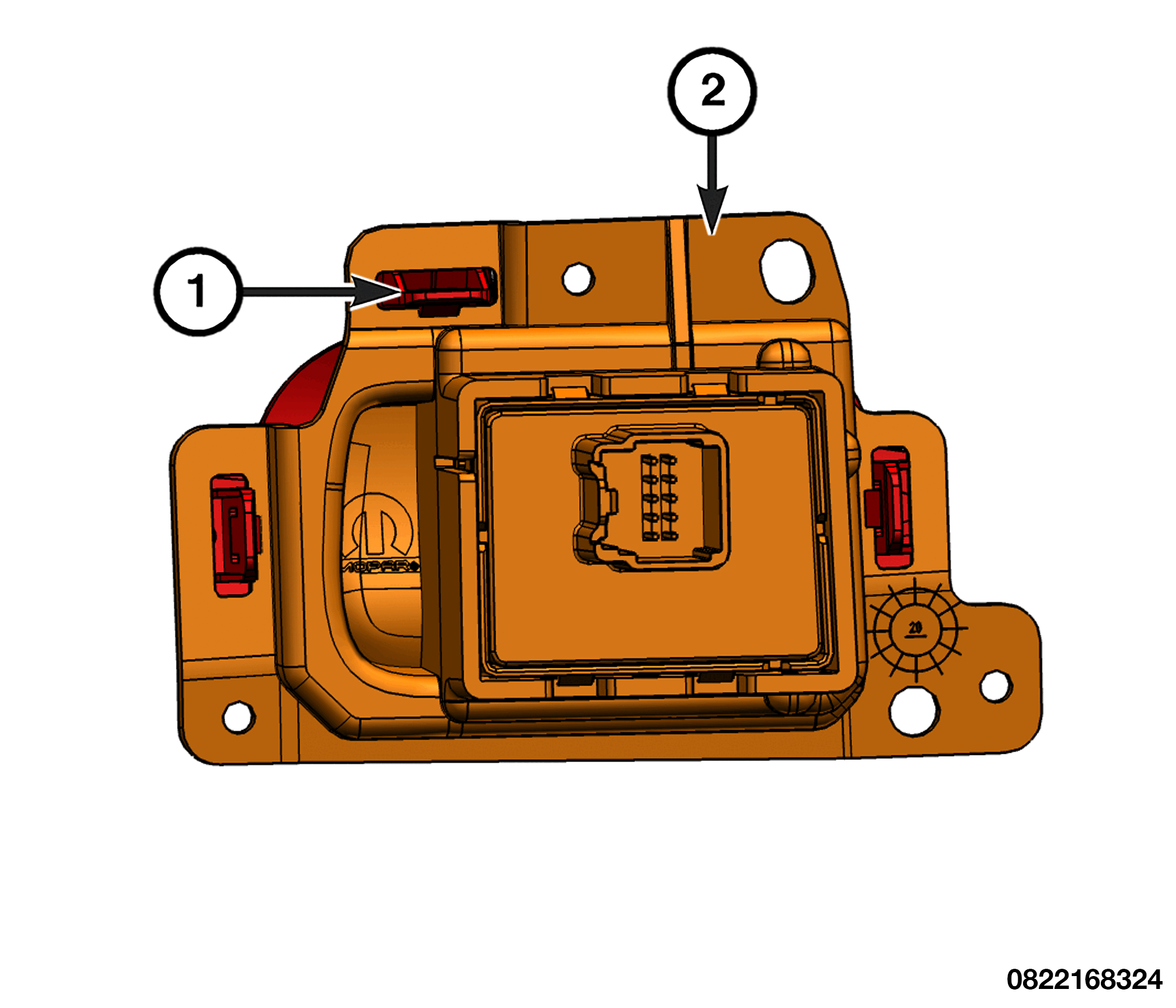

   Courtesy of CHRYSLER GROUP, LLC

   1 - Tabs

   2 - ITBS

3. Release the tabs and remove the trim cover from the ITBS.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
