Power Inverter Module: Notes

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM .
2. Remove the floor console Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .

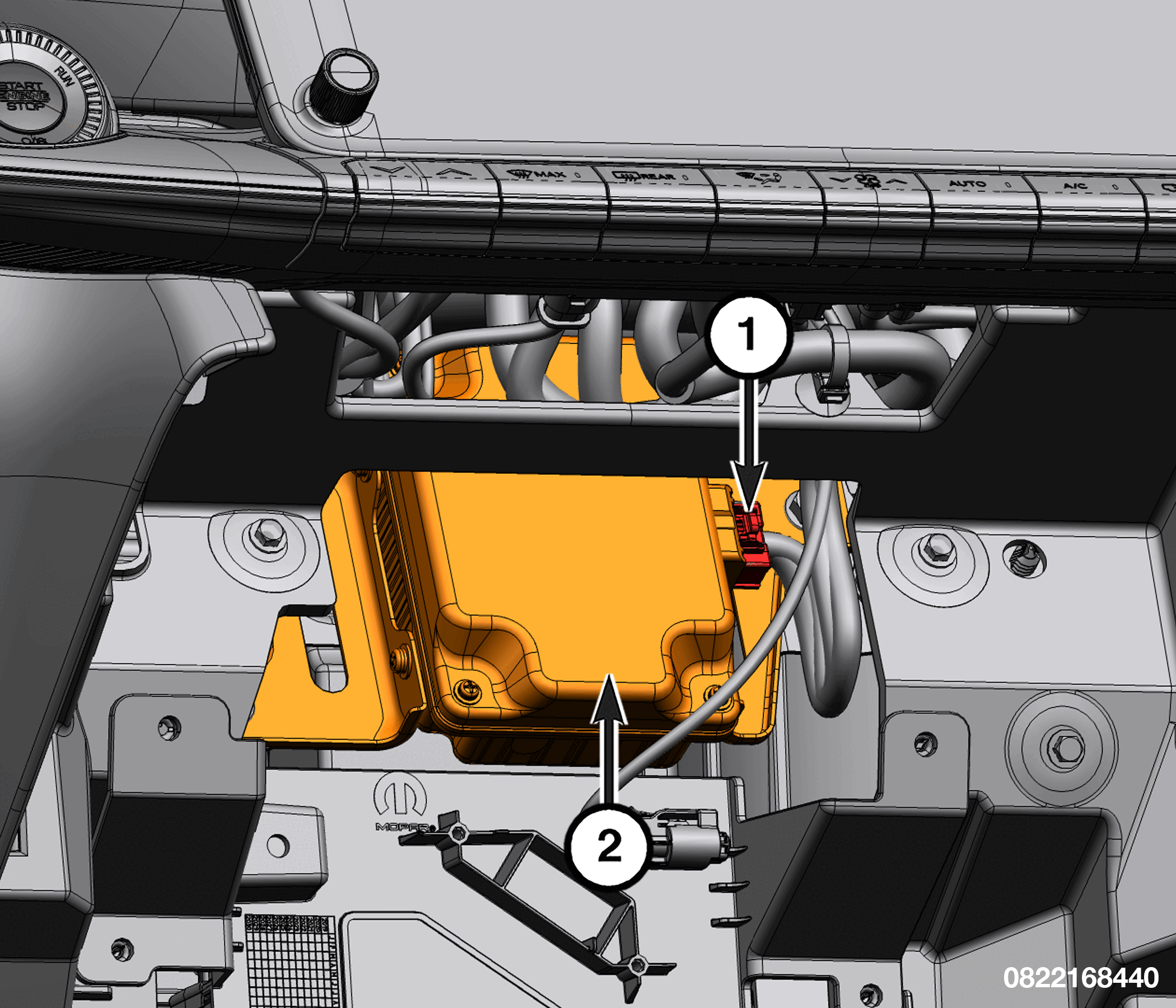

   Courtesy of CHRYSLER GROUP, LLC

   1 - Wire Harness Connector

   2 - Power Inverter Module (PIM)

3. Disconnect the wire harness connector from the Power Inverter Module (PIM).

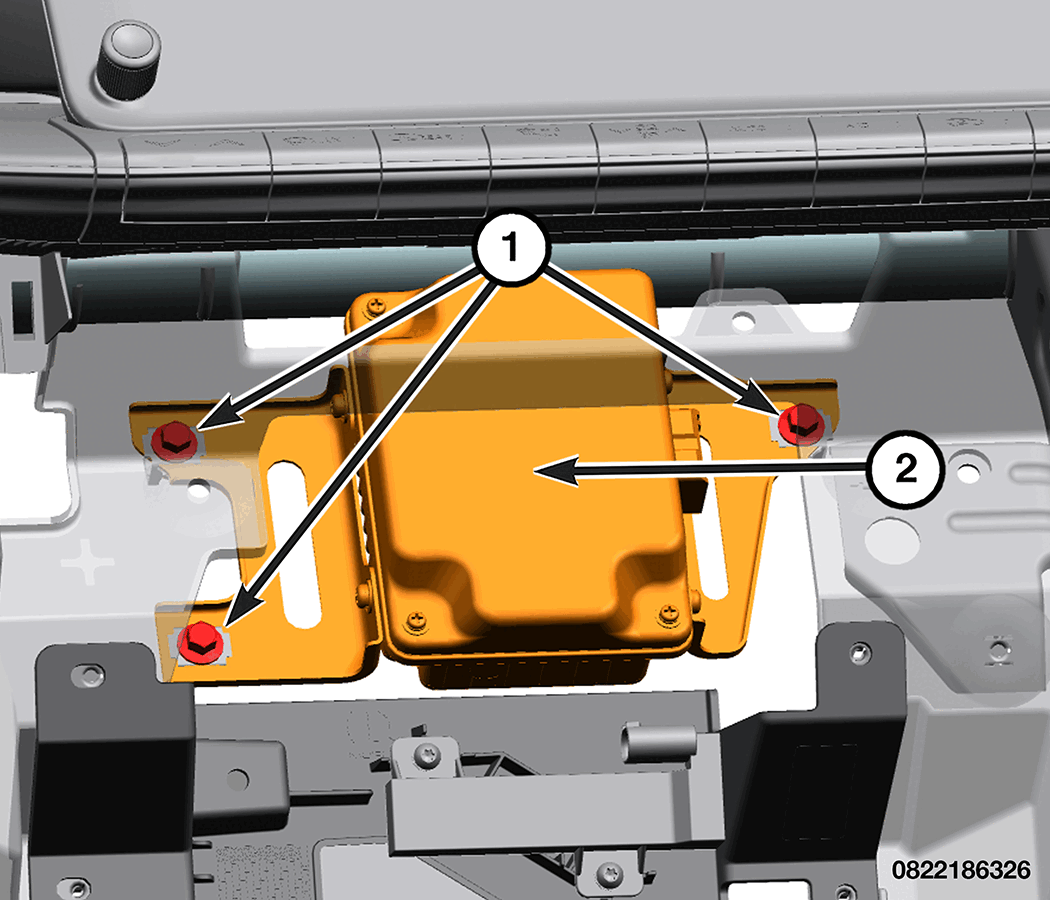

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Power Inverter Module (PIM)

4. Remove the fasteners that secure the PIM and bracket from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
