Central Active Driver Assist Decision Module - Low: Notes

REMOVAL

1. Remove the right rear quarter panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .

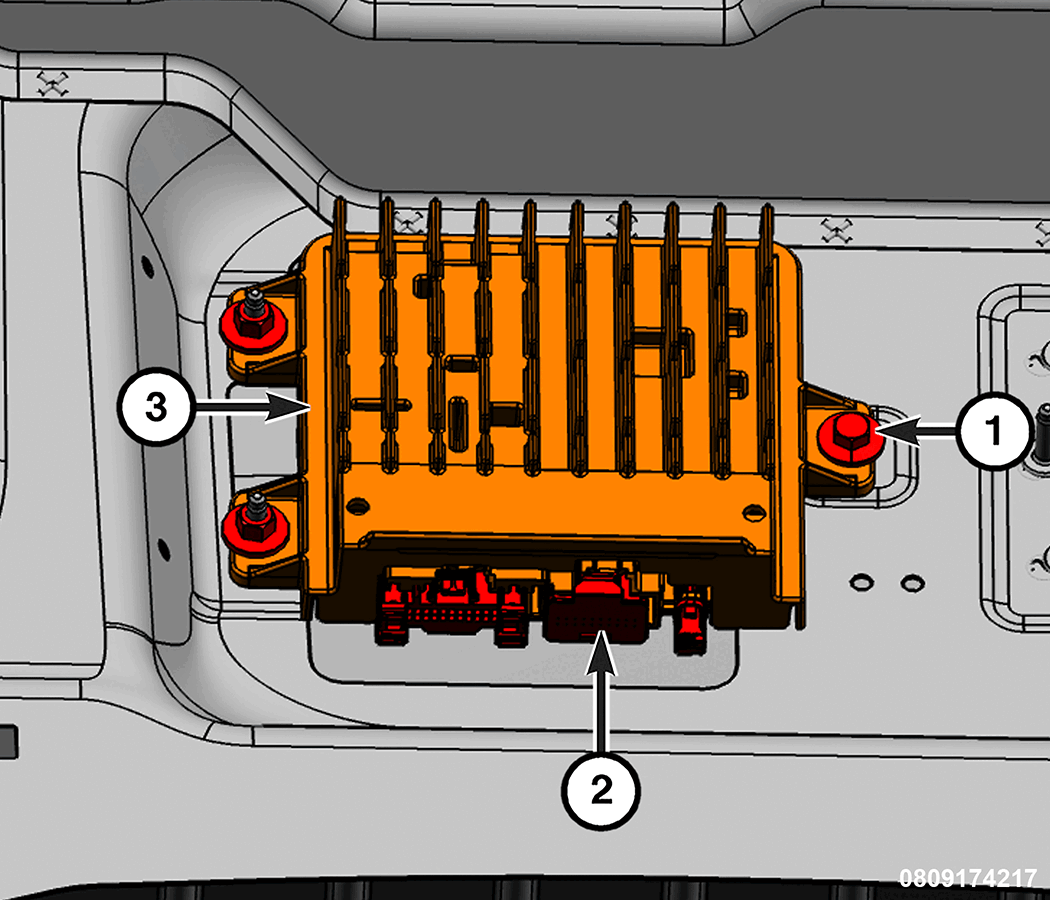

   Courtesy of CHRYSLER GROUP, LLC

   1 - Nuts and Bolt

   2 - Harness Connectors

   3 - CADM

2. Remove the nuts and bolt securing the Central ADAS Decision Module (CADM) low to the vehicle.
3. Disconnect the wire harness connectors from the CADM low and remove the CADM low from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
