Steering Column: Notes

REMOVAL

WARNING:

Before servicing the steering column the airbag system must be disarmed. Failure to do so may result in accidental deployment of the airbag and possible personal injury.

WARNING:

When an undeployed airbag module is to be removed from the vehicle, first disconnect the battery ground cable and isolate it. Allow the system capacitor to discharge for a minimum of two minutes before starting any removal.

CAUTION:

Anytime the Steering Column Control Module (SCCM) is mounted on the steering column the steering shaft must be kept from turning or else SCCM damage will occur. Some vehicles do not have an internal lock mechanisms, so the steering column shaft must be preventing from rotating through use of a suitable tool.

GC0204700Courtesy of CHRYSLER GROUP, LLC
1 - Intermediate Shaft Upper Pinch Bolt
  1. Remove and DISCARD  the intermediate shaft upper pinch bolt.
  2. Disengage the intermediate shaft from the steering column shaft.
  3. Remove the left silencer panel. Refer to PANEL, SILENCER, REMOVAL AND INSTALLATION .
  4. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
  5. Remove the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
  6. Remove the steering column shroud. Refer to SHROUD, STEERING COLUMN, REMOVAL AND INSTALLATION .
  7. Remove the Steering Column Control Module (SCCM). Refer to MODULE, STEERING COLUMN CONTROL (SCCM), REMOVAL AND INSTALLATION .
  8. Remove the driver knee airbag. Refer to AIR BAG, REMOVAL AND INSTALLATION .

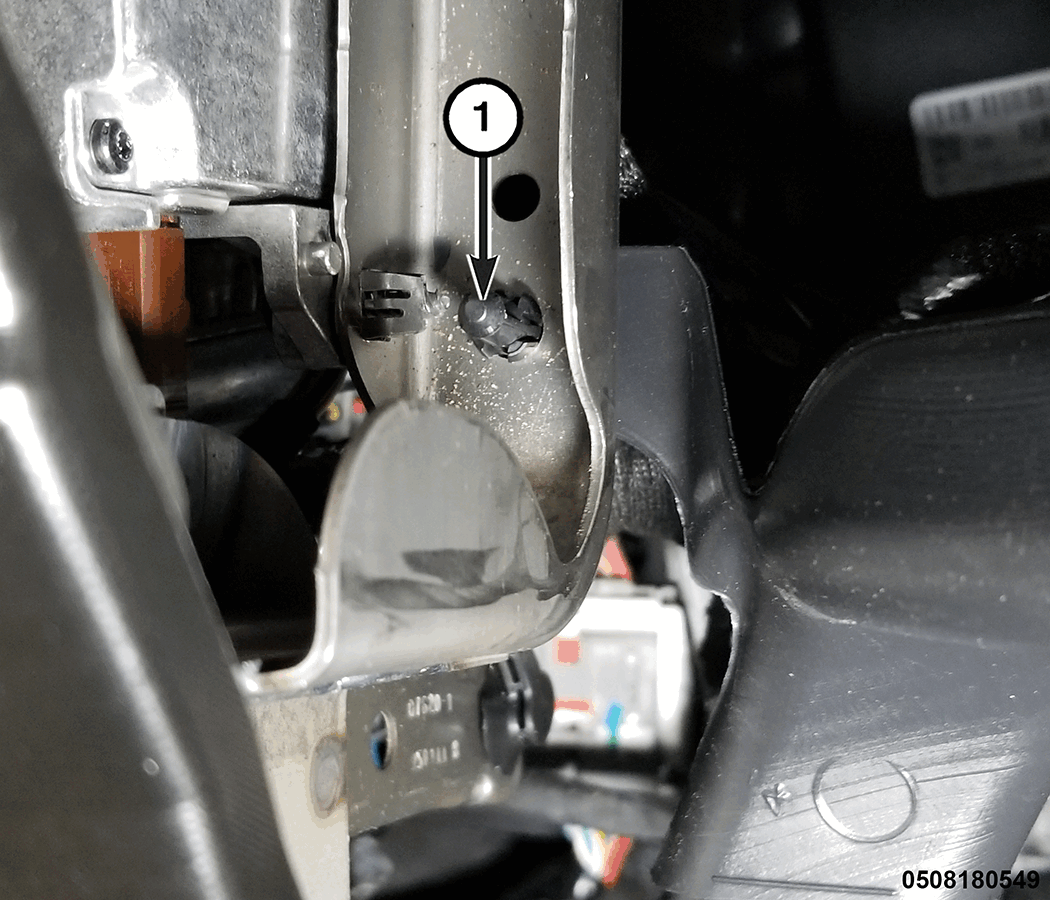

    GC0204547Courtesy of CHRYSLER GROUP, LLC
    1 - Floor Duct Mounting Clip
  9. Remove the floor duct mounting clip.

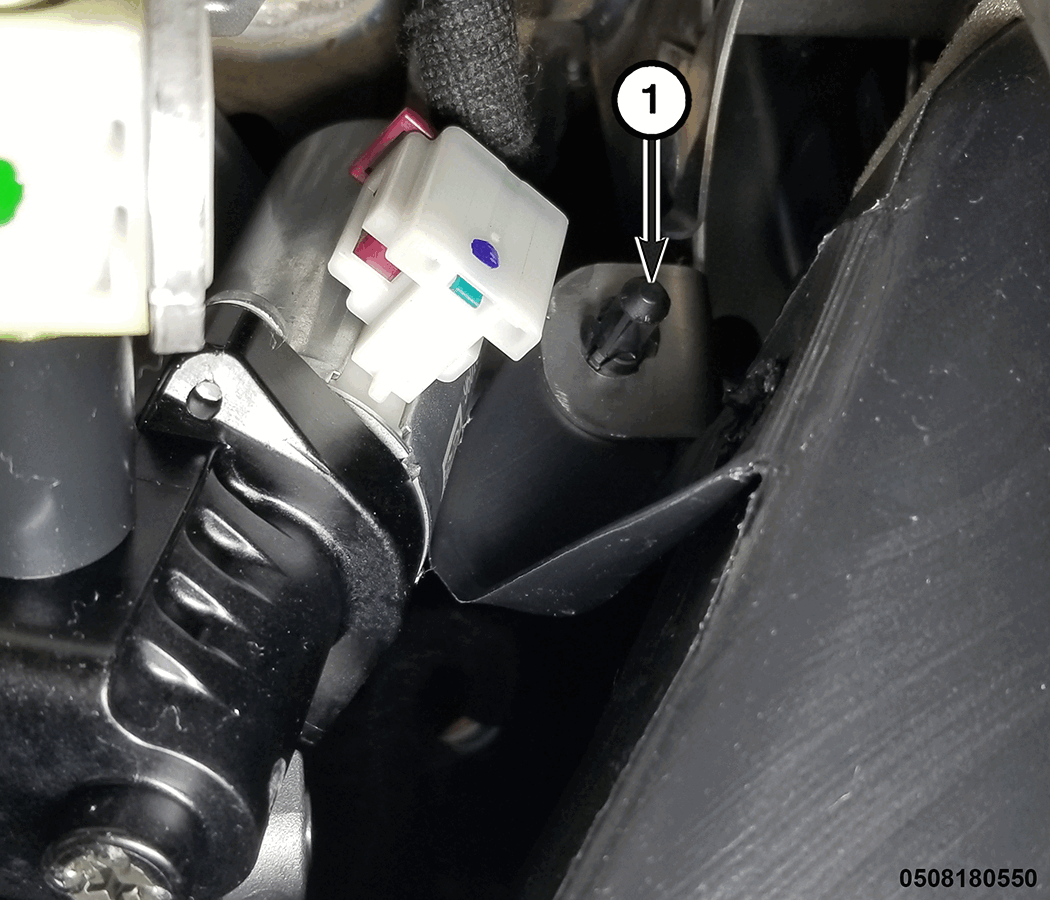

    GC0204140Courtesy of CHRYSLER GROUP, LLC
    1 - Floor Duct Mounting Clip
  10. Remove the floor duct mounting clip and remove the driver floor duct.

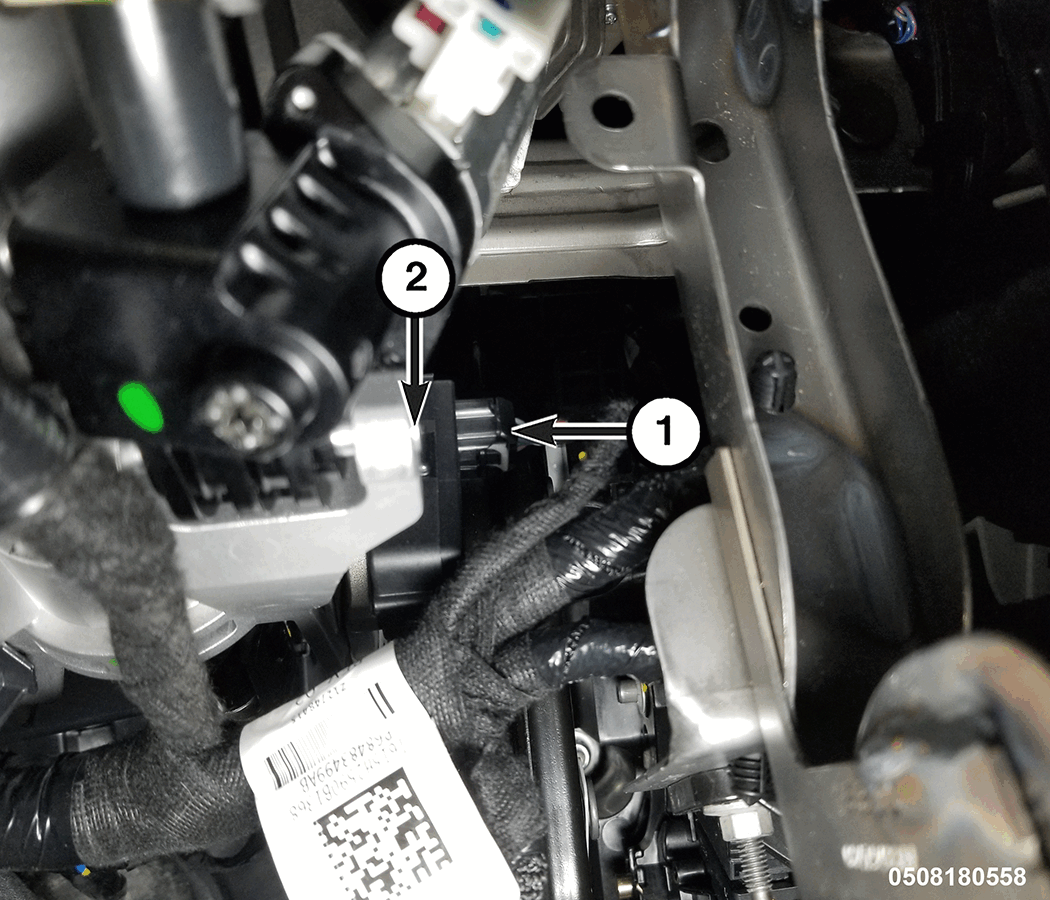

    GC0204156Courtesy of CHRYSLER GROUP, LLC
    1 - CSWSM Wire Harness Connector
    2 - CSWSM Screws
  11. Disconnect the Comfort Seat and Wheel Surface Module (CSWSM) wire harness connector.
  12. Remove the CSWSM screws and remove the CSWSM from the steering column.

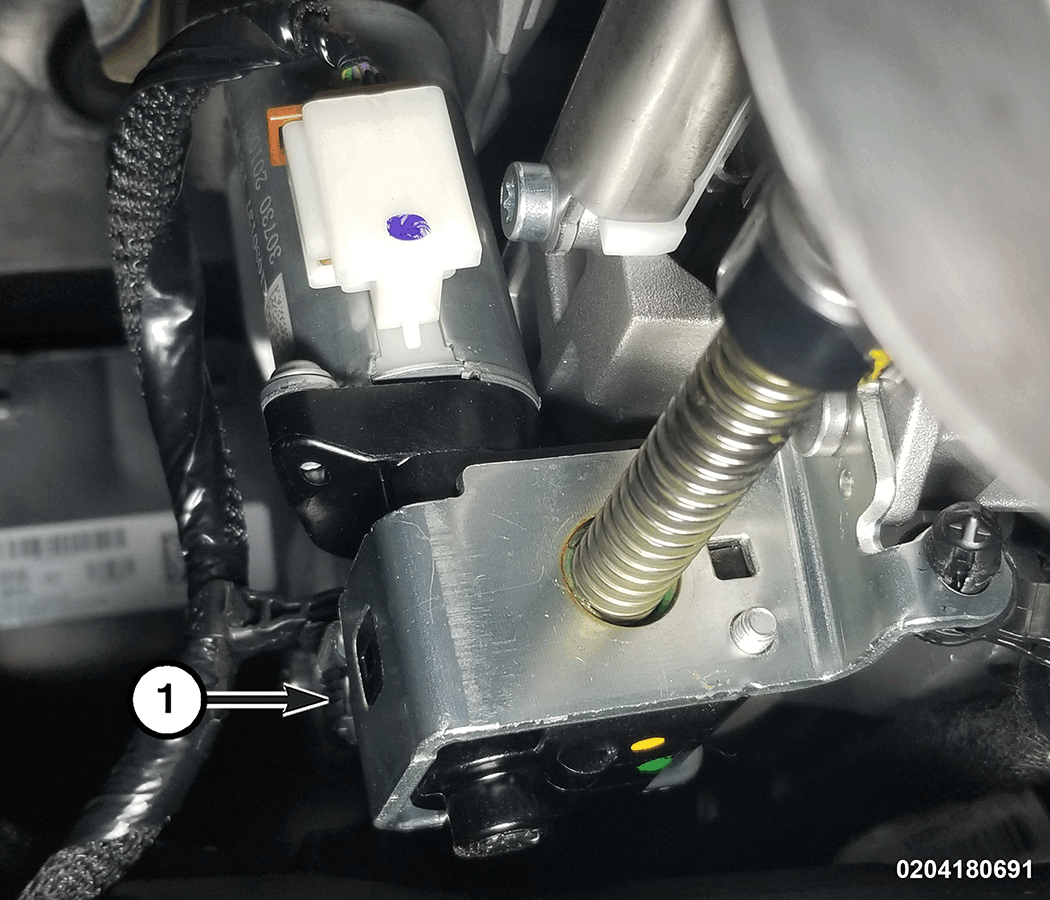

    GC0204675Courtesy of CHRYSLER GROUP, LLC
    1 - Wire Harness Routing Clip
  13. Disengage the wire harness routing clip.

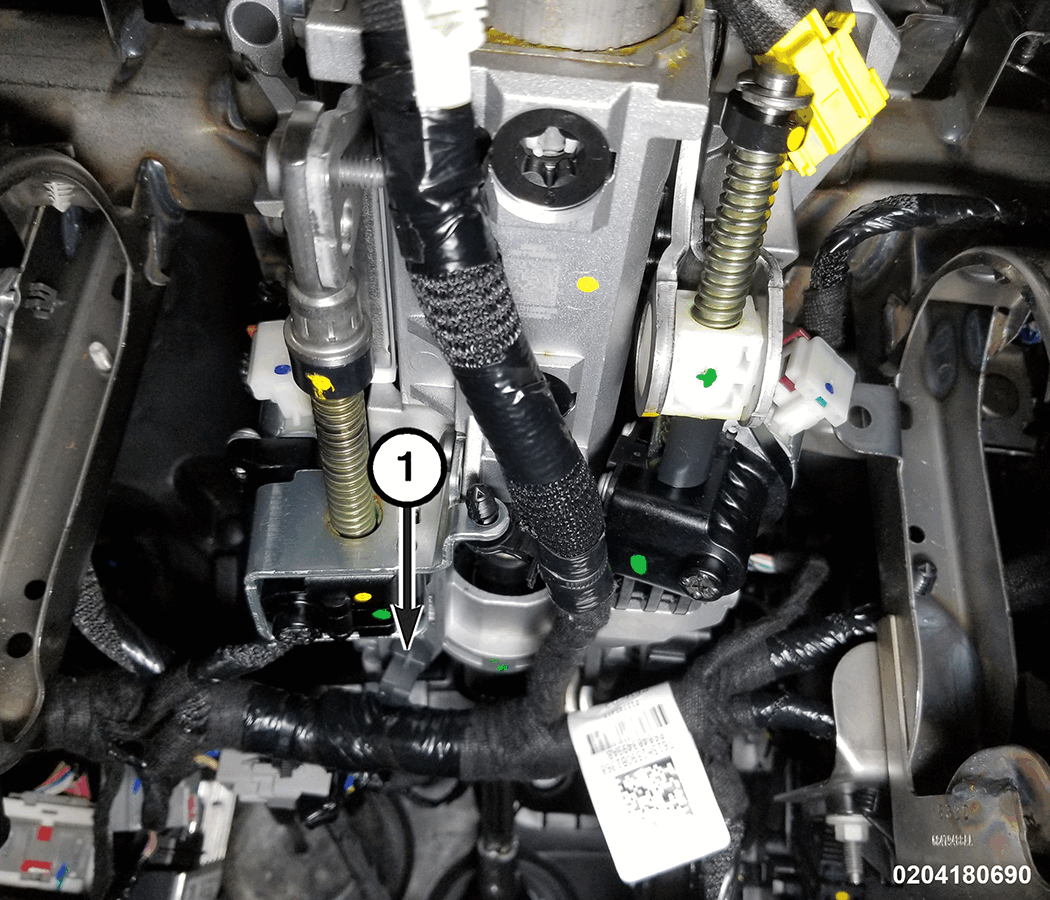

    GC0204561Courtesy of CHRYSLER GROUP, LLC
    1 - Wire Harness Routing Clip
  14. Disengage the wire harness routing clip.

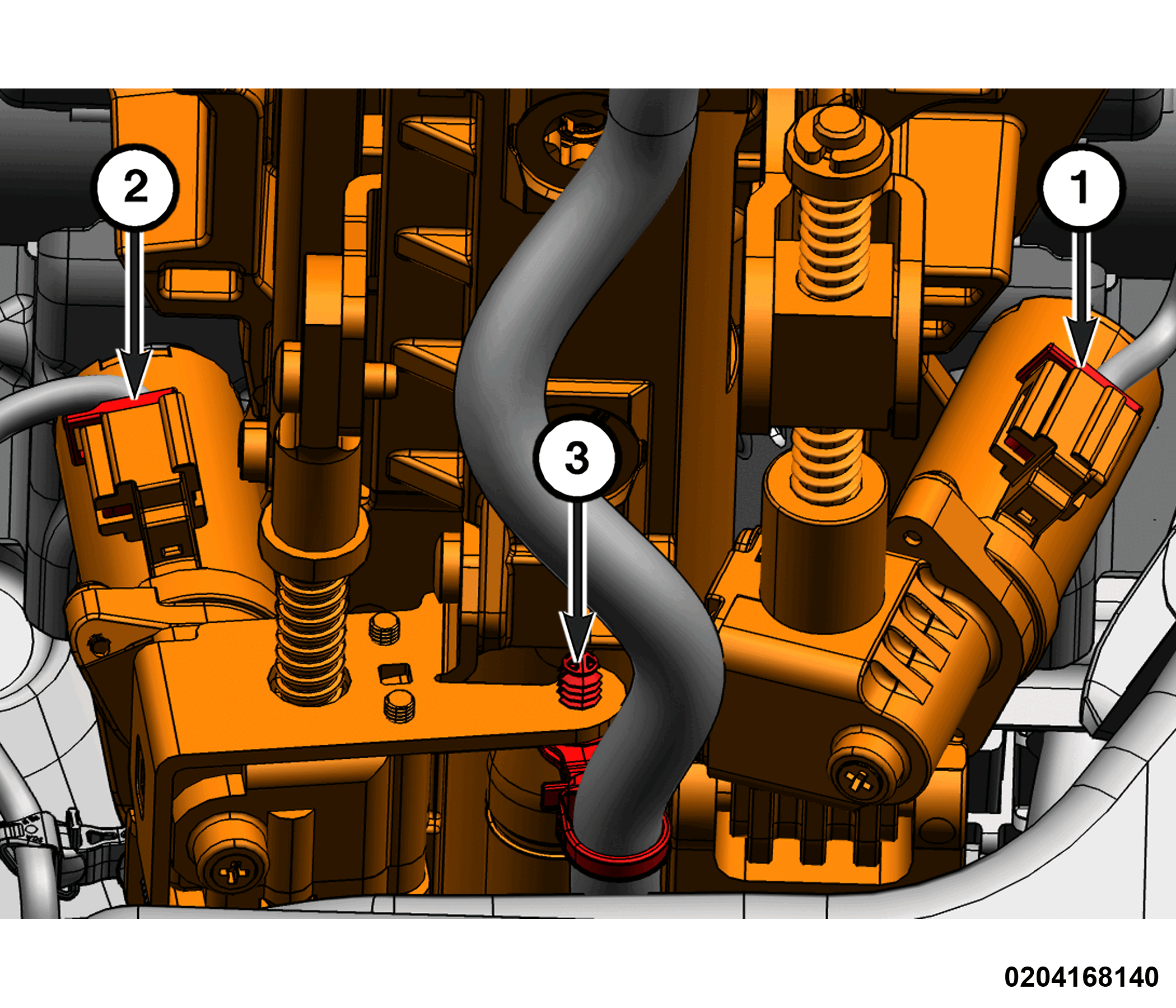

    GC0204572Courtesy of CHRYSLER GROUP, LLC
    1-2 - Wire Harness Connector
    3 - Wire Harness Routing Clip
  15. If equipped, disconnect the steering column motor wire harness connectors and disengage the wire harness routing clip.

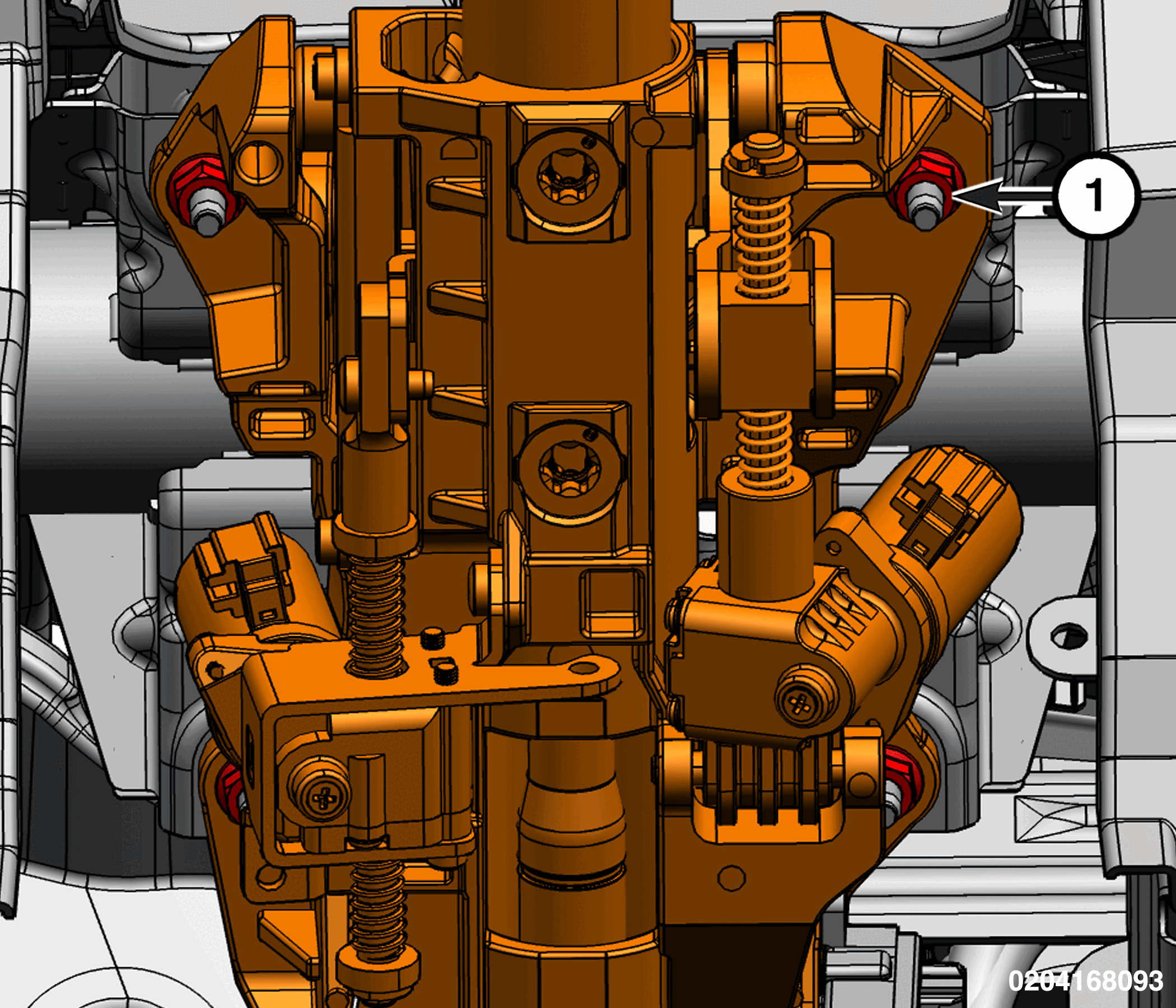

    GC0204426Courtesy of CHRYSLER GROUP, LLC
    1 - Steering Column Nuts
  16. Remove the steering column nuts.
  17. Pull the steering column shaft through bulkhead pass through and remove the steering column.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
