Transmission Range Sensor

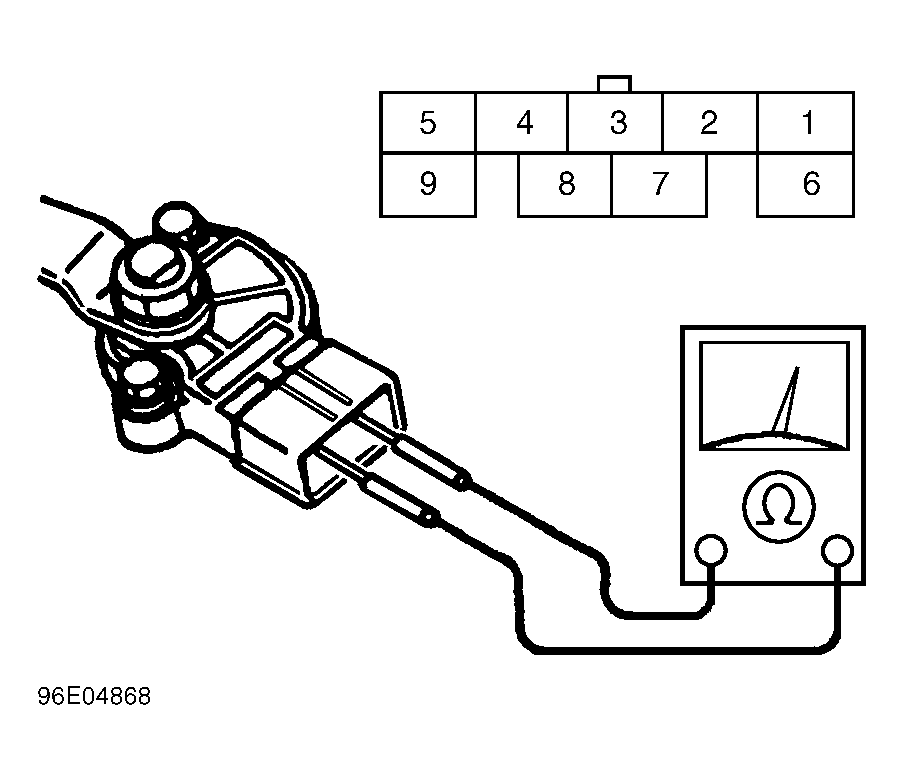

Transmission range sensor is located below battery, on transmission. Disconnect transmission range sensor. Check continuity of transmission range sensor. See TRANSMISSION RANGE SENSOR . See Fig 1 . If sensor does not test as specified, adjust or repair as needed.
TRANSMISSION RANGE SENSOR
| Gear Position | Continuity Between Terminals No. |
|---|---|
| Park | 1 & 5, 6 & 9 |
| Reverse | 2 & 5 |
| Neutral | 15 & 7, 6 & 9 |
| Drive | 4 & 5 |
| Second | 5 & 8 |
| First | 3 & 5 |
