Fresh/Recirculated Air Switch

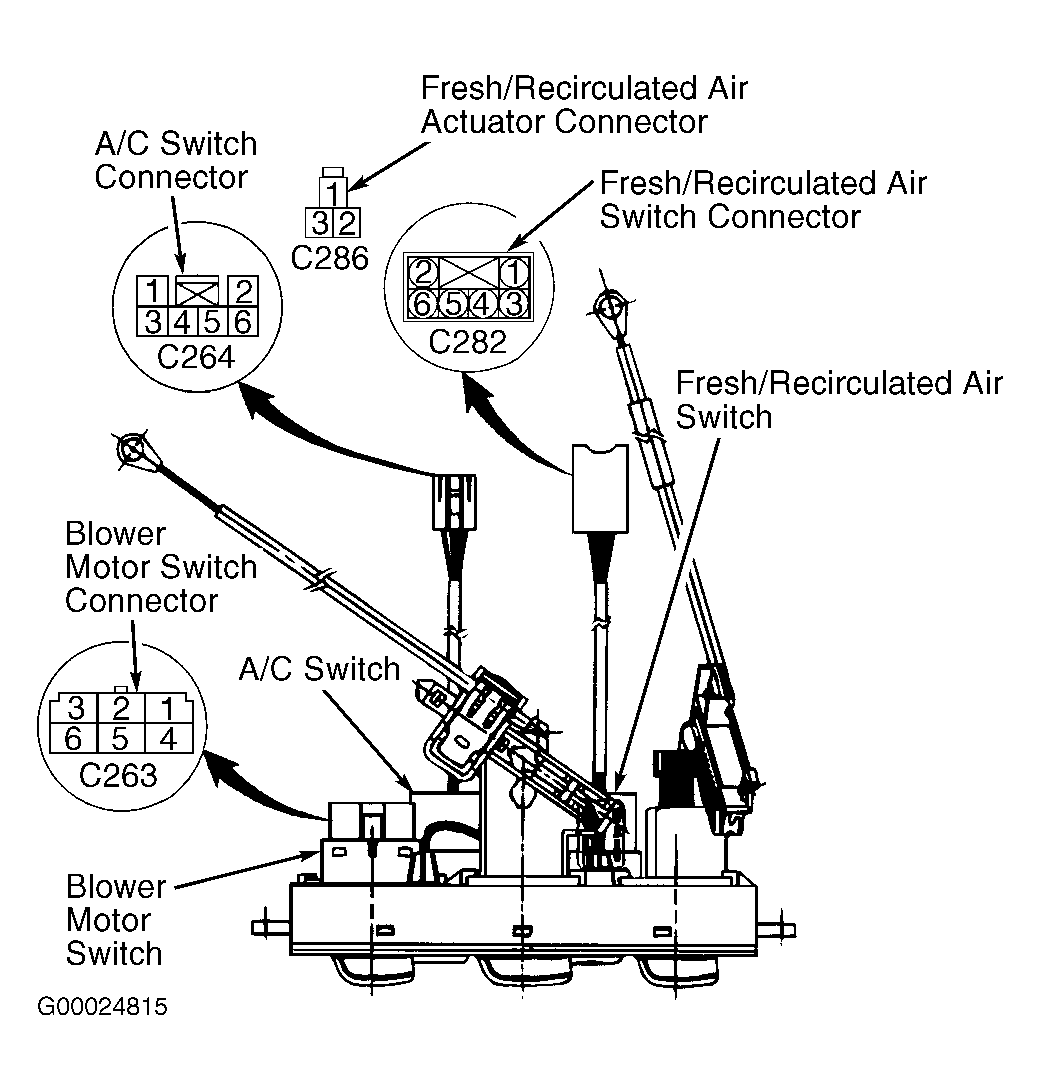

Remove climate (A/C-heater) control panel from instrument panel enough to gain access to fresh/recirculated air switch 6-pin connector. See Figure . Disconnect fresh/recirculated air switch 6-pin connector. Check continuity between specified fresh/recirculated air switch 6-pin connector terminals. See FRESH/RECIRCULATED AIR SWITCH CONTINUITY table. If continuity is not as specified, replace fresh/recirculated air switch.

FRESH/RECIRCULATED AIR SWITCH CONTINUITY

Check Continuity Between Terminals No.

Continuity

1 & 2

⁽¹⁾ Yes

1 & 5

⁽¹⁾ Yes

4 & 6

⁽¹⁾ Yes

1 & 5

⁽²⁾ Yes

1 & 3

⁽²⁾ Yes

4 & 6

⁽²⁾ Yes

⁽¹⁾	With fresh/recirculated air switch in fresh air position.

⁽²⁾	With fresh/recirculated air switch in recirculated air position.
