Traction Control: Anti-Lock: Description
CAUTION:
See ANTI-LOCK BRAKE SAFETY PRECAUTIONS article in GENERAL INFORMATION.

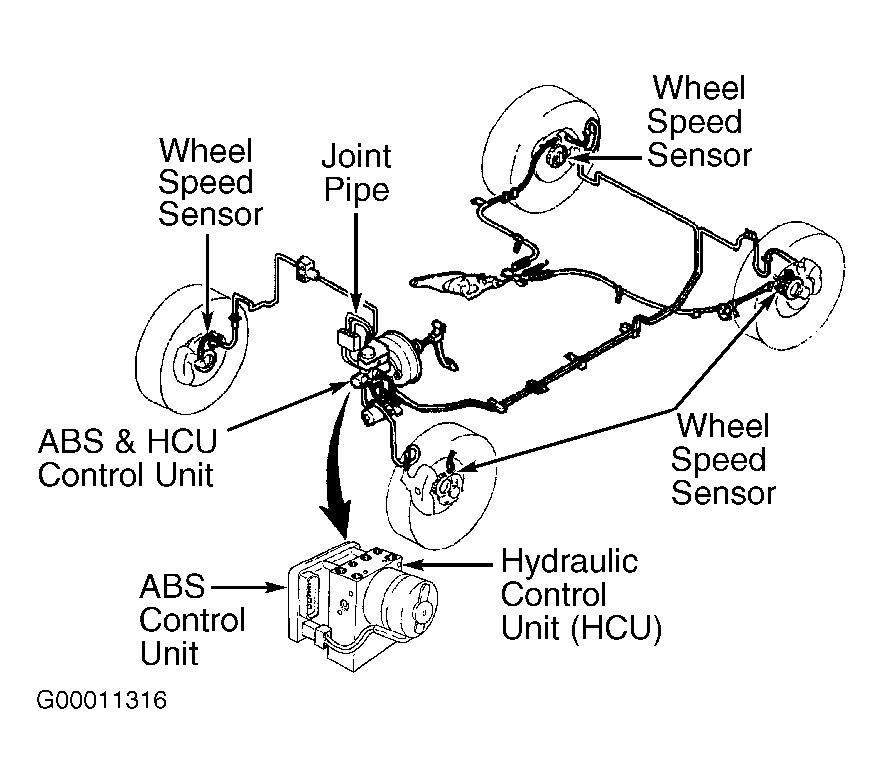

The optional Anti-Lock Brake System (ABS) operates on all wheels. Wheel speed sensors and ABS control unit monitor all 4 wheels and can adjust hydraulic pressure to each wheel, maintaining optimum braking by preventing wheel lock-up. The ABS system consists of 4 wheel speed sensors, rear disc brakes, ABS control unit and a Hydraulic Control Unit (HCU). See Fig 1 .
