Removal And Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the lower crash pad.
  3. Remove the bolts holding the ETACS module and disconnect the connectors.

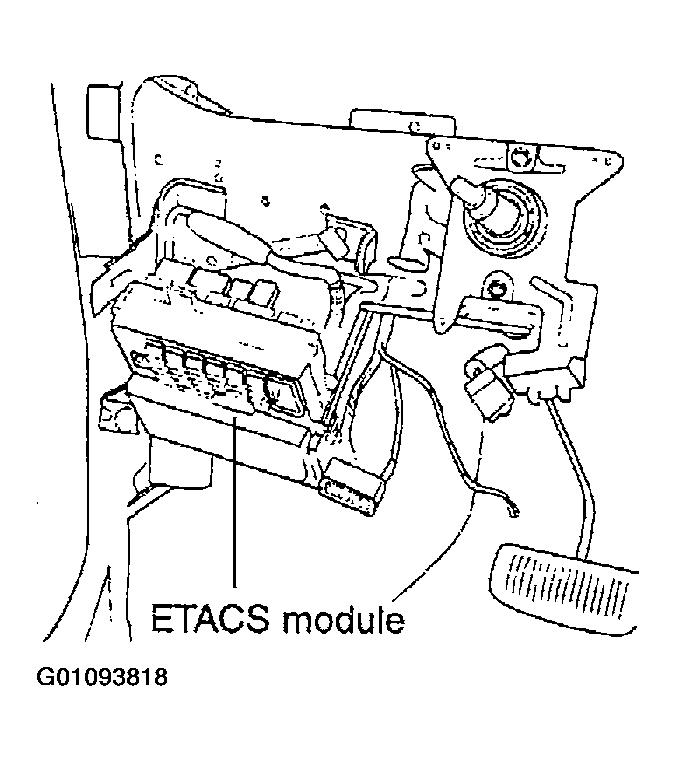

    Fig 1: Locating ETACS Module
    G01093818
  4. Installation is the reverse of removal.
