How to Read System Circuit Diagram/Connector Diagram

System circuit diagram/connector diagram

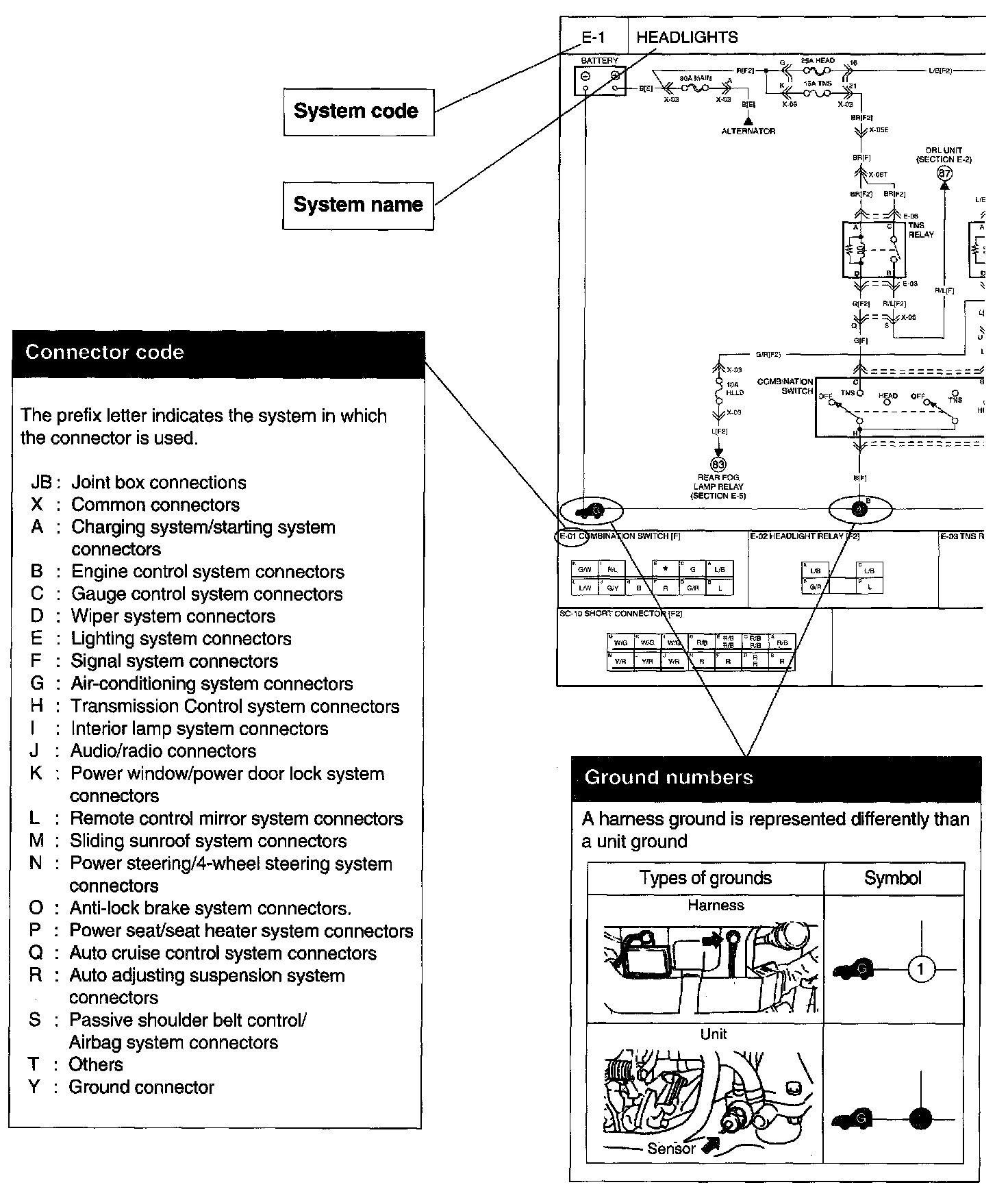

Part 1:

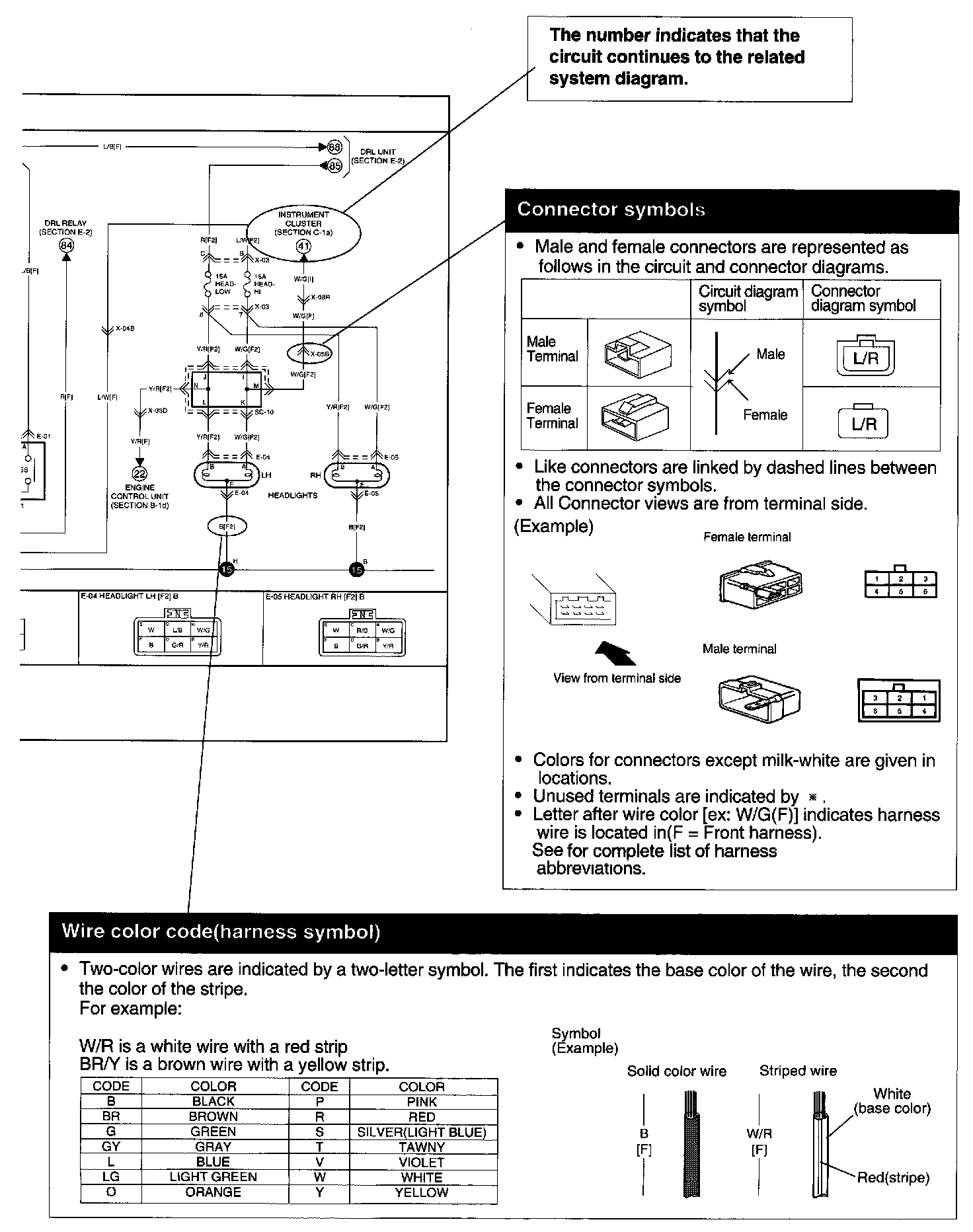

Part 2:





These diagrams show the circuits for each system, from the power supply to the ground. The power supply side is on the upper part of the page, the ground side on the lower part. The diagrams describe circuits with the ignition switch off. An explanation of the various points are as given in the diagram.
