Spring And Retainer Assembly

  1. Measure spring free length and check for deformation.

    Free length: 0.805 in. (20.45 mm)

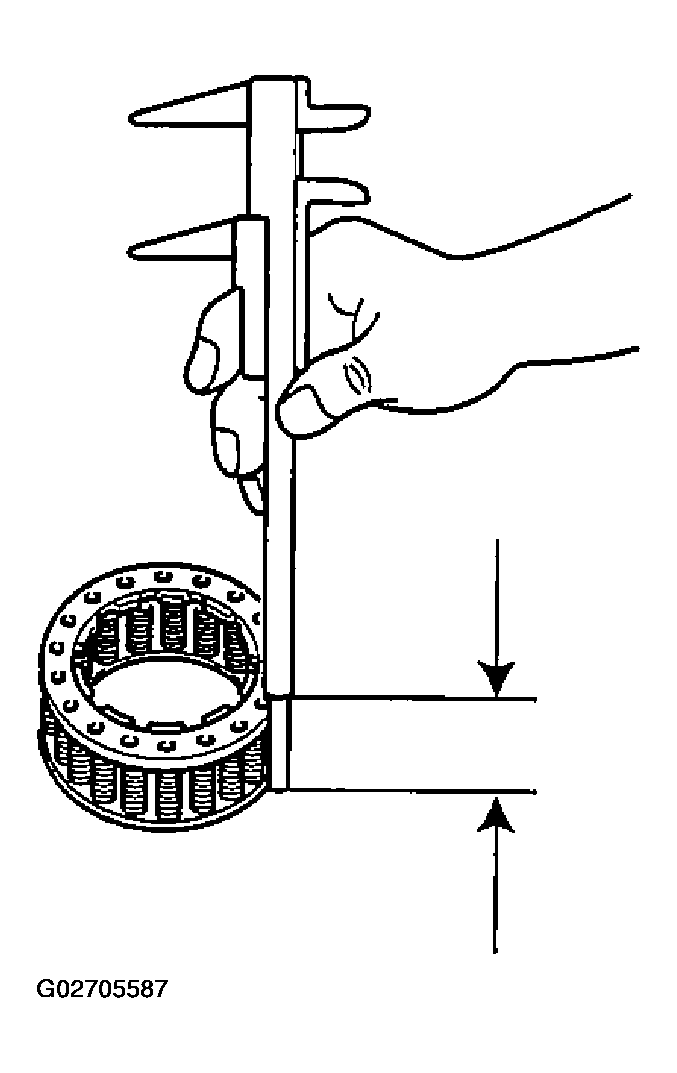

    Fig 1: Measuring Spring Free Length
    G02705587
  2. If not within specification, replace spring and retainer assembly.
