Code Saving Switch Method

  1. Remove the center facia panel.

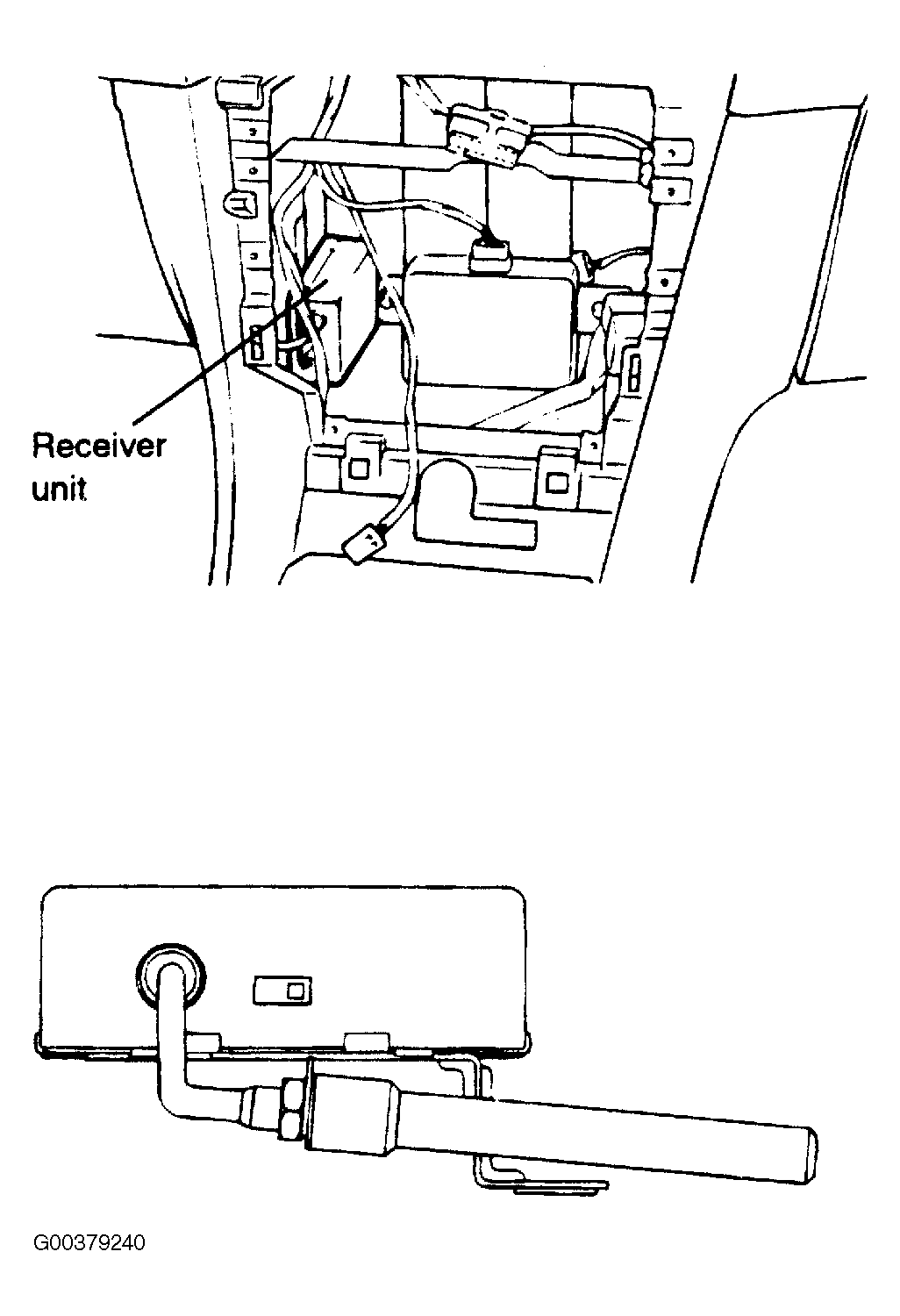

    Fig 1: Illustrating Receiver Unit/Switch Assembly
    G00379240Courtesy of KIA MOTORS AMERICA, INC.
  2. To store new codes:
    • Activate the keyless entry/receiver unit and change the code saving switch of the receiver unit from "OFF" to "SET"
    • Press door lock and door unlock buttons of the transmitter for 1 second simultaneously.
    • Press door lock or door unlock buttons of the transmitter for 1 second again.
    • Save the 2nd transmitter codes in the same manner.
  3. Return the code saving switch of the receiver unit from "SET" to "OFF".
  4. Check the operation of the keyless entry system.
  5. Install the center facia.
