Humidity Sensor: Notes

  1. Humidity sensor is located at the rear package tray and detected in-car humidity for in-car humidity control.

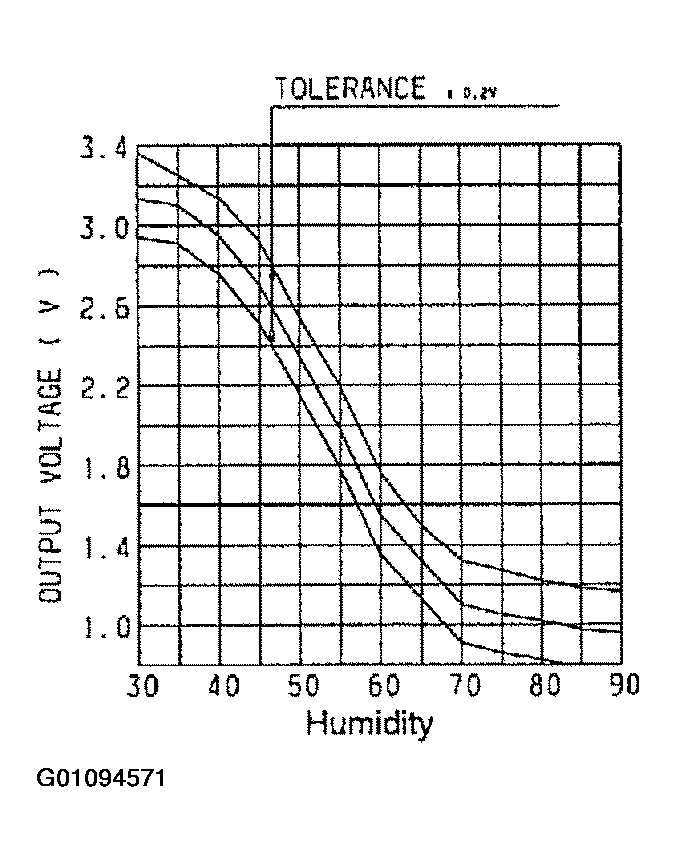

    Fig 1: Checking In-Car Humidity
    G01094571Courtesy of KIA MOTORS AMERICA, INC.
  2. If ambient air temperature or in-car humidity is outside certain range, it will turn on A/C to control in-car humidity preventing in-car fogging. Air conditioner operation depending on ambient temperature and humidity.
