Mirrors: Service and Repair

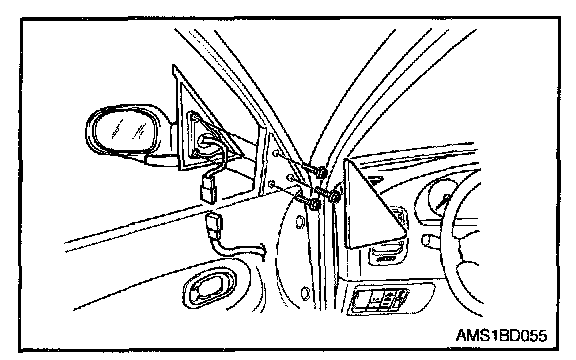

OUTSIDE REARVIEW MIRROR ASSEMBLY




REMOVAL
1. Disconnect negative battery cable.
2. Remove garnish.
3. Remove three rear view mirror assembly retaining bolts.
4. Pull out outside rear view mirror assembly and disconnect harness connector.
5. Remove outside rear view mirror assembly.

INSTALLATION
1. Position outside rear view mirror assembly on door.
2. Install three retaining bolts.
3. Connect harness connector.
4. Install garnish.
5. Connect negative battery cable.
