I-1b

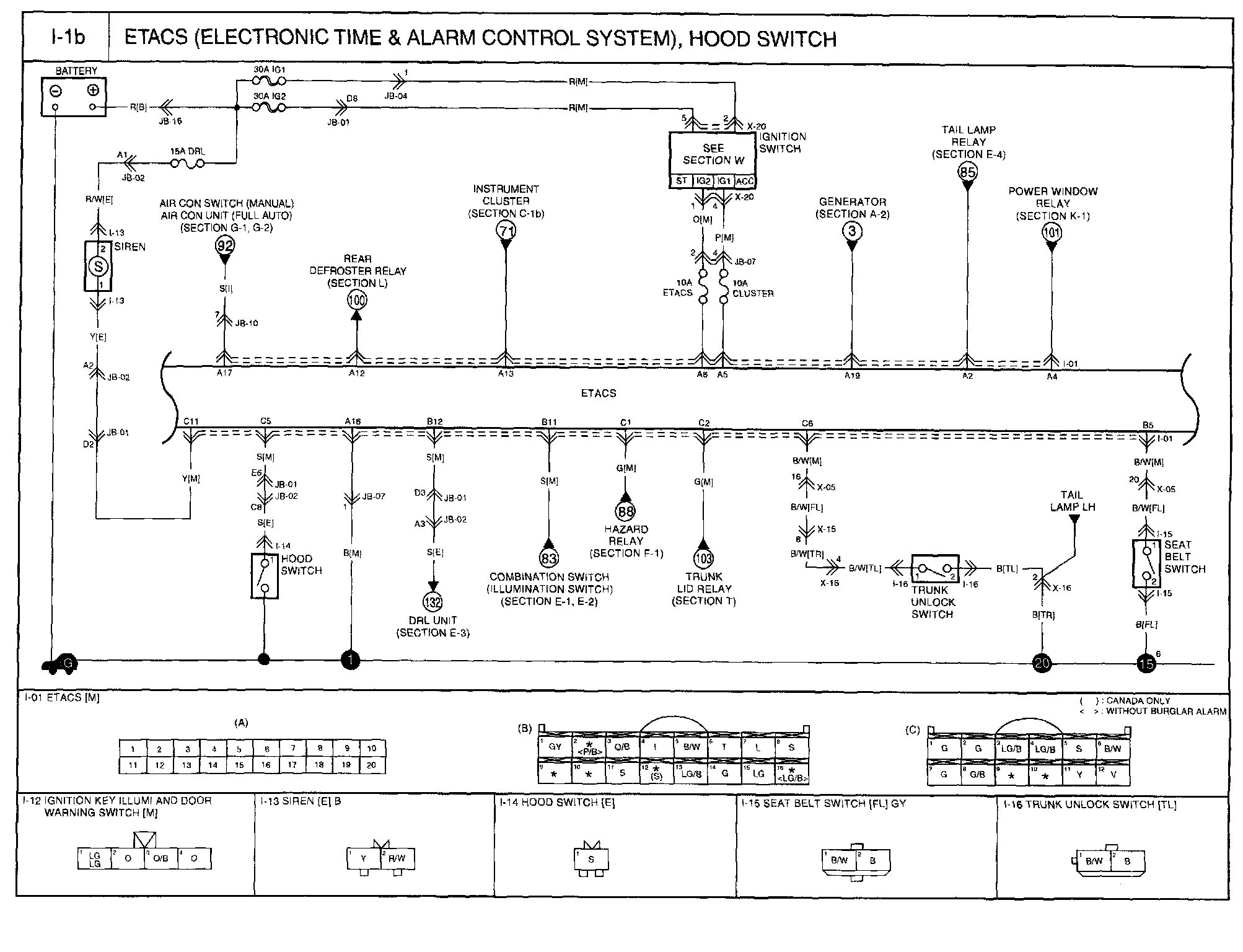

I-1b - ETACS (Electronic Time & Alarm Control System), Hood Switch Circuit:

NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
