Test Light

Test Light

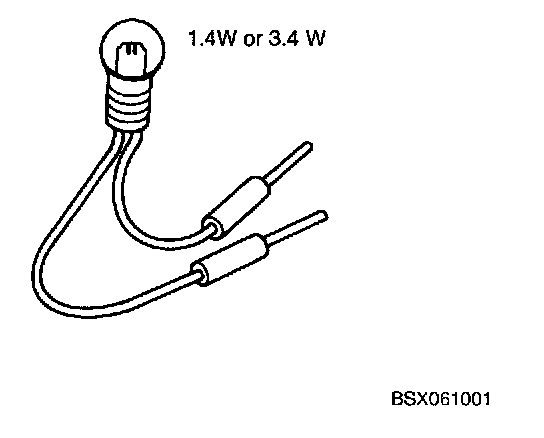

The test light, as shown in figure, uses a 12 V bulb. The two lead wires should be connected to probes. The test light is used for simple voltage checks and in checking for short circuits.






CAUTION: When checking the engine control module (ECM), never use a bulb exceeding 3.4 W
