Master Power Window Switch

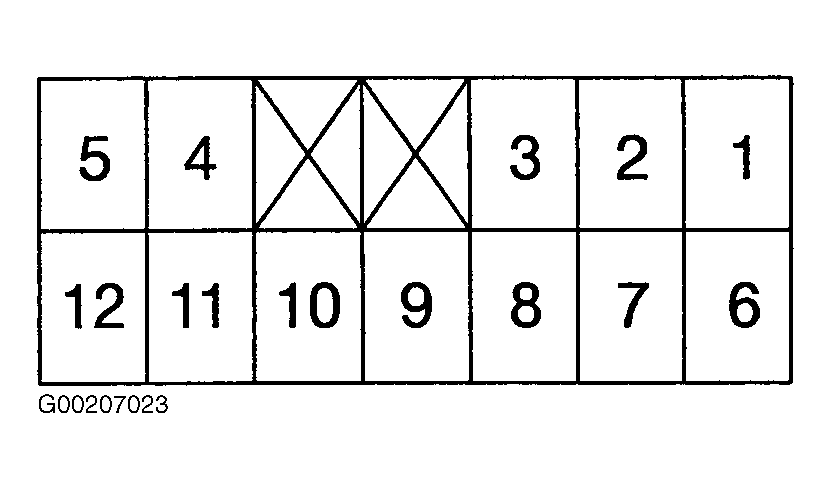

Turn ignition switch to OFF position. Disconnect master power window switch harness connector. Using an ohmmeter, check for continuity between specified switch terminals while operating switch. See MASTER POWER WINDOW SWITCH CONTINUITY . See Fig 1. If continuity is not as specified, replace master power window switch. Retest system.
MASTER POWER WINDOW SWITCH CONTINUITY
| Application & Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Left Front | ||
| UP | 2 & 7 | |
| OFF | 1, 2 & 8 | |
| DOWN | 1 & 7 | |
| Right Front | ||
| UP | 1 & 8 | |
| OFF | 1, 2 & 8 | |
| DOWN | 2 & 8 | |
| Right Rear | ||
| UP | 4 & 7 | |
| OFF | 3, 4 & 8 | |
| DOWN | 3 & 7 | |
| Left Rear | ||
| UP | 3 & 8 | |
| OFF | 3, 4 & 8 | |
| DOWN | 4 & 8 | |
