Specification Charts
General Specifications

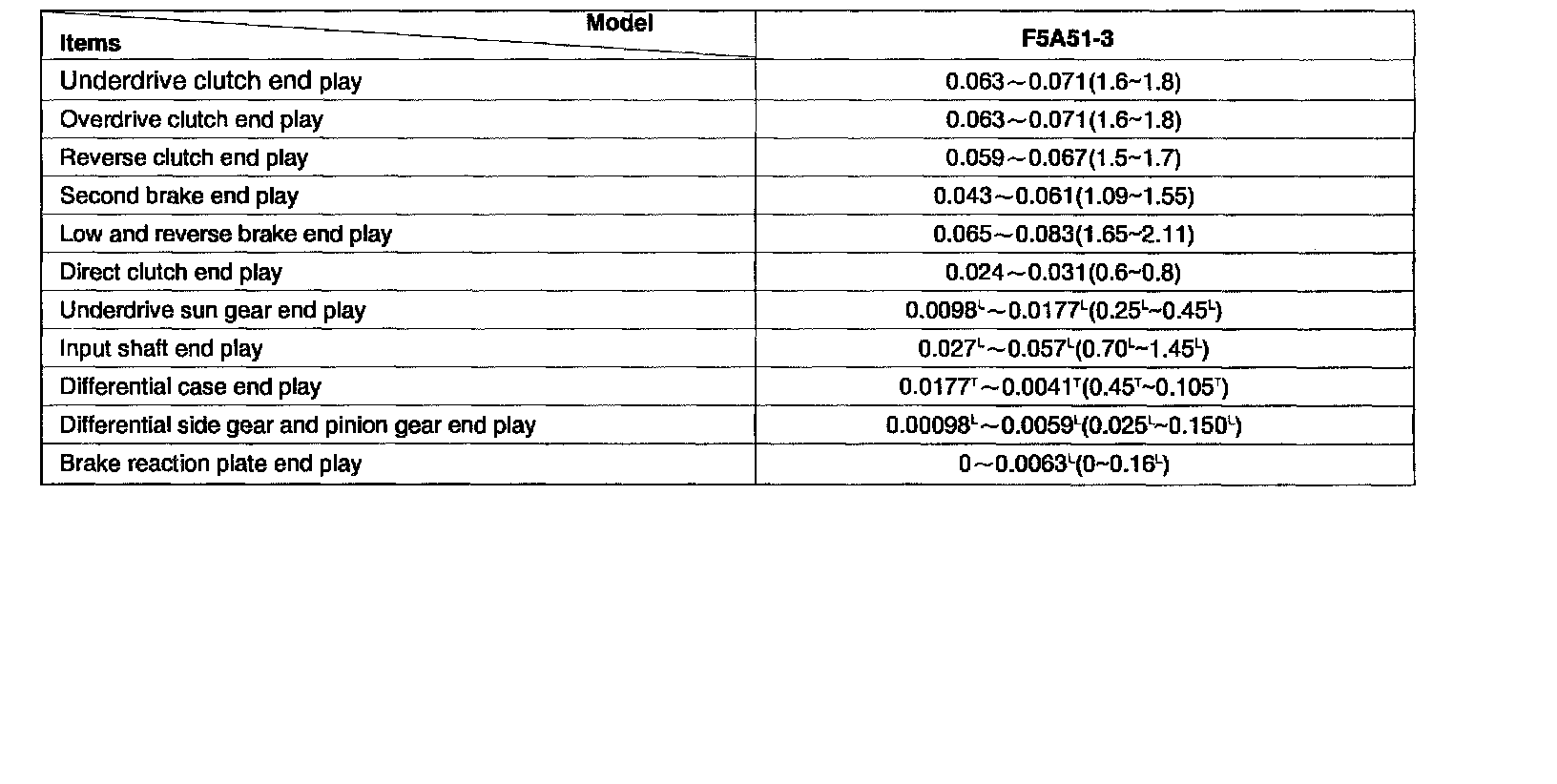

Service Specifications

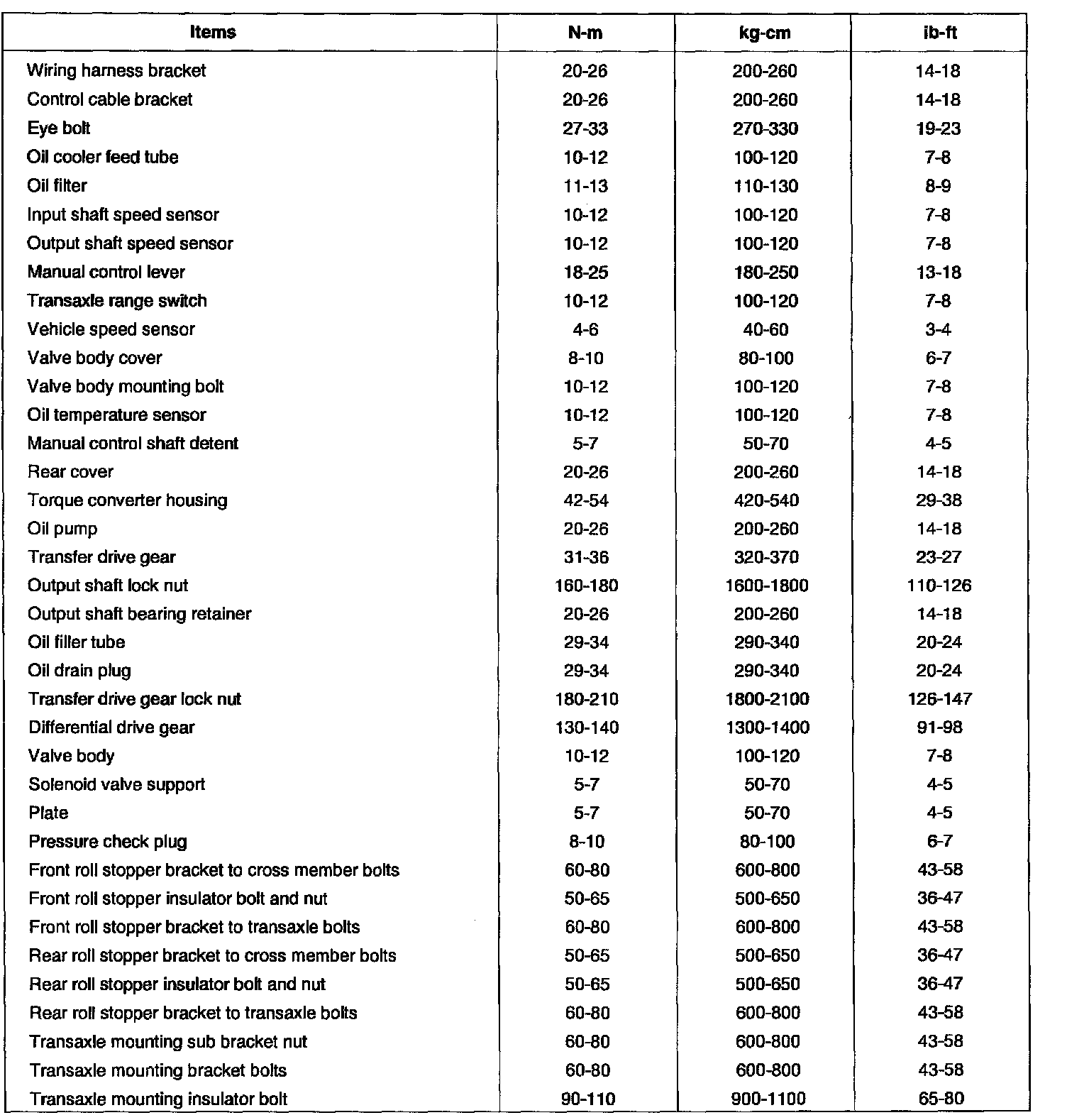

Torque Specifications
Lubricant
Sealants
WARNING: ALWAYS FOLLOW TORQUE TIGHTENING LEVELS. FAILURE TO FOLLOW SUCH LEVELS CAN RESULT IN PARTS BREAKING IF OVER-TIGHTENED OR LOOSENING IF UNDER-TIGHTENED. IN EITHER CASE, SERIOUS PERSONAL INJURY OR DEATH COULD RESULT TO THE VEHICLE OCCUPANTS.

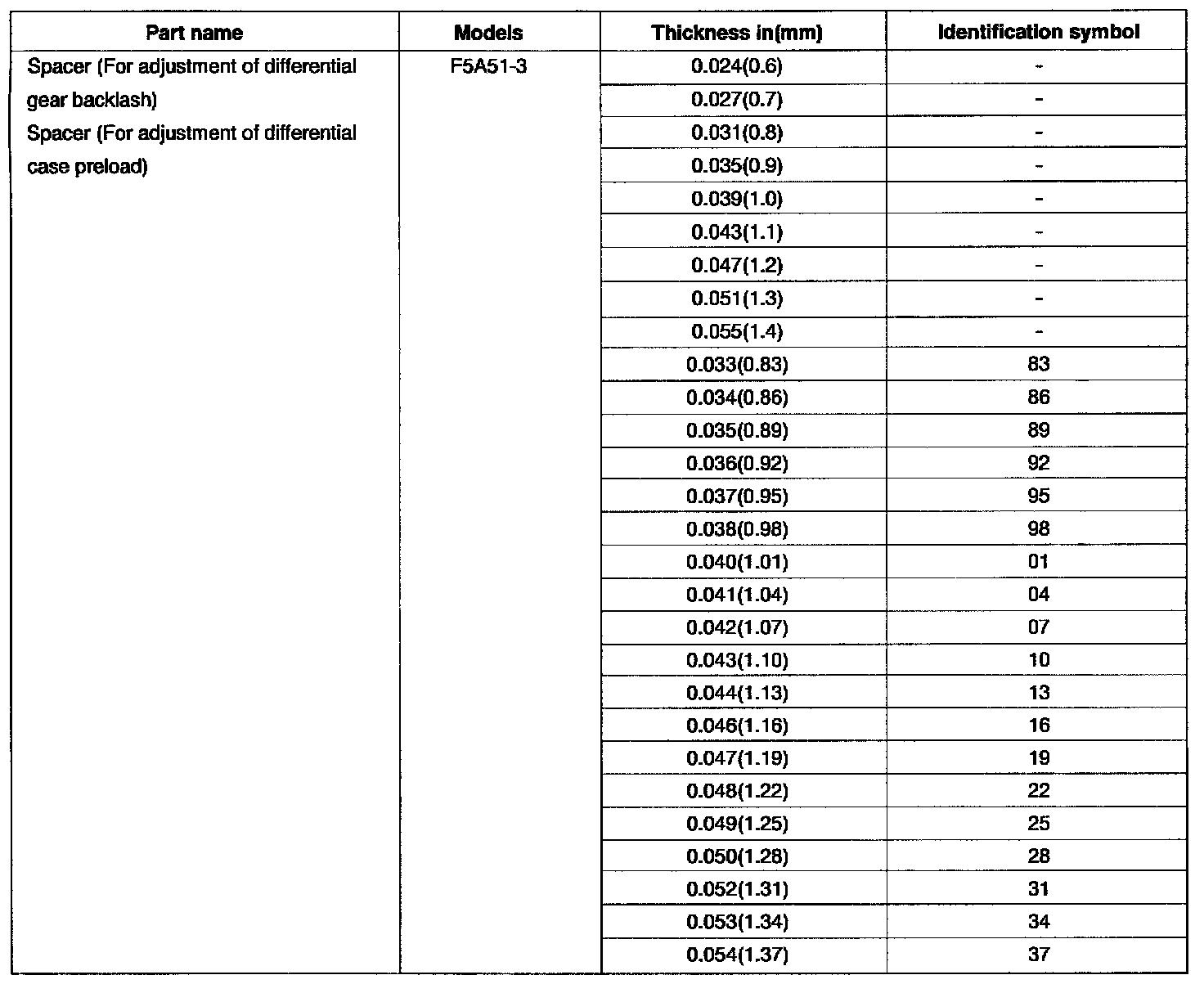

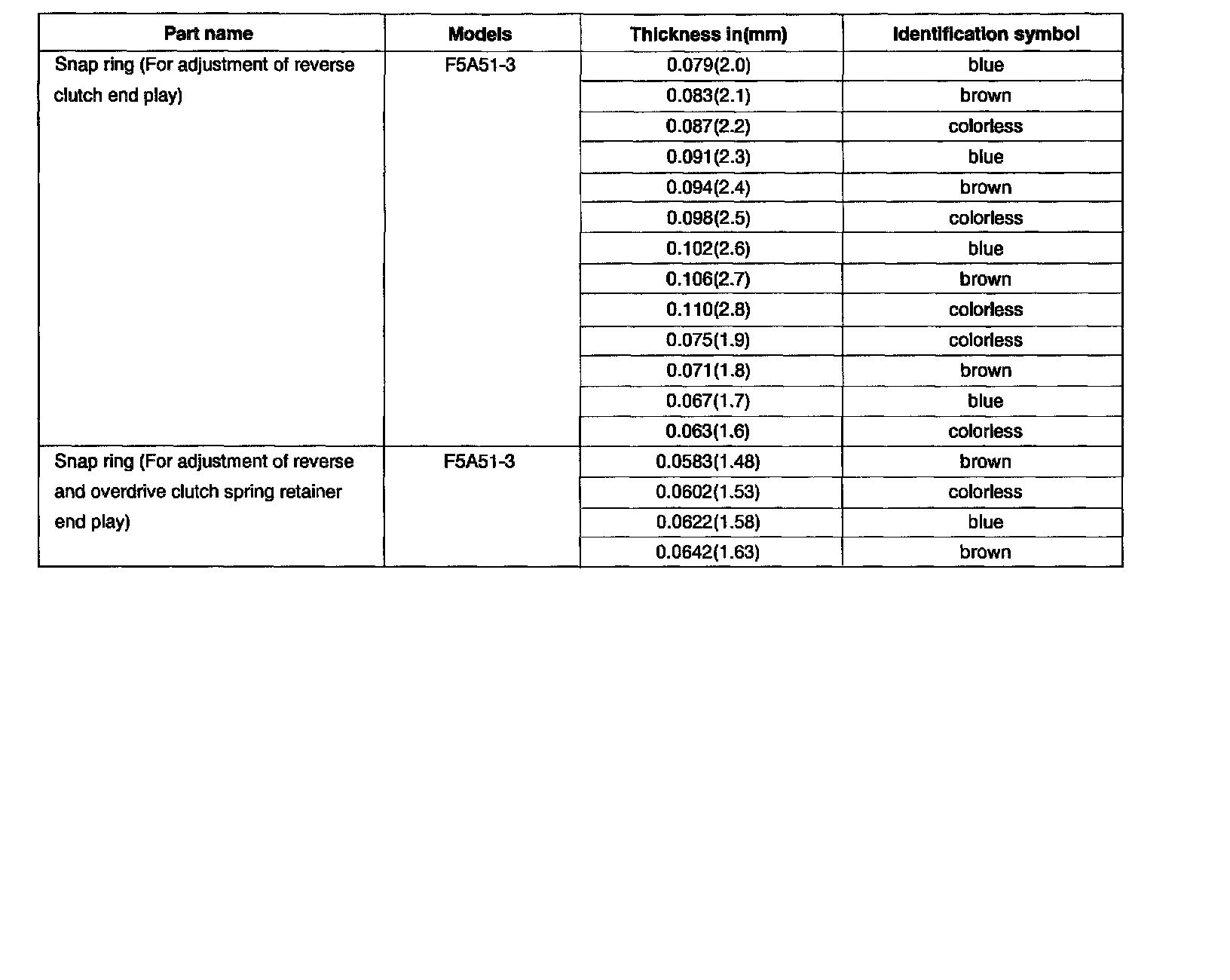

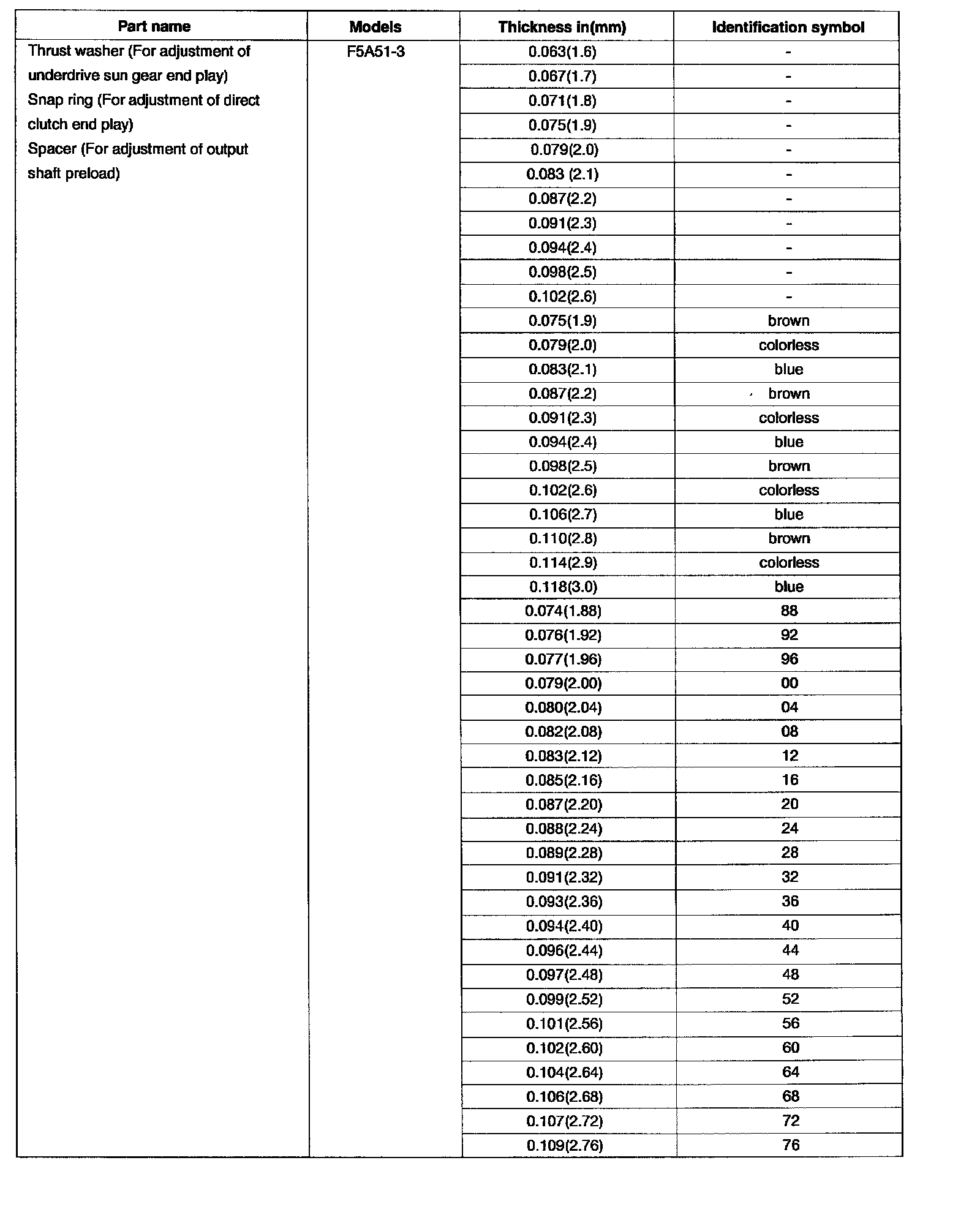

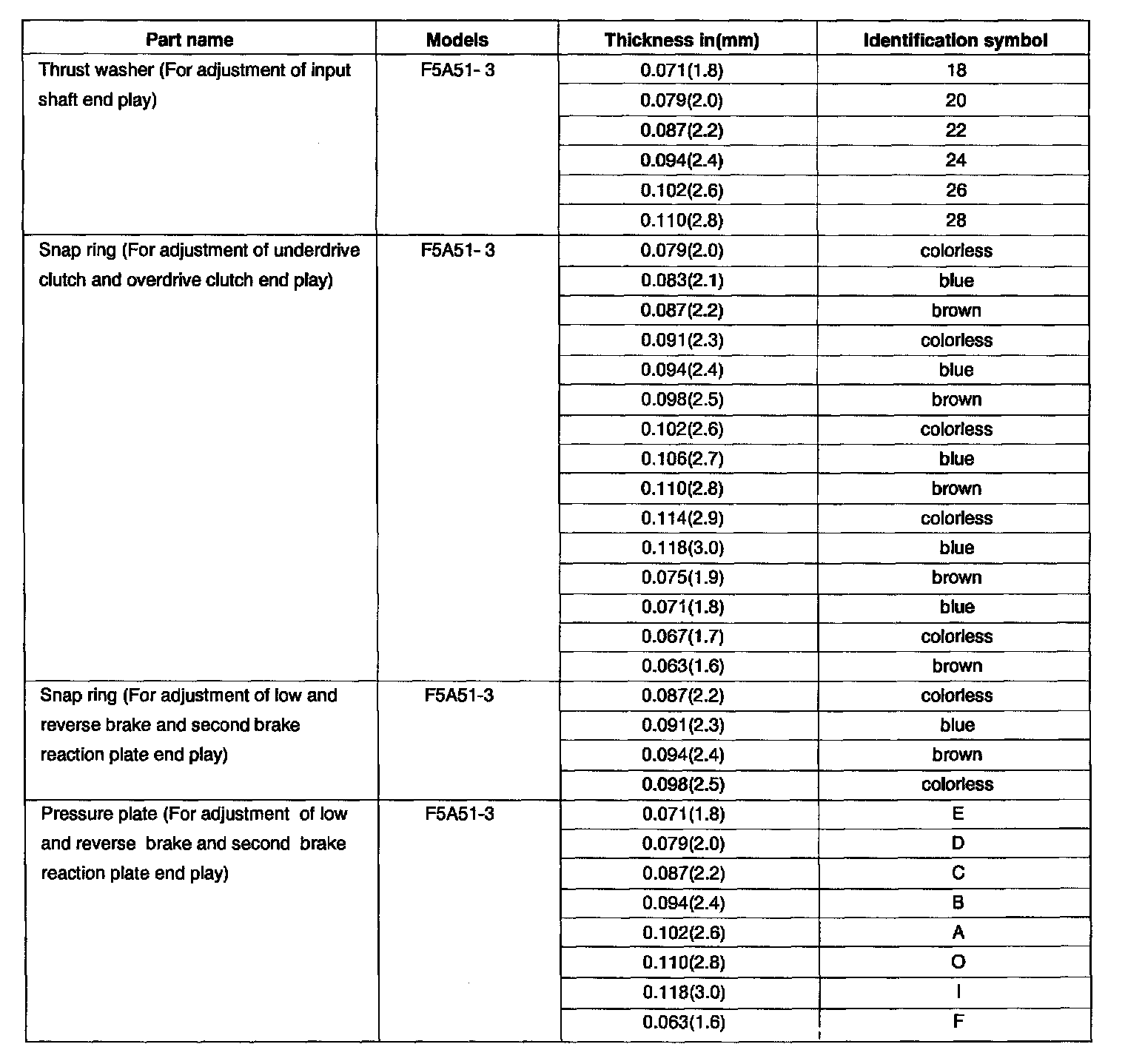

Snap ring, spacer, thrust washer and pressure plate
1 of 4
2 of 4
3 of 4
4 of 4
