Accelerator Pedal: Installation

When installing the return spring and accelerator arm, apply multi-purpose grease around each moving point of the accelerator arm.
Apply sealant to the bolt mounting hole, and tighten the accelerator arm bracket.
Tightening torque

Accelerator arm bracket bolts : 8~12 Nm (80~120 kg.cm, 6~7 lb-ft)

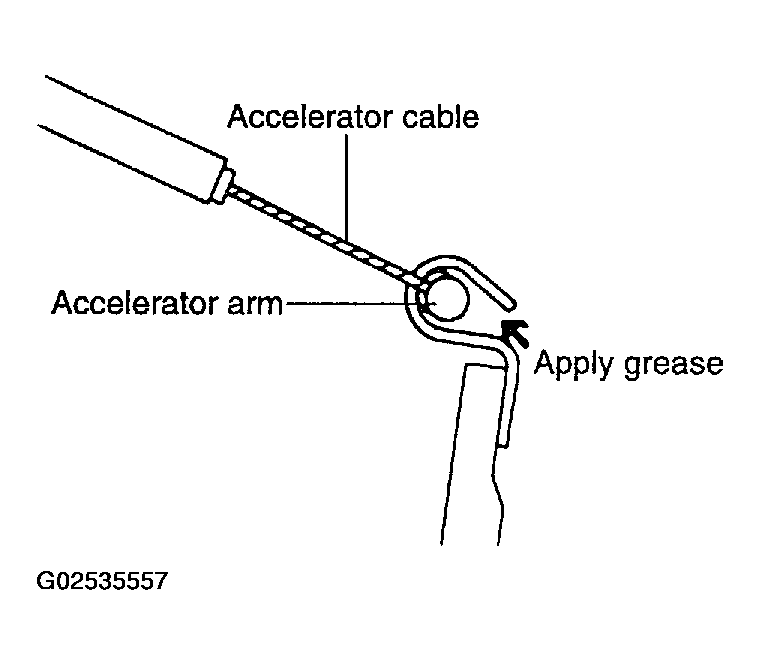

Fig 1: Applying Grease To Accelerator Cable
Courtesy of KIA MOTORS AMERICA, INC.
Securely install the resin bushing of the accelerator cable on the end of the accelerator arm.

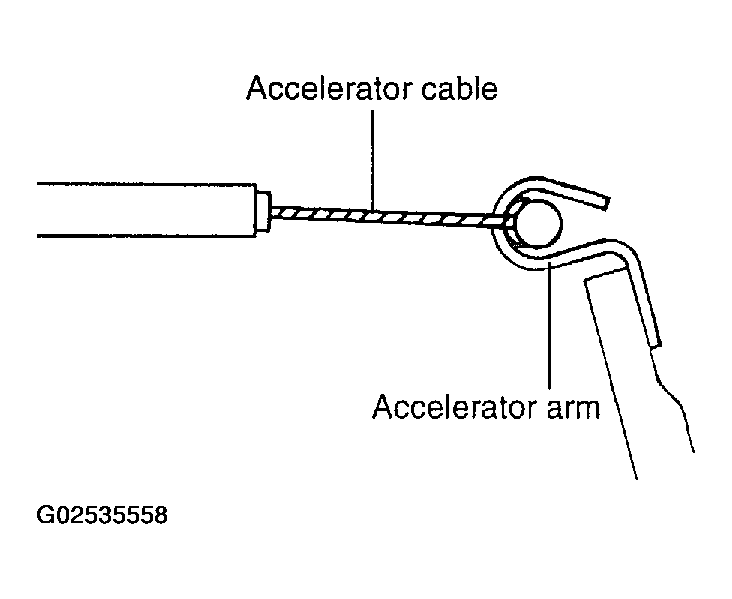

Fig 2: Securing Cable To End Of The Accelerator Arm
Courtesy of KIA MOTORS AMERICA, INC.
