ETACS Pin No. And Description

Fig 1: ETACS Connector Pinout (1 Of 2)
G01095870Courtesy of KIA MOTORS AMERICA, INC.

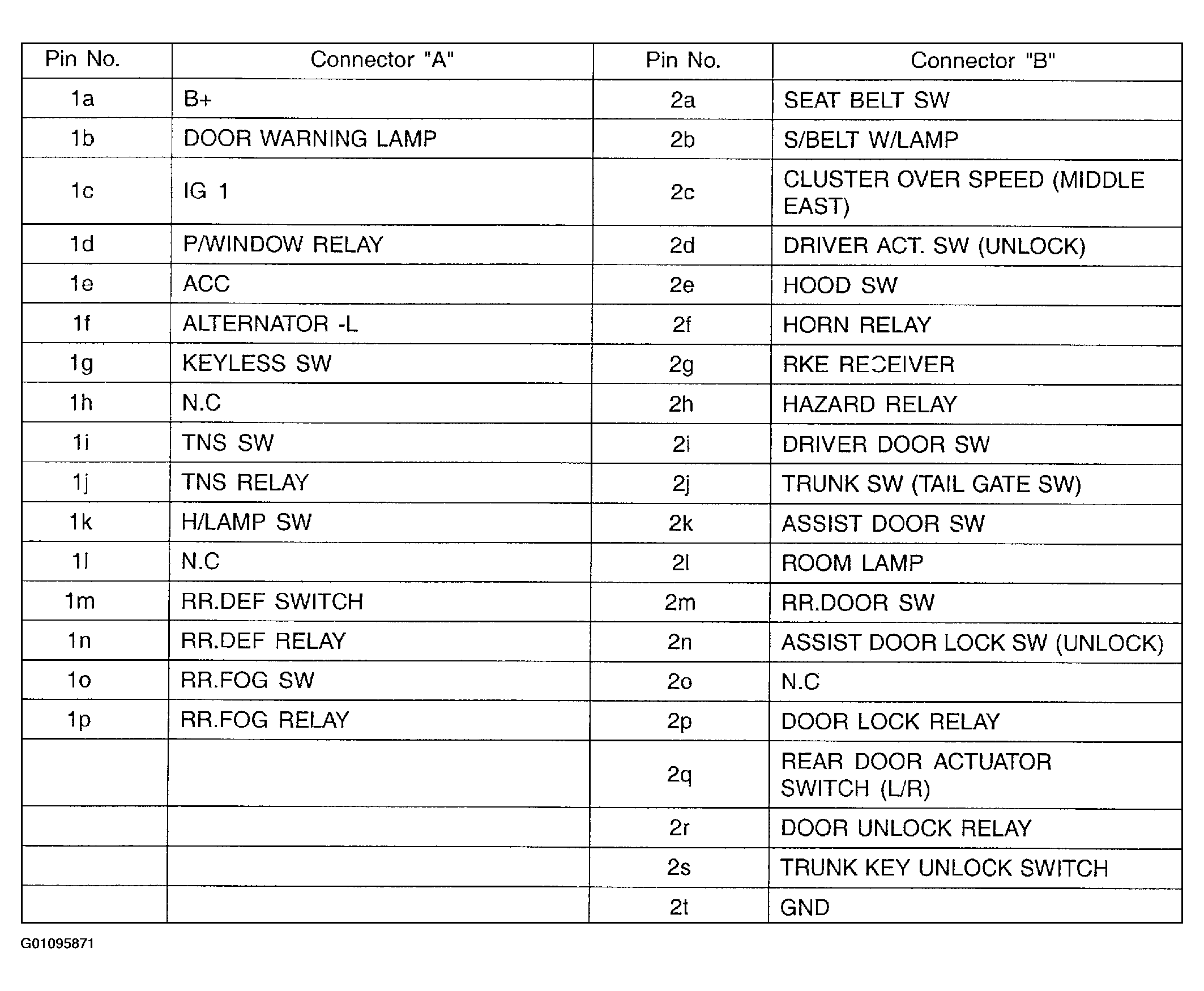

Fig 2: ETACS Connector Pinout (2 Of 2)
G01095871Courtesy of KIA MOTORS AMERICA, INC.
