Power Mirrors: Switch: Inspection

  1. Remove the power door mirror switch from the door trim panel.
  2. Check for continuity between the terminals in each switch position according to the table.

    If continuity is not as specified, replace the power door mirror switch.

    Fig 1: Power Door Mirror Switch Connector Pinout
    G01095906Courtesy of KIA MOTORS AMERICA, INC.

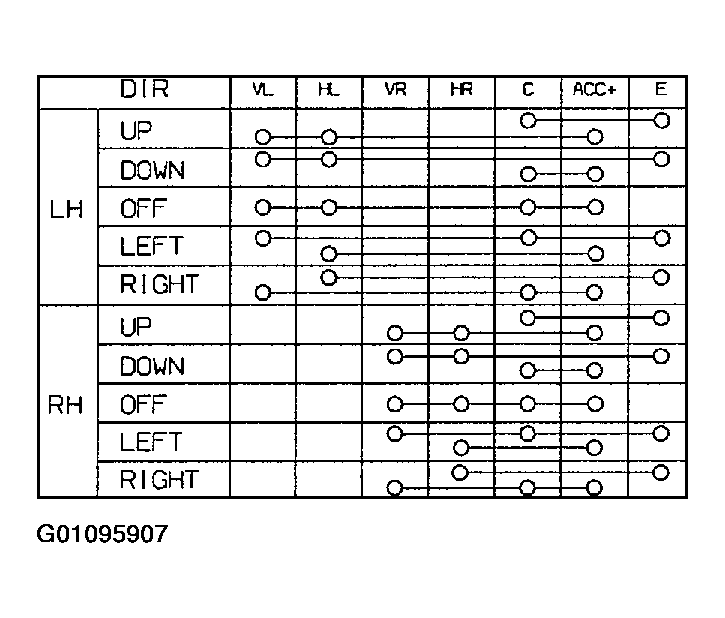

    Fig 2: Power Door Mirror Switch Function Chart
    G01095907Courtesy of KIA MOTORS AMERICA, INC.
