Steering System: General: Specification

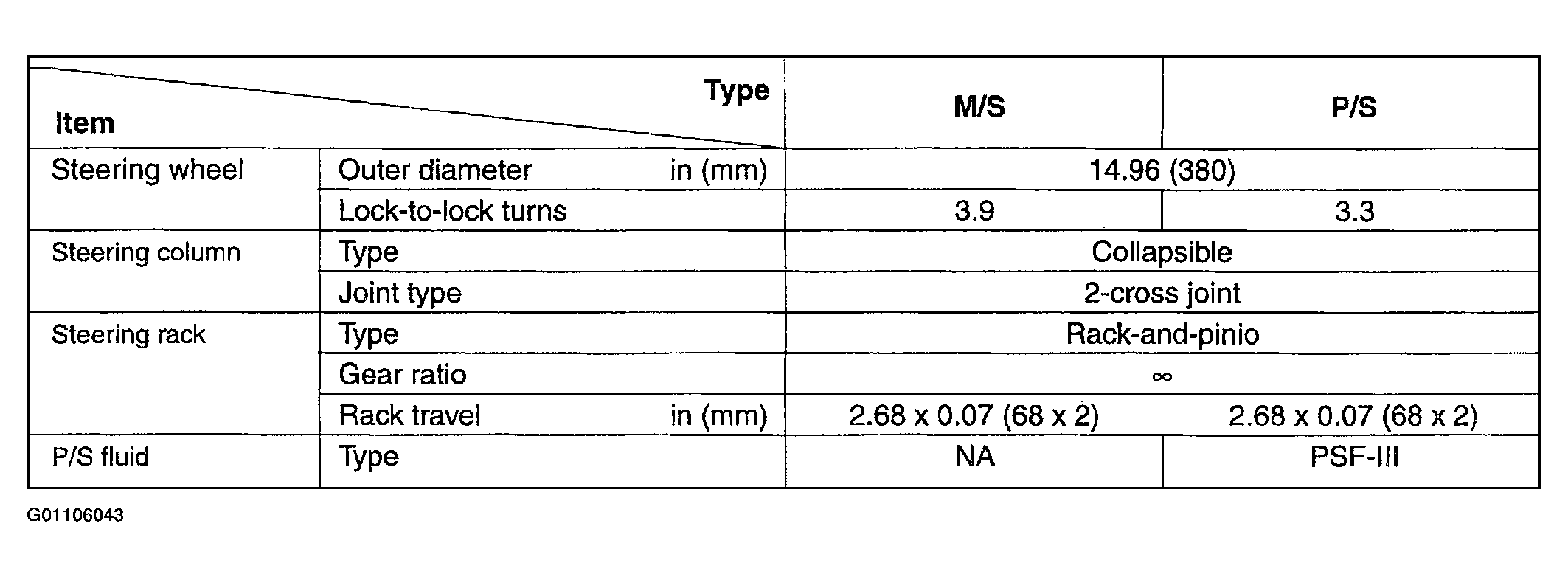

Fig 1: Steering System Specifications

G01106043

Courtesy of KIA MOTORS AMERICA, INC.
