Connecting Rod & Piston Assembly: Components

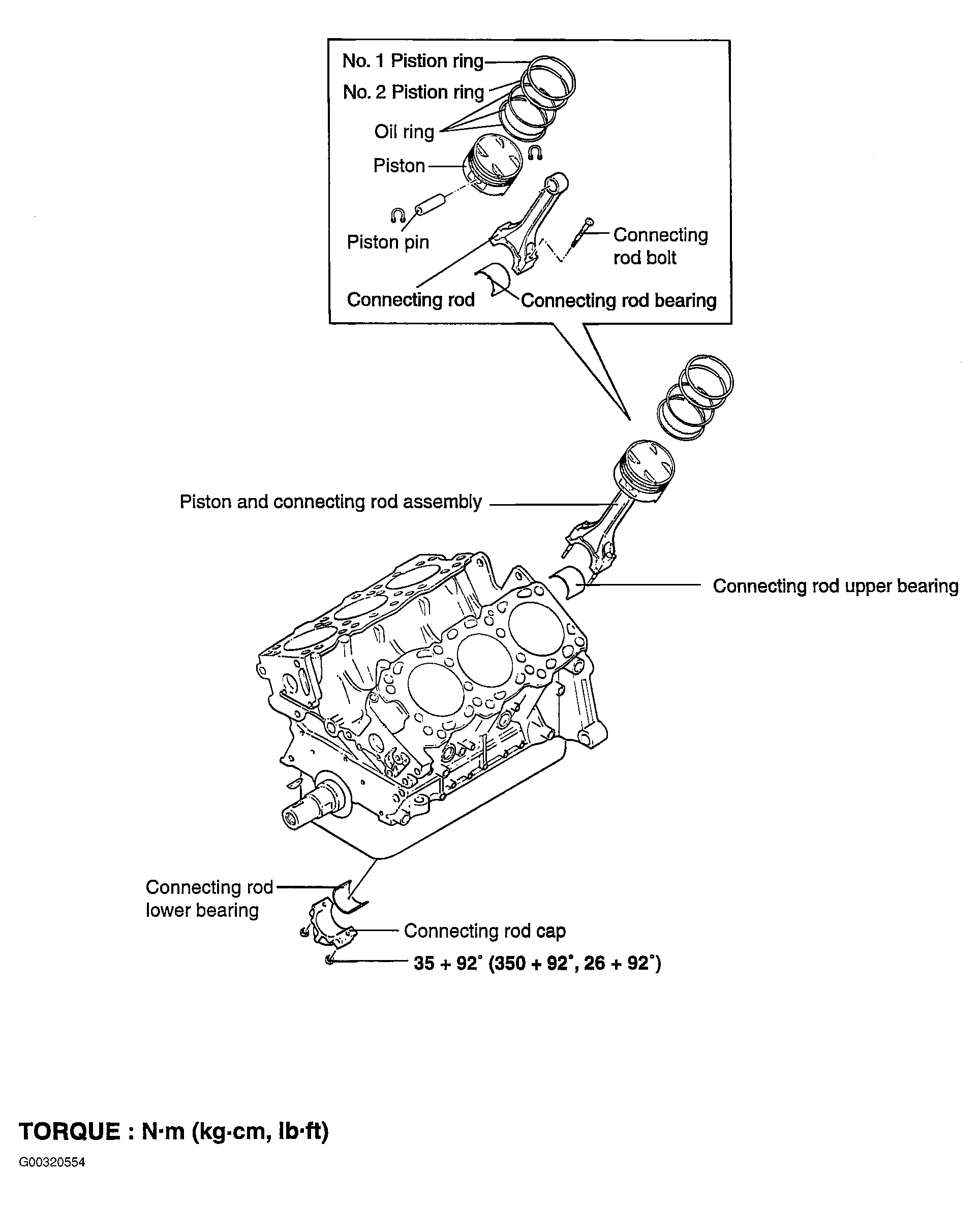

Fig 1: Exploded View Of Connecting Rod & Piston Assembly
G00320554Courtesy of KIA MOTORS AMERICA, INC.
