Engine Control Module

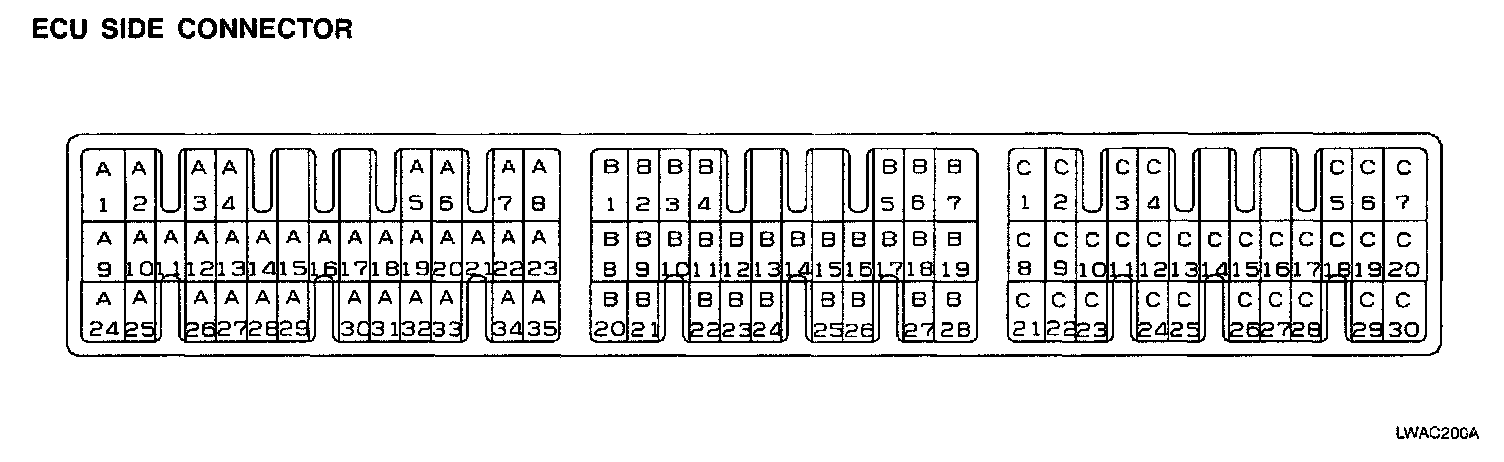

ECU Side Connector

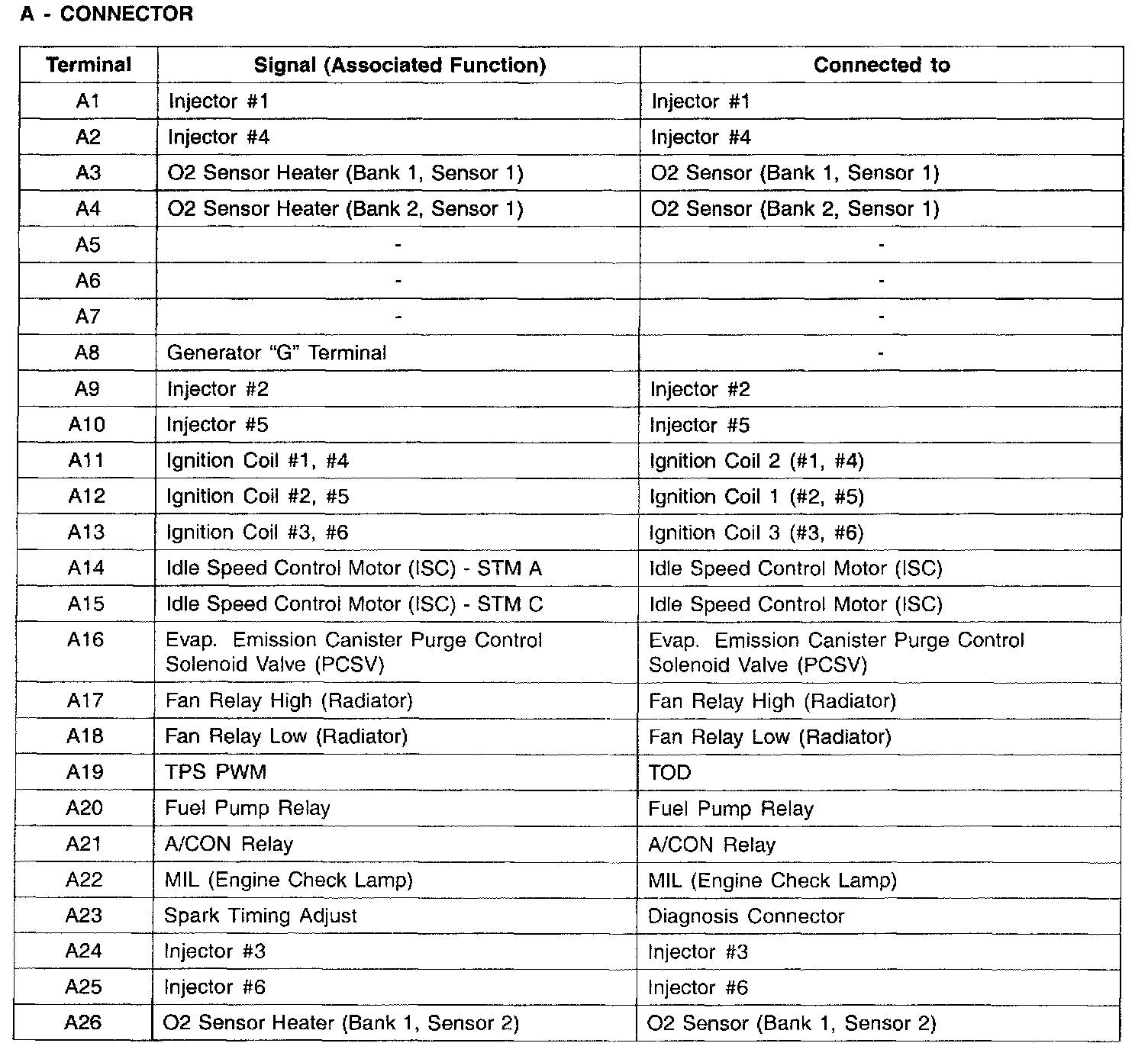

Connector A - (A1-A26):

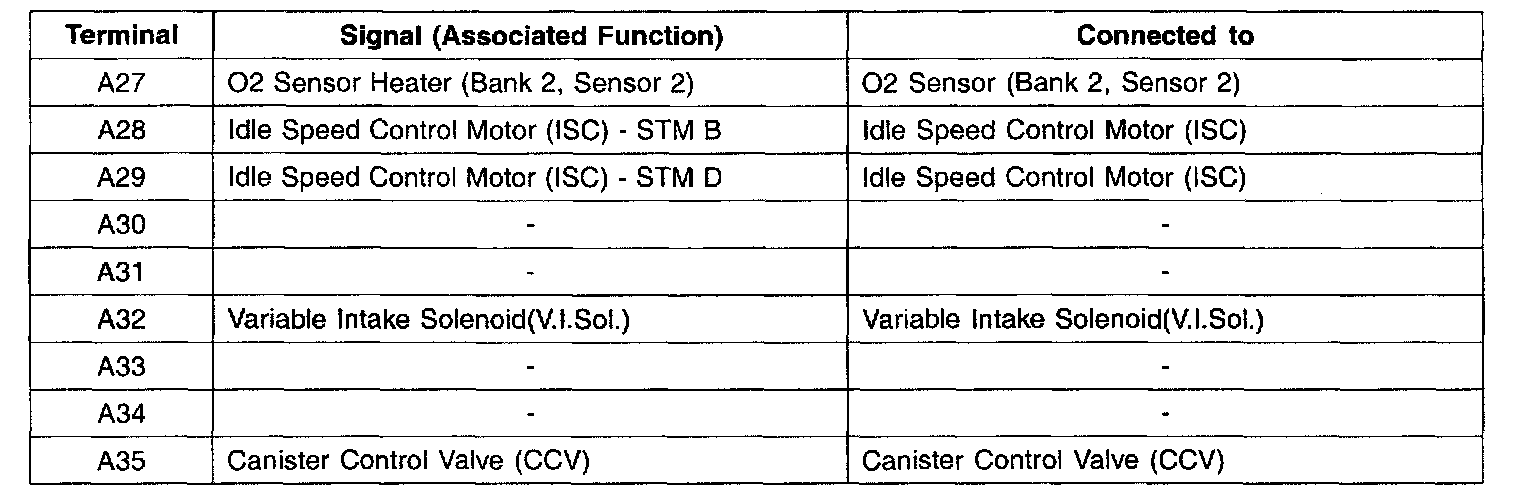

Connector A - (A27-A35):

A - Connector

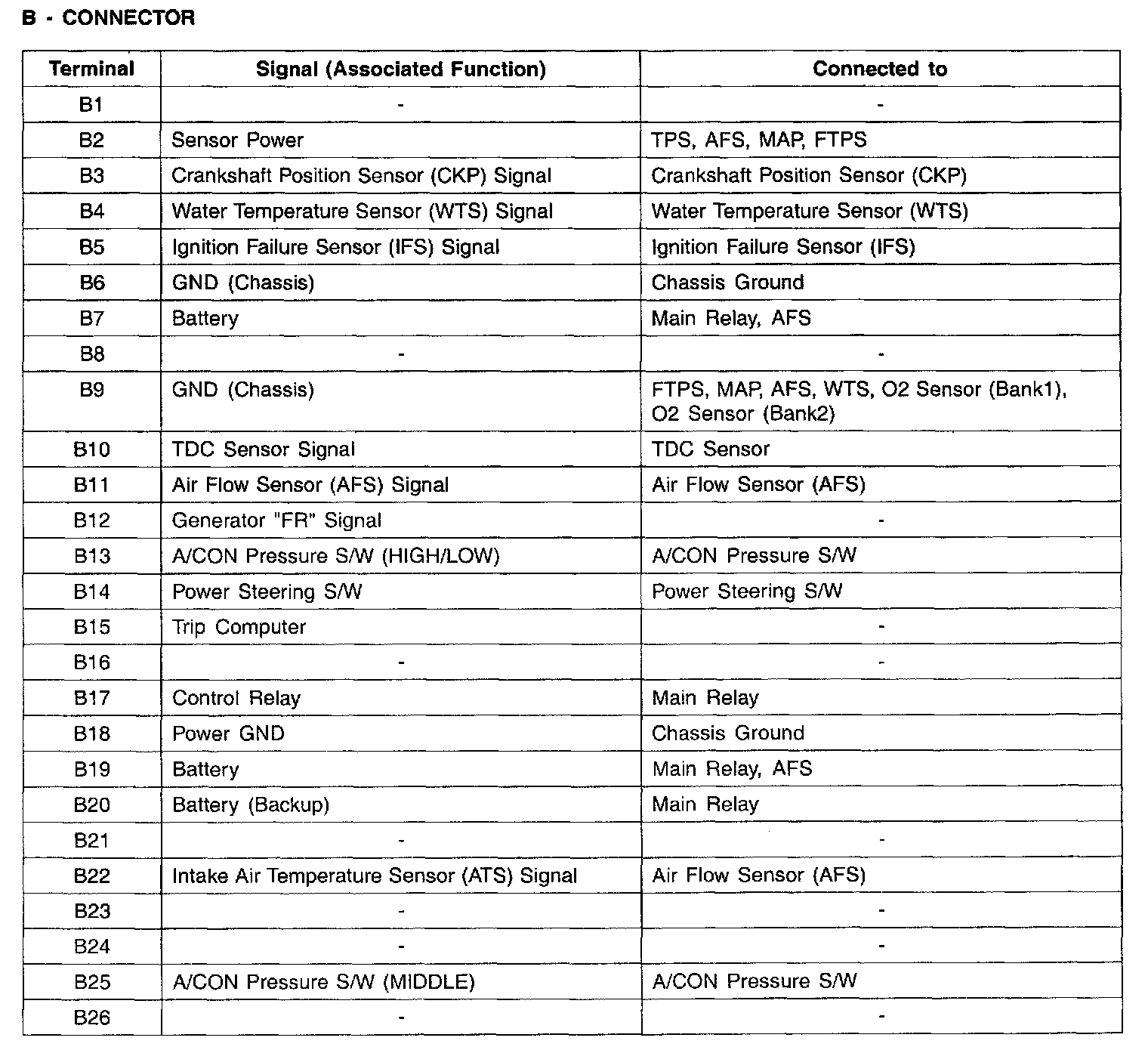

Connector B - (B1-B26):

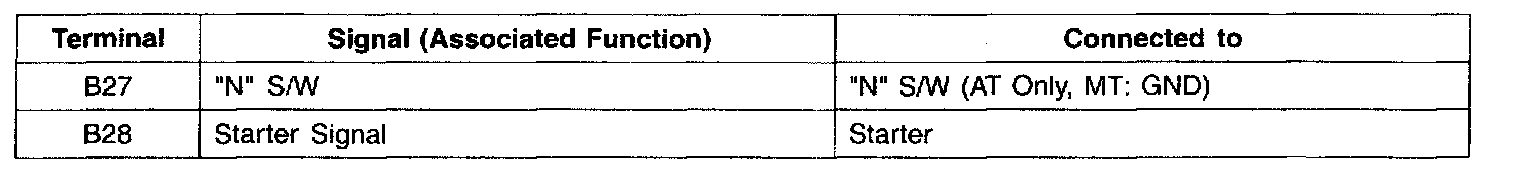

Connector B - (B27-B28):

B - Connector

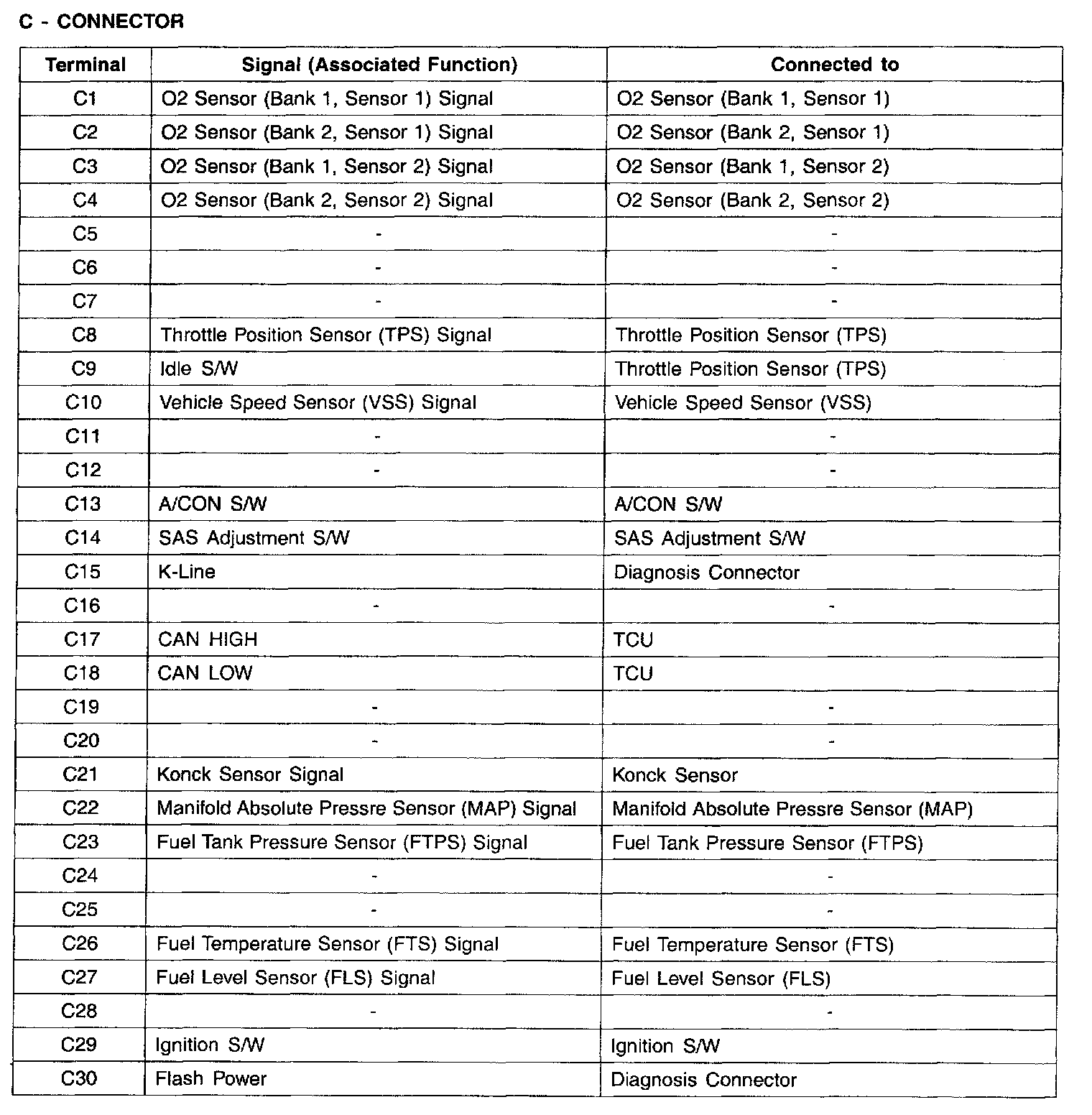

Connector C - (C1-C30):

C - Connector
